PowerShell – SSRS Inventory – Automatic – Excel File – EMAIL

Posted on February 27, 2014 by Prashanth Jayaram

Inventory is a vital information,whether you’re a consultant or an in-house DBA, you need to have a reliable inventory of the servers you manage.

Download the file and save as SSRSInventory.PS1.

It has five mandatory parameters

InputFileName – Text File contains a list of SQL Servers -C:\Server.txt(Example)
DirectoryToSave – Folder where you want to store the file
ToID – to email Address
FromID – From Email Address
SMTP – SMTP Adress

Pre-requisites are –

Windows PowerShell 2.0 must be installed
Permission to access all SQL instances
Permission to create a outputFile

Windows PowerShell 2.0 is installed by default on newer versions of the Windows operating systems.You must install a SQL Server feature that includes the SQL Server PowerShell (SQLPS) module and client libraries. The easiest way to do this is by installing SQL Server Management Studio, which includes the PowerShell feature and client libraries automatically. The SQL Server PowerShell (SQLPS) module contains the PowerShell providers and cmdlets for all SQL Server features.

Note: The code is tested on PowerShell 2.0 with 2005,2008, 2008 R2 SQL SSRS instances

The Excel sheet comprises following columns

Name
Domain Name
OS
DatabaseServerName
CPU
TotalRAM
FreeRAM
UsedRAM
Version
DatabaseName
ExtendedProtectionLevel
ExtendedProtectionScenario
InstanceName
SenderEmailAddress
SendUsingSMTPServer
ServiceName
SMTPServer
VirtualDirectoryReportManager
VirtualDirectoryReportServer
IsInitialized
IsReportManagerEnabled
IsSharePointIntegrated
IsWebServiceEnabled
IsWindowsServiceEnabled
MachineAccountIdentity
PathName
SecureConnectionLevel
WindowsServiceIdentityActual
WindowsServiceIdentityConfigured
ConnectionPoolSize
DatabaseQueryTimeout
Uptime
IPAddress

Function Call:-

PS C:\Blog> .\SSRSInventory.ps1 -InputFileName C:\server.txt -DirectoryToSaveTo C:\ -To pram@abc.com -From pram@abc.com -SMTP mail.abc.com

Download :- SSRSInventory

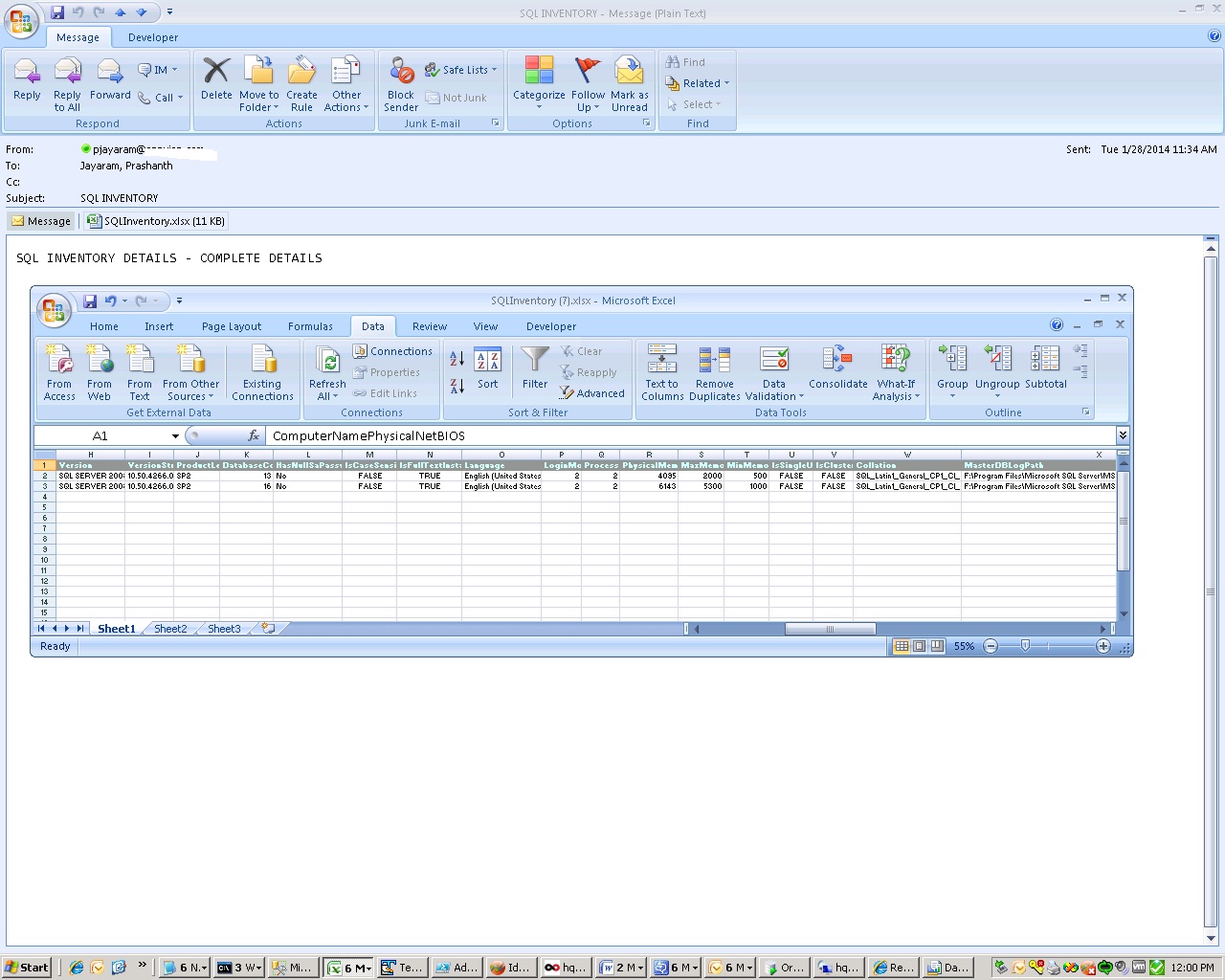

Output:-

Posted in PowerShell, SQL, SSRS | Tagged Inventory, MSReportServer_ConfigurationSetting, Querying Reporting Metaschema, SSRS Inventory | Leave a comment

PowerShell – Export SQL Data to Excel with Powershell

Posted on February 24, 2014 by Prashanth Jayaram

SQL Server Export to Excel with Powershell is very useful for all sorts of activities – ETL and reporting are some examples.
This post is to Export SQL Data to Excel with Powershell.In this example, a connection is made to a SQL server Instance using DSN and then SQL output is written to a Excel worksheet.
You can also do a Auto refresh of data, Open the Excel Sheet, Go to Data and click Refresh any new or updated data will reflected in the excel sheet.Pre-requisites

PowerShell 2.0
Excel Component
Setup ODBC – User DSN – SQL Server Driver – Source Server

Code:- Save the below content in a file ExportSQLDataToExcel.PS1 and Edit the first set of required parameters

or Download ExportSQLDataToExcel

#Just change the below parameters

$DirectoryToSaveTo='C:\'
$Filename='DatabaseDetails'
$From ='pjayaram@test.com'
$to = 'pjayaram@test.com'
$SMTP= 'abcd.defg.com'
$DSN='<DSNName>'

# constants.
$xlCenter=-4108
$xlTop=-4160
$xlOpenXMLWorkbook=[int]51
# and we put the queries in here

# You can replace the SQL

$SQL=@"
USE MASTER
SELECT @@SERVERNAME Servername,
CONVERT(VARCHAR(25), DB.name) AS dbName,
CONVERT(VARCHAR(10), DATABASEPROPERTYEX(name, 'status')) AS [Status],
(SELECT COUNT(1) FROM sysaltfiles WHERE DB_NAME(dbid) = DB.name AND groupid !=0 ) AS DataFiles,
(SELECT SUM((size*8)/1024) FROM sysaltfiles WHERE DB_NAME(dbid) = DB.name AND groupid!=0) AS [Data MB],
(SELECT COUNT(1) FROM sysaltfiles WHERE DB_NAME(dbid) = DB.name AND groupid=0) AS LogFiles,
(SELECT SUM((size*8)/1024) FROM sysaltfiles WHERE DB_NAME(dbid) = DB.name AND groupid=0) AS [Log MB],
(SELECT SUM((size*8)/1024) FROM sysaltfiles WHERE DB_NAME(dbid) = DB.name AND groupid!=0)+(SELECT SUM((size*8)/1024) FROM sysaltfiles WHERE DB_NAME(dbid) = DB.name AND groupid=0) TotalSizeMB,
convert(sysname,DatabasePropertyEx(name,'Updateability'))  Updateability,
convert(sysname,DatabasePropertyEx(name,'UserAccess')) UserAccess ,
convert(sysname,DatabasePropertyEx(name,'Recovery')) RecoveryModel ,
convert(sysname,DatabasePropertyEx(name,'Version')) Version ,
CASE cmptlevel
WHEN 60 THEN '60 (SQL Server 6.0)'
WHEN 65 THEN '65 (SQL Server 6.5)'
WHEN 70 THEN '70 (SQL Server 7.0)'
WHEN 80 THEN '80 (SQL Server 2000)'
WHEN 90 THEN '90 (SQL Server 2005)'
WHEN 100 THEN '100 (SQL Server 2008)'
END AS [compatibility level],
CONVERT(VARCHAR(20), crdate, 103) + ' ' + CONVERT(VARCHAR(20), crdate, 108) AS [Creation date],
ISNULL((SELECT TOP 1
CASE TYPE WHEN 'D' THEN 'Full' WHEN 'I' THEN 'Differential' WHEN 'L' THEN 'Transaction log' END + ' – ' +
LTRIM(ISNULL(STR(ABS(DATEDIFF(DAY, GETDATE(),Backup_finish_date))) + ' days ago', 'NEVER')) + ' – ' +
CONVERT(VARCHAR(20), backup_start_date, 103) + ' ' + CONVERT(VARCHAR(20), backup_start_date, 108) + ' – ' +
CONVERT(VARCHAR(20), backup_finish_date, 103) + ' ' + CONVERT(VARCHAR(20), backup_finish_date, 108) +
' (' + CAST(DATEDIFF(second, BK.backup_start_date,
BK.backup_finish_date) AS VARCHAR(4)) + ' '+ 'seconds)'
FROM msdb.dbo.backupset BK WHERE BK.database_name = DB.name ORDER BY backup_set_id DESC),'-') AS [Last backup]
FROM sysdatabases DB
ORDER BY dbName, [Last backup] DESC, NAME
"@

#Create a Excel file to save the data
# if the directory doesn't exist, then create it

if (!(Test-Path -path "$DirectoryToSave")) #create it if not existing
  {
  New-Item "$DirectoryToSave" -type directory | out-null
  }

$excel = New-Object -Com Excel.Application #open a new instance of Excel
$excel.Visible = $True #make it visible (for debugging more than anything)
$wb = $Excel.Workbooks.Add() #create a workbook
$currentWorksheet=1 #there are three open worksheets you can fill up
      if ($currentWorksheet-lt 4)
      {
        $ws = $wb.Worksheets.Item($currentWorksheet)
      }
      else
      {
        $ws = $wb.Worksheets.Add()
      } #add if it doesn't exist
      $currentWorksheet += 1 #keep a tally

  # You can refresh it

      $qt = $ws.QueryTables.Add("ODBC;DSN=$DSN", $ws.Range("A1"), $SQL)
      # and execute it
      if ($qt.Refresh()) #if the routine works OK
            {
            $ws.Activate()
            $ws.Select()
            $excel.Rows.Item(1).HorizontalAlignment = $xlCenter
            $excel.Rows.Item(1).VerticalAlignment = $xlTop
            $excel.Rows.Item("1:1").Font.Name = "Calibri"
            $excel.Rows.Item("1:1").Font.Size = 11
            $excel.Rows.Item("1:1").Font.Bold = $true
            $Excel.Columns.Item(1).Font.Bold = $true
            }

$filename = "$DirectoryToSaveTo$filename.xlsx" #save it according to its title
if (test-path $filename ) { rm $filename } #delete the file if it already exists
$wb.SaveAs($filename,  $xlOpenXMLWorkbook) #save as an XML Workbook (xslx)
$wb.Saved = $True #flag it as being saved
$wb.Close() #close the document
$Excel.Quit() #and the instance of Excel
$wb = $Null #set all variables that point to Excel objects to null
$ws = $Null #makes sure Excel deflates
$Excel=$Null #let the air out

#Function to send email with an attachment

Function sendEmail([string]$emailFrom, [string]$emailTo, [string]$subject,[string]$body,[string]$smtpServer,[string]$filePath)
{
#initate message
$email = New-Object System.Net.Mail.MailMessage
$email.From = $emailFrom
$email.To.Add($emailTo)
$email.Subject = $subject
$email.Body = $body
# initiate email attachment
$emailAttach = New-Object System.Net.Mail.Attachment $filePath
$email.Attachments.Add($emailAttach)
#initiate sending email
$smtp = new-object Net.Mail.SmtpClient($smtpServer)
$smtp.Send($email)
}

#Call Function
sendEmail -emailFrom $from -emailTo $to  -subject "Database Details" -body "Database Information" -smtpServer $SMTP -filePath $filename

##################################################################

Output:-
For Testing, You can add a test database in the source server and follow the steps by opening Excel sheet. After refresh you can see the newly added database will be reflected in the worksheet.

Reference:-

https://www.simple-talk.com/content/article.aspx?article=1431

http://www.sqlserver-dba.com/2013/05/sql-server-export-to-excel-with-powershell.html

Posted in T-SQL | Tagged Excel Application, Excel Attachment, Export SQLData, sendEmail, Test-Path | 5 Comments

PowerShellGUI Tools – Disk,Memory and Process – Modules

Posted on February 20, 2014 by Prashanth Jayaram

I’ve created a script which gives details of Disk, Memory and Process and its represented graphically.

Here, the scripts are enclosed in module. At its simplest, a module is just a PowerShell script, contained in a file with a .PSM1 extension

A module is some chunk of code that you can import into PowerShell. Once imported, any cmdlets, scripts, or providers can be accessed.

Installation of a module is now very simple. download and save the file c:\PowerShellGUI.psm1

This PowerShellGUI module consists of

Get-DiskSpaceGUI
Get-MemoryGUI
Get-ProcessGUI

Now we just need to import our module. The Scope is limited to session. If you want to load automatically then you need to create Profile (http://technet.microsoft.com/en-us/library/ff461033.aspx)

You can save the file in a default module path that can be identified using environmental variable.

PS:\>$ENV:PSMODULEPATH

There are many ways to load a module. The preferred way is to create folder and save the Module in that folder

To import and loading a module as follows.

Download the module code
Create a folder PowerShellGUI (Same name as that of a Module name) file at any of the below location %windir%\System32\WindowsPowerShell\v1.0\Modules OR %UserProfile%\Documents\WindowsPowerShell\Modules (preferred)
Save the PowerShellGUI.psm1 %UserProfile%\Documents\WindowsPowerShell\Modules\PowerShellGUI\ (preferred)
Import-Module PowershellGUI
This will import the module and functions into powershell
- Get-Module -ListAvailable
This will list down all available modules in powershell
- Get-Command -Module PowerShellGUI
Once you are done with step 1, 2 and 3 open a powershell window and run below commands.
PS:\>Import-Module -Name PowershellGUI
This will import the module and functions into powershell
PS:\>Get-Module -ListAvailable
This will list down all available modules in powershell
Get-Command -Module PowerShellGUI

Save the module to C:\PowershellGUI.psm1

PS:\> Import-Module -Name C:\PowerShellGUI.psm1
PS:\>Get-Module PowerShellGUI

Download the code PowerShellGUI.PSM1 from the URL

PS:\>Get-Command -Module PowershellGUI

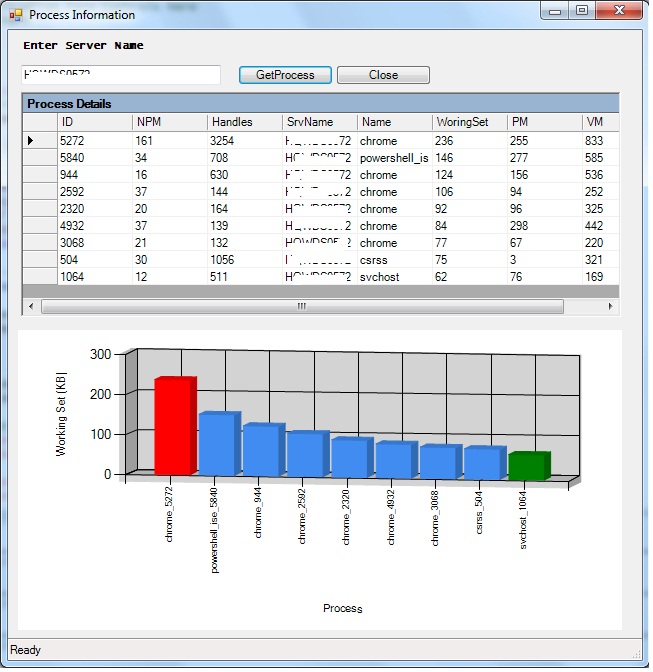

Ouptut:-

Remove Module:-

PS:\> Remove-Module -Name PowershellGUI

Copy and paste the below content in C:\PowerShellGUI.psm1

#########################################################################################################

Function Get-DiskSpaceGUI
{
#========================================================================
# Generated On: 01/31/2014
# Generated By: Prashanth Jayaram
# Version : 1.1
# Change Desc : Tab Index fix and column names are changed, Form Size correction , Accept default machine name
#========================================================================

function OnApplicationLoad {

if([Reflection.Assembly]::LoadWithPartialName(“System.Windows.Forms.DataVisualization”) -eq $null)
{
#Microsoft Chart Controls are not installed
[void][reflection.assembly]::Load(“System.Windows.Forms, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089”)
[void][System.Windows.Forms.MessageBox]::Show(“Microsoft Chart Controls for Microsoft .NET 3.5 Framework is required”,”Microsoft Chart Controls Required”)
#Open the URL
[System.Diagnostics.Process]::Start(“http://www.microsoft.com/downloads/en/details.aspx?familyid=130F7986-BF49-4FE5-9CA8-910AE6EA442C&displaylang=en”);
return $false
}

return $true #return true for success or false for failure
}

function OnApplicationExit {
#Note: This function is not called in Projects
#Note: This function runs after the form is closed
#TODO: Add custom code to clean up and unload snapins when the application exits

$script:ExitCode = 0 #Set the exit code for the Packager
}

#endregion Application Functions

#———————————————-
# Generated Form Function
#———————————————-
function Call-SystemInformation_pff {

#———————————————-
#region Import the Assemblies
#———————————————-
[void][reflection.assembly]::Load(“System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089”)
[void][reflection.assembly]::Load(“System.Windows.Forms, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089”)
[void][reflection.assembly]::Load(“System.Data, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089”)
[void][reflection.assembly]::Load(“System.Drawing, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a”)
[void][reflection.assembly]::Load(“mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089”)
[void][reflection.assembly]::Load(“System.Windows.Forms.DataVisualization, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35”)
#endregion Import Assemblies

#———————————————-
#region Generated Form Objects
#———————————————-
[System.Windows.Forms.Application]::EnableVisualStyles()
$formDiskSpacePieChart = New-Object System.Windows.Forms.Form
$dataGrid1 = New-Object System.Windows.Forms.DataGrid
$chart1 = New-Object System.Windows.Forms.DataVisualization.Charting.Chart
$InitialFormWindowState = New-Object System.Windows.Forms.FormWindowState
$btnRefresh = New-Object System.Windows.Forms.Button
$btngetdata=New-Object System.Windows.Forms.Button
$rtbPerfData = New-Object System.Windows.Forms.RichTextBox
$lblServicePack = New-Object System.Windows.Forms.Label
$lblDBName= New-Object System.Windows.Forms.Label
$lblOS = New-Object System.Windows.Forms.Label
$statusBar1 = New-Object System.Windows.Forms.StatusBar
$btnClose = New-Object System.Windows.Forms.Button
$InitialFormWindowState = New-Object System.Windows.Forms.FormWindowState
$txtComputerName = New-Object System.Windows.Forms.TextBox
$dataGrid1 = New-Object System.Windows.Forms.DataGrid

function Load-Chart
{
Param( #$XPoints, $YPoints, $XTitle, $YTitle, $Title, $ChartStyle)
[Parameter(Position=1,Mandatory=$true)]
[System.Windows.Forms.DataVisualization.Charting.Chart]$ChartControl
,
[Parameter(Position=2,Mandatory=$true)]
$XPoints
,
[Parameter(Position=3,Mandatory=$true)]
$YPoints
,
[Parameter(Position=4,Mandatory=$false)]
[string]$XTitle
,
[Parameter(Position=5,Mandatory=$false)]
[string]$YTitle
,
[Parameter(Position=6,Mandatory=$false)]
[string]$Title
,
[Parameter(Position=7,Mandatory=$false)]
[System.Windows.Forms.DataVisualization.Charting.SeriesChartType]$ChartType
,
[Parameter(Position=8,Mandatory=$false)]
$SeriesIndex = 0
,
[Parameter(Position=9,Mandatory=$false)]
$TitleIndex = 0,
[switch]$Append)

$ChartAreaIndex = 0
if($Append)
{
$name = “ChartArea ” + ($ChartControl.ChartAreas.Count + 1).ToString();
$ChartArea = $ChartControl.ChartAreas.Add($name)
$ChartAreaIndex = $ChartControl.ChartAreas.Count – 1

$name = “Series ” + ($ChartControl.Series.Count + 1).ToString();
$Series = $ChartControl.Series.Add($name)
$SeriesIndex = $ChartControl.Series.Count – 1

$Series.ChartArea = $ChartArea.Name

if($Title)
{
$name = “Title ” + ($ChartControl.Titles.Count + 1).ToString();
$TitleObj = $ChartControl.Titles.Add($name)
$TitleIndex = $ChartControl.Titles.Count – 1
$TitleObj.DockedToChartArea = $ChartArea.Name
$TitleObj.IsDockedInsideChartArea = $false
}
}
else
{
if($ChartControl.ChartAreas.Count -eq 0)
{
$name = “ChartArea ” + ($ChartControl.ChartAreas.Count + 1).ToString();
[void]$ChartControl.ChartAreas.Add($name)
$ChartAreaIndex = $ChartControl.ChartAreas.Count – 1
}

if($ChartControl.Series.Count -eq 0)
{
$name = “Series ” + ($ChartControl.Series.Count + 1).ToString();
$Series = $ChartControl.Series.Add($name)
$SeriesIndex = $ChartControl.Series.Count – 1
$Series.ChartArea = $ChartControl.ChartAreas[0].Name
}
}

$Series = $ChartControl.Series[$SeriesIndex]
$ChartArea = $ChartControl.ChartAreas[$Series.ChartArea]

$Series.Points.Clear()

if($Title)
{
if($ChartControl.Titles.Count -eq 0)
{
$name = “Title ” + ($ChartControl.Titles.Count + 1).ToString();
[void]$ChartControl.Titles.Add($name)
$TitleIndex = $ChartControl.Titles.Count – 1
$TitleObj.DockedToChartArea = $ChartArea.Name
$TitleObj.IsDockedInsideChartArea = $false
}

$ChartControl.Titles[$TitleIndex].Text = $Title
}

if($ChartType)
{
$Series.ChartType = $ChartType
}

if($XTitle)
{
$ChartArea.AxisX.Title = $XTitle
}

if($YTitle)
{
$ChartArea.AxisY.Title = $YTitle
}

if($XPoints -isnot [Array] -or $XPoints -isnot [System.Collections.IEnumerable])
{
$array = New-Object System.Collections.ArrayList
$array.Add($XPoints)
$XPoints = $array
}

if($YPoints -isnot [Array] -or $YPoints -isnot [System.Collections.IEnumerable])
{
$array = New-Object System.Collections.ArrayList
$array.Add($YPoints)
$YPoints = $array
}

$Series.Points.DataBindXY($XPoints, $YPoints)

}

function Clear-Chart
{
Param (
[Parameter(Position=1,Mandatory=$true)]
[System.Windows.Forms.DataVisualization.Charting.Chart]$ChartControl
,
[Parameter(Position=2, Mandatory=$false)]
[Switch]$LeaveSingleChart
)

$count = 0
if($LeaveSingleChart)
{
$count = 1
}

while($ChartControl.Series.Count -gt $count)
{
$ChartControl.Series.RemoveAt($ChartControl.Series.Count – 1)
}

while($ChartControl.ChartAreas.Count -gt $count)
{
$ChartControl.ChartAreas.RemoveAt($ChartControl.ChartAreas.Count – 1)
}

while($ChartControl.Titles.Count -gt $count)
{
$ChartControl.Titles.RemoveAt($ChartControl.Titles.Count – 1)
}

if($ChartControl.Series.Count -gt 0)
{
$ChartControl.Series[0].Points.Clear()
}
}
#endregion

<#
$FormEvent_Load={
#TODO: Initialize Form Controls here
Load-PieChart
}
#>

function Load-PieChart
{
param(
[string[]]$servers = “$ENV:COMPUTERNAME”
)
foreach ($server in $servers) {
#Get Disk space using WMI and make sure it is an array
$Disks = @(Get-WMIObject -Namespace “root\cimv2” -class Win32_LogicalDisk -Impersonation 3 -ComputerName $server -filter “DriveType=3” )

#Remove all the current charts
Clear-Chart $chart1

#Loop through each drive
foreach($disk in $Disks)
{
$UsedSpace =(($disk.size – $disk.freespace)/1gb)
$FreeSpace = ($disk.freespace/1gb)

#Load a Chart for each Drive
Load-Chart $chart1 -XPoints (“Used ({0:N1} GB)” -f $UsedSpace), (“Free Space ({0:N1} GB)” -f $FreeSpace) -YPoints $UsedSpace, $FreeSpace -ChartType “Bar” -Title (“Volume: {0} ({1:N1} GB)” -f $disk.deviceID, ($disk.size/1gb) ) -Append
}

#Set Custom Style
foreach ($Series in $chart1.Series)
{
$Series.CustomProperties = “PieDrawingStyle=Concave”
}
}
}

function Get-DiskDetails
{
param(
[string[]]$ComputerName = $env:COMPUTERNAME
)
$Object =@()
$array = New-Object System.Collections.ArrayList
foreach ($Computer in $ComputerName) {
if(Test-Connection -ComputerName $Computer -Count 1 -ea 0) {
Write-Verbose “$Computer online”
$D=Get-WmiObject win32_logicalDisk -ComputerName $Computer |where {$_.DriveType -eq 3}|select-object DeviceID, VolumeName,FreeSpace,Size
foreach($disk in $D)
{
$TotalSize = $Disk.Size /1Gb -as [int]
$InUseSize = ($Disk.Size /1Gb -as [int]) – ($Disk.Freespace / 1Gb -as [int])
$FreeSpaceGB = $Disk.Freespace / 1Gb -as [int]
$FreeSpacePer = ((($Disk.Freespace /1Gb -as [float]) / ($Disk.Size / 1Gb -as [float]))*100) -as [int]

$Object += New-Object PSObject -Property @{
Name= $Computer;
Drive= $Disk.DeviceID;
Label=$Disk.VolumeName;
SizeGB=$TotalSize;
UseGB=$InUseSize;
FreeGB=$FreeSpaceGB;
‘% Free’ =$FreeSpacePer;
}
}
}
}

$array.AddRange($Object)
$dataGrid1.DataSource = $array

}

$GetData={
if ($txtComputerName.text -eq ”)
{
$txtComputerName.text =$env:COMPUTERNAME
}
$statusBar1.text=”Getting Disk Space Details Data..please wait”
if(Test-Connection -ComputerName $txtComputerName.text -Count 1 -ea 0) {
$data=Get-DiskDetails -ComputerName $txtComputerName.text | Out-String
Load-PieChart -servers $txtComputerName.text
}
else
{
[Windows.Forms.MessageBox]::Show(“Not able connect to the server”, [Windows.Forms.MessageBoxIcon]::Information)
}
#$rtbPerfData.text=$data.Trim()
$errorActionPreference=”Continue”
$statusBar1.Text=”Ready”

}

$Close={
$formDiskSpacePieChart.close()

}
# –End User Generated Script–
#———————————————-
# Generated Events
#———————————————-

$Form_StateCorrection_Load=
{
#Correct the initial state of the form to prevent the .Net maximized form issue
$formDiskSpacePieChart.WindowState = $InitialFormWindowState
}

#———————————————-
#region Generated Form Code
#———————————————-
#
# formDiskSpacePieChart
#
$formDiskSpacePieChart.Controls.Add($buttonSave)
$formDiskSpacePieChart.Controls.Add($chart1)
$formDiskSpacePieChart.ClientSize = New-Object System.Drawing.Size(513,540)
$formDiskSpacePieChart.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$formDiskSpacePieChart.MinimumSize = New-Object System.Drawing.Size(300,300)
$formDiskSpacePieChart.Name = “formDiskSpacePieChart”
$formDiskSpacePieChart.Text = “Disk Space Pie Chart”
$formDiskSpacePieChart.Controls.Add($btnRefresh)
$formDiskSpacePieChart.Controls.Add($lblServicePack)
$formDiskSpacePieChart.Controls.Add($lblOS)
$formDiskSpacePieChart.Controls.Add($lblDBName)
$formDiskSpacePieChart.Controls.Add($statusBar1)
$formDiskSpacePieChart.Controls.Add($btnClose)
$formDiskSpacePieChart.Controls.Add($txtComputerName)
$formDiskSpacePieChart.ClientSize = New-Object System.Drawing.Size(630,600)
$formDiskSpacePieChart.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$formDiskSpacePieChart.Name = “form1”
$formDiskSpacePieChart.Text = “Disk Space Usage Information”
$formDiskSpacePieChart.add_Load($PopulateList)
$formDiskSpacePieChart.add_Load($FormEvent_Load)

$System_Drawing_Size = New-Object System.Drawing.Size
$System_Drawing_Size.Width = 600
$System_Drawing_Size.Height = 125
$dataGrid1.Size = $System_Drawing_Size
$dataGrid1.DataBindings.DefaultDataSourceUpdateMode = 0
$dataGrid1.HeaderForeColor = [System.Drawing.Color]::FromArgb(255,0,0,0)
$dataGrid1.Name = “dataGrid1”
$dataGrid1.DataMember = “”
$dataGrid1.TabIndex = 0
$System_Drawing_Point = New-Object System.Drawing.Point
$System_Drawing_Point.X =13
$System_Drawing_Point.Y = 62
$dataGrid1.Location = $System_Drawing_Point

$formDiskSpacePieChart.Controls.Add($dataGrid1)
$dataGrid1.CaptionText=’Disk Details’

#
# btnRefresh
#
$btnRefresh.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$btnRefresh.Enabled = $TRUE
$btnRefresh.Location = New-Object System.Drawing.Point(230,35)
$btnRefresh.Name = “btnRefresh”
$btnRefresh.Size = New-Object System.Drawing.Size(95,20)
$btnRefresh.TabIndex = 2
$btnRefresh.Text = “GetDiskSpace”
$btnRefresh.UseVisualStyleBackColor = $True
$btnRefresh.add_Click($GetData)
#
#

# btnClose
#

$btnClose.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$btngetdata.Enabled = $TRUE
$btnClose.Location = New-Object System.Drawing.Point(373,35)
$btnClose.Name = “btnClose”
$btnClose.Size = New-Object System.Drawing.Size(95,20)
$btnClose.TabIndex = 3
$btnClose.Text = “Close”
$btnClose.UseVisualStyleBackColor = $True
$btnClose.add_Click($Close)
#

# lblDBName
#
$lblDBName.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$lblDBName.Font = New-Object System.Drawing.Font(“Lucida Console”,8.25,1,3,1)
$lblDBName.Location = New-Object System.Drawing.Point(13,10)
$lblDBName.Name = “lblDBName”
$lblDBName.Size = New-Object System.Drawing.Size(178,23)
$lblDBName.TabIndex = 0
$lblDBName.Text = “Enter Server Name ”
$lblDBName.Visible = $TRUE
#

#$txtComputerName.text
#txtComputerName
$txtComputerName.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$txtComputerName.Location = New-Object System.Drawing.Point(13, 35)
$txtComputerName.Name = “txtComputerName”
$txtComputerName.TabIndex = 1
$txtComputerName.Size = New-Object System.Drawing.Size(200,70)
$txtComputerName.visible=$TRUE
#
# lblServicePack
#
$lblServicePack.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$lblServicePack.Font = New-Object System.Drawing.Font(“Lucida Console”,8.25,1,3,1)
$lblServicePack.Location = New-Object System.Drawing.Point(13,100)
$lblServicePack.Name = “lblServicePack”
$lblServicePack.Size = New-Object System.Drawing.Size(278,23)
$lblServicePack.TabIndex = 0
$lblServicePack.Text = “ServicePack”
$lblServicePack.Visible = $False
#
# lblOS
#
$lblOS.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$lblOS.Font = New-Object System.Drawing.Font(“Lucida Console”,8.25,1,3,1)
$lblOS.Location = New-Object System.Drawing.Point(12,77)
$lblOS.Name = “lblOS”
$lblOS.Size = New-Object System.Drawing.Size(278,23)
$lblOS.TabIndex = 2
$lblOS.Text = “Service Information”
$lblOS.Visible = $False
#
# statusBar1
#
$statusBar1.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$statusBar1.Location = New-Object System.Drawing.Point(0,365)
$statusBar1.Name = “statusBar1”
$statusBar1.Size = New-Object System.Drawing.Size(390,22)
$statusBar1.TabIndex = 5
$statusBar1.Text = “statusBar1”

#
# chart1
#
$chart1.Anchor = [System.Windows.Forms.AnchorStyles]::Top -bor [System.Windows.Forms.AnchorStyles]::Bottom -bor [System.Windows.Forms.AnchorStyles]::Left -bor [System.Windows.Forms.AnchorStyles]::Right
$chart1.BackGradientStyle = [System.Windows.Forms.DataVisualization.Charting.GradientStyle]::TopBottom
$System_Windows_Forms_DataVisualization_Charting_ChartArea_1 = New-Object System.Windows.Forms.DataVisualization.Charting.ChartArea
$System_Windows_Forms_DataVisualization_Charting_ChartArea_1.Area3DStyle.Enable3D = $True
$System_Windows_Forms_DataVisualization_Charting_ChartArea_1.AxisX.Title = “Disk”
$System_Windows_Forms_DataVisualization_Charting_ChartArea_1.AxisY.Title = “Disk Space (MB)”
$System_Windows_Forms_DataVisualization_Charting_ChartArea_1.Name = “ChartArea1”

[void]$chart1.ChartAreas.Add($System_Windows_Forms_DataVisualization_Charting_ChartArea_1)
$chart1.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$chart1.Location = New-Object System.Drawing.Point(13,200)
$chart1.Name = “chart1”
$System_Windows_Forms_DataVisualization_Charting_Series_2 = New-Object System.Windows.Forms.DataVisualization.Charting.Series
$System_Windows_Forms_DataVisualization_Charting_Series_2.ChartArea = “ChartArea1”
$System_Windows_Forms_DataVisualization_Charting_Series_2.ChartType = [System.Windows.Forms.DataVisualization.Charting.SeriesChartType]::Pie
$System_Windows_Forms_DataVisualization_Charting_Series_2.CustomProperties = “DrawingStyle=Cylinder, PieDrawingStyle=Concave”
$System_Windows_Forms_DataVisualization_Charting_Series_2.IsVisibleInLegend = $False
$System_Windows_Forms_DataVisualization_Charting_Series_2.Legend = “Legend1”
$System_Windows_Forms_DataVisualization_Charting_Series_2.Name = “Disk Space”

[void]$chart1.Series.Add($System_Windows_Forms_DataVisualization_Charting_Series_2)
$chart1.Size = New-Object System.Drawing.Size(600,350)
$chart1.TabIndex = 0
$chart1.Text = “chart1”
$System_Windows_Forms_DataVisualization_Charting_Title_3 = New-Object System.Windows.Forms.DataVisualization.Charting.Title
$System_Windows_Forms_DataVisualization_Charting_Title_3.Alignment = [System.Drawing.ContentAlignment]::TopCenter
$System_Windows_Forms_DataVisualization_Charting_Title_3.DockedToChartArea = “ChartArea1”
$System_Windows_Forms_DataVisualization_Charting_Title_3.IsDockedInsideChartArea = $False
$System_Windows_Forms_DataVisualization_Charting_Title_3.Name = “Title1”
$System_Windows_Forms_DataVisualization_Charting_Title_3.Text = “Disk Space”

[void]$chart1.Titles.Add($System_Windows_Forms_DataVisualization_Charting_Title_3)
#

#Save the initial state of the form
$InitialFormWindowState = $formDiskSpacePieChart.WindowState
#Init the OnLoad event to correct the initial state of the form
$formDiskSpacePieChart.add_Load($Form_StateCorrection_Load)
#Show the Form
return $formDiskSpacePieChart.ShowDialog()

} #End Function

if(OnApplicationLoad -eq $true)
{
#Create the form
#Call-SystemInformation_pff | Out-Null
#Call-Disk_Space_Chart_pff | Out-Null
Call-SystemInformation_pff | Out-Null
#Perform cleanup
OnApplicationExit
}
}
Function Get-MemoryGUI
{
function OnApplicationLoad {

return $true #return true for success or false for failure
}

function OnApplicationExit {
$script:ExitCode = 0 #Set the exit code for the Packager
}

#endregion Application Functions

#———————————————-
# Generated Form Function
#———————————————-
function Call-SystemInformation_pff {

#———————————————-
#region Generated Form Objects
#———————————————-
[System.Windows.Forms.Application]::EnableVisualStyles()
$formMemoryPieChart = New-Object System.Windows.Forms.Form
$dataGrid1 = New-Object System.Windows.Forms.DataGrid
$chart1 = New-Object System.Windows.Forms.DataVisualization.Charting.Chart
$InitialFormWindowState = New-Object System.Windows.Forms.FormWindowState
$btnRefresh = New-Object System.Windows.Forms.Button
$btngetdata=New-Object System.Windows.Forms.Button
$rtbPerfData = New-Object System.Windows.Forms.RichTextBox
$lblServicePack = New-Object System.Windows.Forms.Label
$lblDBName= New-Object System.Windows.Forms.Label
$lblOS = New-Object System.Windows.Forms.Label
$statusBar1 = New-Object System.Windows.Forms.StatusBar
$btnClose = New-Object System.Windows.Forms.Button
$InitialFormWindowState = New-Object System.Windows.Forms.FormWindowState
$txtComputerName = New-Object System.Windows.Forms.TextBox
$dataGrid1 = New-Object System.Windows.Forms.DataGrid

$name = “Series ” + ($ChartControl.Series.Count + 1).ToString();
$Series = $ChartControl.Series.Add($name)
$SeriesIndex = $ChartControl.Series.Count – 1

$Series.ChartArea = $ChartArea.Name

$Series = $ChartControl.Series[$SeriesIndex]
$ChartArea = $ChartControl.ChartAreas[$Series.ChartArea]

$Series.Points.Clear()

$ChartControl.Titles[$TitleIndex].Text = $Title
}

if($ChartType)
{
$Series.ChartType = $ChartType
}

if($XTitle)
{
$ChartArea.AxisX.Title = $XTitle
}

if($YTitle)
{
$ChartArea.AxisY.Title = $YTitle
}

if($XPoints -isnot [Array] -or $XPoints -isnot [System.Collections.IEnumerable])
{
$array = New-Object System.Collections.ArrayList
$array.Add($XPoints)
$XPoints = $array
}

if($YPoints -isnot [Array] -or $YPoints -isnot [System.Collections.IEnumerable])
{
$array = New-Object System.Collections.ArrayList
$array.Add($YPoints)
$YPoints = $array
}

$Series.Points.DataBindXY($XPoints, $YPoints)

}

$count = 0
if($LeaveSingleChart)
{
$count = 1
}

while($ChartControl.Series.Count -gt $count)
{
$ChartControl.Series.RemoveAt($ChartControl.Series.Count – 1)
}

while($ChartControl.ChartAreas.Count -gt $count)
{
$ChartControl.ChartAreas.RemoveAt($ChartControl.ChartAreas.Count – 1)
}

while($ChartControl.Titles.Count -gt $count)
{
$ChartControl.Titles.RemoveAt($ChartControl.Titles.Count – 1)
}

if($ChartControl.Series.Count -gt 0)
{
$ChartControl.Series[0].Points.Clear()
}
}
#endregion

<#
$FormEvent_Load={
#TODO: Initialize Form Controls here
Load-PieChart
}
#>

function Load-PieChart
{
param(
[string[]]$servers = “$ENV:COMPUTERNAME”
)
foreach ($server in $servers) {
#Get Disk space using WMI and make sure it is an array
$Memory = @(Get-WmiObject -Class Win32_OperatingSystem -computername $servers | Select-Object Name, TotalVisibleMemorySize, FreePhysicalMemory,TotalVirtualMemorySize,FreeVirtualMemory,FreeSpaceInPagingFiles,NumberofProcesses,NumberOfUsers )

#Remove all the current charts
Clear-Chart $chart1

#Loop through each drive
foreach($m in $Memory)
{
$TotalRAM = $m.TotalVisibleMemorySize/1MB
$FreeRAM = $m.FreePhysicalMemory/1MB
$TotalVirtualMemorySize=[Math]::Round($m.TotalVirtualMemorySize/1MB, 3)
$FreeVirtualMemory=[Math]::Round($m.FreeVirtualMemory/1MB, 3)

#Load a Chart for each Drive
Load-Chart $chart1 -XPoints (“Physical Total RAM ({0:N1} GB)” -f $TotalRAM), (“Physical Free RAM ({0:N1} GB)” -f $FreeRAM) -YPoints $TotalRAM, $FreeRAM -ChartType “Bar” -Title (“Physical Memory Chart”) -Append
Load-Chart $chart1 -XPoints (“Virtual Total RAM ({0:N1} GB)” -f $TotalVirtualMemorySize), (“Virtual Free RAM ({0:N1} GB)” -f $FreeVirtualMemory) -YPoints $TotalVirtualMemorySize, $FreeVirtualMemory -ChartType “Bar” -Title (” Virtual Memory Chart”) -Append

}

#Set Custom Style
foreach ($Series in $chart1.Series)
{
$Series.CustomProperties = “PieDrawingStyle=Concave”
}
}
}

function Get-OSMemory
{
param(
[string]$Computer = “$ENV:COMPUTERNAME”
)
$script:Object =@()
$script:array = New-Object System.Collections.ArrayList
$Object =@()

if(Test-Connection -ComputerName $Computer -Count 1 -ea 0) {
$SystemInfo = Get-WmiObject -Class Win32_OperatingSystem -computername $Computer | Select-Object Name, TotalVisibleMemorySize, FreePhysicalMemory,TotalVirtualMemorySize,FreeVirtualMemory,FreeSpaceInPagingFiles,NumberofProcesses,NumberOfUsers
$TotalRAM = $SystemInfo.TotalVisibleMemorySize/1MB
$FreeRAM = $SystemInfo.FreePhysicalMemory/1MB
$UsedRAM = $TotalRAM – $FreeRAM
$RAMPercentFree = ($FreeRAM / $TotalRAM) * 100
$TotalRAM = [Math]::Round($TotalRAM, 2)
$FreeRAM = [Math]::Round($FreeRAM, 2)
$UsedRAM = [Math]::Round($UsedRAM, 2)
$RAMPercentFree = [Math]::Round($RAMPercentFree, 2)
$TotalVirtualMemorySize=[Math]::Round($SystemInfo.TotalVirtualMemorySize/1MB, 3)
$FreeVirtualMemory=[Math]::Round($SystemInfo.FreeVirtualMemory/1MB, 3)
$FreeSpaceInPagingFiles=[Math]::Round($SystemInfo.FreeSpaceInPagingFiles/1MB, 3)
$NP=$SystemInfo.NumberofProcesses
$NU=$SystemInfo.NumberOfUsers

$Object += New-Object PSObject -Property @{
ComputerName = $Computer.ToUpper();
#Architecture = $architecture;
#OperatingSystem = $OS;
TotalRAMGB = $TotalRAM;
FreeRAMGB = $FreeRAM;
UsedRAMGB = $UsedRAM;
FreeRAMPercentage =$RAMPercentFree;
TotalVMSizeGB=$TotalVirtualMemorySize;
FreeVMGB=$FreeVirtualMemory;
FreeSpaceInPageFileGB=$FreeSpaceInPagingFiles;
NoOfProcesses=$NP;
NoOfUsers=$NU
}
}

$array.AddRange($Object)
$dataGrid1.DataSource = $array

}

$GetData={
$statusBar1.text=”Getting Memory Details Data..please wait”
if ($txtComputerName.text -eq ”)
{
$txtComputerName.text=$ENV:COMPUTERNAME
}
if(Test-Connection -ComputerName $txtComputerName.text -Count 1 -ea 0) {
$data=Get-OSMemory -Computer $txtComputerName.text | Out-String
Load-PieChart -servers $txtComputerName.text
}
else
{
[Windows.Forms.MessageBox]::Show(“Unable to connect to the server!!”)
}

$errorActionPreference=”Continue”
$statusBar1.Text=”Ready”

}

$Close={
$formMemoryPieChart.close()

}
# –End User Generated Script–
#———————————————-
# Generated Events
#———————————————-

$Form_StateCorrection_Load=
{
#Correct the initial state of the form to prevent the .Net maximized form issue
$formMemoryPieChart.WindowState = $InitialFormWindowState
}

#———————————————-
#region Generated Form Code
#———————————————-
#
# formMemoryPieChart
#
$formMemoryPieChart.Controls.Add($buttonSave)
$formMemoryPieChart.Controls.Add($chart1)
$formMemoryPieChart.ClientSize = New-Object System.Drawing.Size(575,575)
$formMemoryPieChart.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$formMemoryPieChart.MinimumSize = New-Object System.Drawing.Size(300,300)
$formMemoryPieChart.Name = “formMemoryPieChart”
$formMemoryPieChart.Text = “Disk Space Pie Chart”
$formMemoryPieChart.Controls.Add($btnRefresh)
$formMemoryPieChart.Controls.Add($lblServicePack)
$formMemoryPieChart.Controls.Add($lblOS)
$formMemoryPieChart.Controls.Add($lblDBName)
$formMemoryPieChart.Controls.Add($statusBar1)
$formMemoryPieChart.Controls.Add($btnClose)
$formMemoryPieChart.Controls.Add($txtComputerName)
$formMemoryPieChart.ClientSize = New-Object System.Drawing.Size(850,600)
$formMemoryPieChart.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$formMemoryPieChart.Name = “form1”
$formMemoryPieChart.Text = “Physical and Virtual Memory Usage Information”
$formMemoryPieChart.add_Load($PopulateList)
$formMemoryPieChart.add_Load($FormEvent_Load)

$System_Drawing_Size = New-Object System.Drawing.Size
$System_Drawing_Size.Width = 825
$System_Drawing_Size.Height = 100
$dataGrid1.Size = $System_Drawing_Size
$dataGrid1.DataBindings.DefaultDataSourceUpdateMode = 0
$dataGrid1.HeaderForeColor = [System.Drawing.Color]::FromArgb(255,0,0,0)
$dataGrid1.Name = “dataGrid1”
$dataGrid1.DataMember = “”
$dataGrid1.TabIndex = 0
$System_Drawing_Point = New-Object System.Drawing.Point
$System_Drawing_Point.X =13
$System_Drawing_Point.Y = 62
$dataGrid1.Location = $System_Drawing_Point

$formMemoryPieChart.Controls.Add($dataGrid1)
$dataGrid1.CaptionText=’Physical and Virtual Memory Usage Information’

#
# btnRefresh
#
$btnRefresh.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$btnRefresh.Enabled = $TRUE
$btnRefresh.Location = New-Object System.Drawing.Point(230,35)
$btnRefresh.Name = “btnRefresh”
$btnRefresh.Size = New-Object System.Drawing.Size(95,20)
$btnRefresh.TabIndex = 2
$btnRefresh.Text = “GetMemory”
$btnRefresh.UseVisualStyleBackColor = $True
$btnRefresh.add_Click($GetData)
#
#

# btnClose
#

#$txtComputerName.text
#txtComputerName
$txtComputerName.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$txtComputerName.Location = New-Object System.Drawing.Point(13, 35)
$txtComputerName.Name = “txtComputerName”
$txtComputerName.TabIndex = 1
$txtComputerName.Size = New-Object System.Drawing.Size(200,70)
$txtComputerName.visible=$TRUE
#
# lblServicePack
#
$lblServicePack.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$lblServicePack.Font = New-Object System.Drawing.Font(“Lucida Console”,8.25,1,3,1)
$lblServicePack.Location = New-Object System.Drawing.Point(13,100)
$lblServicePack.Name = “lblServicePack”
$lblServicePack.Size = New-Object System.Drawing.Size(278,23)
# $lblServicePack.TabIndex = 0
$lblServicePack.Text = “ServicePack”
$lblServicePack.Visible = $False
#
# lblOS
#
$lblOS.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$lblOS.Font = New-Object System.Drawing.Font(“Lucida Console”,8.25,1,3,1)
$lblOS.Location = New-Object System.Drawing.Point(12,77)
$lblOS.Name = “lblOS”
$lblOS.Size = New-Object System.Drawing.Size(278,23)
# $lblOS.TabIndex = 2
$lblOS.Text = “Service Information”
$lblOS.Visible = $False
#
# statusBar1
#
$statusBar1.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$statusBar1.Location = New-Object System.Drawing.Point(0,365)
$statusBar1.Name = “statusBar1”
$statusBar1.Size = New-Object System.Drawing.Size(390,22)
$statusBar1.TabIndex = 5
$statusBar1.Text = “statusBar1”

[void]$chart1.Series.Add($System_Windows_Forms_DataVisualization_Charting_Series_2)
$chart1.Size = New-Object System.Drawing.Size(825,350)
$chart1.TabIndex = 0
$chart1.Text = “chart1”
$System_Windows_Forms_DataVisualization_Charting_Title_3 = New-Object System.Windows.Forms.DataVisualization.Charting.Title
$System_Windows_Forms_DataVisualization_Charting_Title_3.Alignment = [System.Drawing.ContentAlignment]::TopCenter
$System_Windows_Forms_DataVisualization_Charting_Title_3.DockedToChartArea = “ChartArea1”
$System_Windows_Forms_DataVisualization_Charting_Title_3.IsDockedInsideChartArea = $False
$System_Windows_Forms_DataVisualization_Charting_Title_3.Name = “Title1”
$System_Windows_Forms_DataVisualization_Charting_Title_3.Text = “Memory Area”

[void]$chart1.Titles.Add($System_Windows_Forms_DataVisualization_Charting_Title_3)
#

#Save the initial state of the form
$InitialFormWindowState = $formMemoryPieChart.WindowState
#Init the OnLoad event to correct the initial state of the form
$formMemoryPieChart.add_Load($Form_StateCorrection_Load)
#Show the Form
return $formMemoryPieChart.ShowDialog()

} #End Function

#Call OnApplicationLoad to initialize
if(OnApplicationLoad -eq $true)
{
#Create the form
Call-SystemInformation_pff | Out-Null
#Perform cleanup
OnApplicationExit
}
}

function Get-ProcessGUI
{
#========================================================================
# Generated On: 02/07/2014
# Generated By: Prashanth Jayaram
# Version : 1.1
# Description : TOP 10 Process – Memory consumption Report – 3D Graph
#========================================================================

function OnApplicationLoad {

return $true #return true for success or false for failure
}

$script:ExitCode = 0 #Set the exit code for the Packager
}

#endregion Application Functions

#———————————————-
# Generated Form Function
#———————————————-
function Call-SystemInformation_pff {

#———————————————-
#region Generated Form Objects
#———————————————-
[System.Windows.Forms.Application]::EnableVisualStyles()
$formProcessPieChart = New-Object System.Windows.Forms.Form
$dataGrid1 = New-Object System.Windows.Forms.DataGrid
$chart = New-Object System.Windows.Forms.DataVisualization.Charting.Chart
$InitialFormWindowState = New-Object System.Windows.Forms.FormWindowState
$btnRefresh = New-Object System.Windows.Forms.Button
$btnClear = New-Object System.Windows.Forms.Button
$btngetdata=New-Object System.Windows.Forms.Button
$rtbPerfData = New-Object System.Windows.Forms.RichTextBox
$lblServicePack = New-Object System.Windows.Forms.Label
$lblDBName= New-Object System.Windows.Forms.Label
$lblOS = New-Object System.Windows.Forms.Label
$statusBar1 = New-Object System.Windows.Forms.StatusBar
$btnClose = New-Object System.Windows.Forms.Button
$InitialFormWindowState = New-Object System.Windows.Forms.FormWindowState
$txtComputerName = New-Object System.Windows.Forms.TextBox
$dataGrid1 = New-Object System.Windows.Forms.DataGrid

$name = “Series ” + ($ChartControl.Series.Count + 1).ToString();
$Series = $ChartControl.Series.Add($name)
$SeriesIndex = $ChartControl.Series.Count – 1

$Series.ChartArea = $ChartArea.Name

$Series = $ChartControl.Series[$SeriesIndex]
$ChartArea = $ChartControl.ChartAreas[$Series.ChartArea]

$Series.Points.Clear()

$ChartControl.Titles[$TitleIndex].Text = $Title
}

if($ChartType)
{
$Series.ChartType = $ChartType
}

if($XTitle)
{
$ChartArea.AxisX.Title = $XTitle
}

if($YTitle)
{
$ChartArea.AxisY.Title = $YTitle
}

if($XPoints -isnot [Array] -or $XPoints -isnot [System.Collections.IEnumerable])
{
$array = New-Object System.Collections.ArrayList
$array.Add($XPoints)
$XPoints = $array
}

if($YPoints -isnot [Array] -or $YPoints -isnot [System.Collections.IEnumerable])
{
$array = New-Object System.Collections.ArrayList
$array.Add($YPoints)
$YPoints = $array
}

$Series.Points.DataBindXY($XPoints, $YPoints)

}

$count = 0
if($LeaveSingleChart)
{
$count = 1
}

while($ChartControl.Series.Count -gt $count)
{
$ChartControl.Series.RemoveAt($ChartControl.Series.Count – 1)
}

while($ChartControl.ChartAreas.Count -gt $count)
{
$ChartControl.ChartAreas.RemoveAt($ChartControl.ChartAreas.Count – 1)
}

while($ChartControl.Titles.Count -gt $count)
{
$ChartControl.Titles.RemoveAt($ChartControl.Titles.Count – 1)
}

if($ChartControl.Series.Count -gt 0)
{
$ChartControl.Series[0].Points.Clear()
}
}
#endregion

<#
$FormEvent_Load={
#TODO: Initialize Form Controls here
Load-PieChart
}
#>

Function Load-PieChart {
Param([string]$computername)
$Chart.ChartAreas.Add($ChartArea)

$process = [System.Diagnostics.Process]

$Processes = $process::GetProcesses($computername)|Sort-Object WS -Descending|select Handles,
@{Label=”NPM(K)”;Expression={[int]($_.NPM/1024)}}, `
@{Label=”PM(K)”;Expression={[int]($_.PM/1024)}}, `
@{Label=”WS”;Expression={[int]($_.WS/1024)}}, `
@{Label=”VM(M)”;Expression={[int]($_.VM/1MB)}}, `
Id, ProcessName, MachineName -first 9

$ProcNames = @(foreach($Proc in $Processes){$Proc.ProcessName+ “_”+$Proc.ID})
$WS = @(foreach($Proc in $Processes){$Proc.WS/1KB})

$Chart.Series.Add(“Data”)
$Chart.Series[“Data”].Points.DataBindXY($ProcNames, $WS)

$ChartArea.AxisX.Title = “Process”
$ChartArea.AxisY.Title = “Working Set (KB)”

# Find point with max/min values and change their colour
$maxValuePoint = $Chart.Series[“Data”].Points.FindMaxByValue()
$maxValuePoint.Color = [System.Drawing.Color]::Red

$minValuePoint = $Chart.Series[“Data”].Points.FindMinByValue()
$minValuePoint.Color = [System.Drawing.Color]::Green

# make bars into 3d cylinders
#$Chart.Series[“Data”][“DrawingStyle”] = “Cylinder”
$chartArea.Area3DStyle = New-Object System.Windows.Forms.DataVisualization.Charting.ChartArea3DStyle -Property @{Enable3D=$true; IsRightAngleAxes=$false; Rotation=10; Inclination=10;}

# display the chart on a form
$Chart.Anchor = [System.Windows.Forms.AnchorStyles]::Bottom -bor [System.Windows.Forms.AnchorStyles]::Right -bor
[System.Windows.Forms.AnchorStyles]::Top -bor [System.Windows.Forms.AnchorStyles]::Left

}

Function Get-ProcPerf {
Param([string]$computername)
$Object =@()
$array = New-Object System.Collections.ArrayList
# load the appropriate assemblies
# add data to chart
$process = [System.Diagnostics.Process]
#$process::GetProcesses($server)

$prc=$process::GetProcesses($computername)|Sort-Object WS -Descending|select Handles, `
@{Label=”NPM”;Expression={[int]($_.NPM/1024)}}, `
@{Label=”PM”;Expression={[int]($_.PM/1MB)}}, `
@{Label=”WS”;Expression={[int]($_.WS/1MB)}}, `
@{Label=”VM”;Expression={[int]($_.VM/1MB)}}, `
Id, ProcessName, MachineName -first 9

$Object =@()

foreach ($p in $prc)
{
$Object += New-Object PSObject -Property @{
Handles = $p.Handles;
NPM = $P.NPM;
PM = $P.PM;
WoringSet = $P.WS;
VM= $P.VM;
ID=$P.Id;
Name=$P.ProcessName;
SrvName=$P.MachineName

}
}

$column1 = @{expression=”MachineName”; width=20; label=”MachineName”; alignment=”left”}
$column2 = @{expression=”Handles”; width=10; label=”Handles”; alignment=”left”}
$column3 = @{expression=”NPM”; width=10; label=”NPM(K)”; alignment=”left”}
$column4 = @{expression=”PM”; width=10; label=”PM(K)”; alignment=”left”}
$column5 = @{expression=”WS”; width=10; label=”WS(K)”; alignment=”left”}
$column6 = @{expression=”VM”; width=10; label=”VM(MB)”; alignment=”left”}
$column7 = @{expression=”id”; width=10; label=”ProcessID”; alignment=”left”}
$column8 = @{expression=”Name”; width=15; label=”ProcessName”; alignment=”left”}

“#”*80
“Process Information”
“Generated $(get-date)”
“Generated from $(gc env:computername)”
“#”*80

#$Object
$Object |Format-Table $column1,$column2,$column3,$column4,$column5,$column6,$column7,$column8

$array.AddRange($Object)
$dataGrid1.DataSource = $array

}

$count = 0
if($LeaveSingleChart)
{
$count = 1
}

while($ChartControl.Series.Count -gt $count)
{
$ChartControl.Series.RemoveAt($ChartControl.Series.Count – 1)
}

while($ChartControl.ChartAreas.Count -gt $count)
{
$ChartControl.ChartAreas.RemoveAt($ChartControl.ChartAreas.Count – 1)
}

while($ChartControl.Titles.Count -gt $count)
{
$ChartControl.Titles.RemoveAt($ChartControl.Titles.Count – 1)
}

if($ChartControl.Series.Count -gt 0)
{
$ChartControl.Series[0].Points.Clear()
}
}

$cleardata={
Clear-Chart $chart

}

$GetData={
Clear-Chart $chart

if ($txtComputerName.text -eq ”)
{
$txtComputerName.text =$env:COMPUTERNAME
}
$statusBar1.text=”Getting Process information ..please wait”
if(Test-Connection -ComputerName $txtComputerName.text -Count 1 -ea 0) {
$data=Get-ProcPerf -ComputerName $txtComputerName.text | Out-String

Load-PieChart -computername $txtComputerName.text

}
else
{
[Windows.Forms.MessageBox]::Show(“Not able connect to the server”, [Windows.Forms.MessageBoxIcon]::Information)
}
#$rtbPerfData.text=$data.Trim()
$errorActionPreference=”Continue”
$statusBar1.Text=”Ready”

}

$Close={
$formProcessPieChart.close()

}
# –End User Generated Script–
#———————————————-
# Generated Events
#———————————————-

$Form_StateCorrection_Load=
{
#Correct the initial state of the form to prevent the .Net maximized form issue
$formProcessPieChart.WindowState = $InitialFormWindowState
}

#———————————————-
#region Generated Form Code
#———————————————-
#
# formProcessPieChart
#
$formProcessPieChart.Controls.Add($buttonSave)
$formProcessPieChart.Controls.Add($chart)
$formProcessPieChart.ClientSize = New-Object System.Drawing.Size(513,640)
$formProcessPieChart.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$formProcessPieChart.MinimumSize = New-Object System.Drawing.Size(300,300)
$formProcessPieChart.Name = “formProcessPieChart”
$formProcessPieChart.Text = “Disk Space Pie Chart”
$formProcessPieChart.Controls.Add($btnRefresh)
$formProcessPieChart.Controls.Add($lblServicePack)
$formProcessPieChart.Controls.Add($lblOS)
$formProcessPieChart.Controls.Add($lblDBName)
$formProcessPieChart.Controls.Add($statusBar1)
$formProcessPieChart.Controls.Add($btnClose)
$formProcessPieChart.Controls.Add($txtComputerName)
$formProcessPieChart.ClientSize = New-Object System.Drawing.Size(630,630)
$formProcessPieChart.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$formProcessPieChart.Name = “form1”
$formProcessPieChart.Text = “Process Information”
$formProcessPieChart.add_Load($PopulateList)
$formProcessPieChart.add_Load($FormEvent_Load)

$System_Drawing_Size = New-Object System.Drawing.Size
$System_Drawing_Size.Width = 600
$System_Drawing_Size.Height = 225
$dataGrid1.Size = $System_Drawing_Size
$dataGrid1.DataBindings.DefaultDataSourceUpdateMode = 0
$dataGrid1.HeaderForeColor = [System.Drawing.Color]::FromArgb(255,0,0,0)
$dataGrid1.Name = “dataGrid1”
$dataGrid1.DataMember = “”
$dataGrid1.TabIndex = 0
$System_Drawing_Point = New-Object System.Drawing.Point
$System_Drawing_Point.X =13
$System_Drawing_Point.Y = 62
$dataGrid1.Location = $System_Drawing_Point

$formProcessPieChart.Controls.Add($dataGrid1)
$dataGrid1.CaptionText=’Process Details’

#
# btnRefresh
#
$btnRefresh.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$btnRefresh.Enabled = $TRUE
$btnRefresh.Location = New-Object System.Drawing.Point(230,35)
$btnRefresh.Name = “btnRefresh”
$btnRefresh.Size = New-Object System.Drawing.Size(95,20)
$btnRefresh.TabIndex = 2
$btnRefresh.Text = “GetProcess”
$btnRefresh.UseVisualStyleBackColor = $True
$btnRefresh.add_Click($GetData)
#
#

$btnClose.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
$btngetdata.Enabled = $TRUE
$btnClose.Location = New-Object System.Drawing.Point(328,35)
$btnClose.Name = “btnClose”
$btnClose.Size = New-Object System.Drawing.Size(95,20)
$btnClose.TabIndex = 3
$btnClose.Text = “Close”
$btnClose.UseVisualStyleBackColor = $True
$btnClose.add_Click($Close)
#

$Chart.Width = 600
$Chart.Height = 300
$Chart.Left = 10
$Chart.Top = 300
$ChartArea = New-Object System.Windows.Forms.DataVisualization.Charting.ChartArea

#Save the initial state of the form
$InitialFormWindowState = $formProcessPieChart.WindowState
#Init the OnLoad event to correct the initial state of the form
$formProcessPieChart.add_Load($Form_StateCorrection_Load)
#Show the Form
return $formProcessPieChart.ShowDialog()

} #End Function

############################################################################################################

Reference:-

http://gallery.technet.microsoft.com/PowerShell-Disk-Space-cf5568f4
http://gallery.technet.microsoft.com/PowerShell-Memory-Details-b881196b
http://gallery.technet.microsoft.com/Top-10-Process-Listing-d638b0f1

The code is tested in all version of Powershell 2.0 onwards. You need to have .Net framework 3.0 or 3.5 as its pre-requisites for 3D Graph Display.

Posted in PowerShell | Tagged disk capacity, Get-Command, Import-Module, Memory Process, module, PowerShell GUI, Remove-Module, tools | Leave a comment

Top 10 Process Listing By Memory Consumption – GUI Tool

Posted on February 7, 2014 by Prashanth Jayaram

This Powershell GUI tool is used to list Top 10 memory consumption process of a given computer[local /Remote]. In the screen that follows, enter the computer name that you would like to get the top 10 processes and hit Get Process button.

This pulls out the memory consumed by top process of the given computer. If you don’t make an entry, then by default local machine details will be displayed. If you give a wrong name then message box will be pop up stating its reason for not connecting.

The code is tested in all version of Powershell. You need to have .Net framework 3.0 or 3.5 as its pre-requisites for 3D Graph Display.

you can run the downloaded file from Powershell ISE or directly in Powershell console.

Download TOP 10 Process Memory Consumption

CODE:

#========================================================================
# Generated On: 02/07/2014
# Generated By: Prashanth Jayaram
# Version     : 1.0
# Description : TOP 10 Process - Memory consumption Report - 3D Graph
#========================================================================

function OnApplicationLoad {

 if([Reflection.Assembly]::LoadWithPartialName("System.Windows.Forms.DataVisualization") -eq $null)
 {
  #Microsoft Chart Controls are not installed
  [void][reflection.assembly]::Load("System.Windows.Forms, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")
  [void][System.Windows.Forms.MessageBox]::Show("Microsoft Chart Controls for Microsoft .NET 3.5 Framework is required","Microsoft Chart Controls Required")
  #Open the URL
  [System.Diagnostics.Process]::Start("http://www.microsoft.com/downloads/en/details.aspx?familyid=130F7986-BF49-4FE5-9CA8-910AE6EA442C&displaylang=en");
  return $false
 }

 return $true #return true for success or false for failure
}

function OnApplicationExit {
 #Note: This function is not called in Projects
 #Note: This function runs after the form is closed
 #TODO: Add custom code to clean up and unload snapins when the application exits

 $script:ExitCode = 0 #Set the exit code for the Packager
}

#endregion Application Functions

#----------------------------------------------
# Generated Form Function
#----------------------------------------------
function Call-SystemInformation_pff {

 #----------------------------------------------
 #region Import the Assemblies
 #----------------------------------------------
 [void][reflection.assembly]::Load("System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")
 [void][reflection.assembly]::Load("System.Windows.Forms, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")
 [void][reflection.assembly]::Load("System.Data, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")
 [void][reflection.assembly]::Load("System.Drawing, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a")
 [void][reflection.assembly]::Load("mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")
 [void][reflection.assembly]::Load("System.Windows.Forms.DataVisualization, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35")
 #endregion Import Assemblies

 #----------------------------------------------
 #region Generated Form Objects
 #----------------------------------------------
    [System.Windows.Forms.Application]::EnableVisualStyles()
    $formProcessPieChart = New-Object System.Windows.Forms.Form
    $dataGrid1 = New-Object System.Windows.Forms.DataGrid
    $chart = New-Object System.Windows.Forms.DataVisualization.Charting.Chart
    $InitialFormWindowState = New-Object System.Windows.Forms.FormWindowState
    $btnRefresh = New-Object System.Windows.Forms.Button
    $btnClear = New-Object System.Windows.Forms.Button
    $btngetdata=New-Object System.Windows.Forms.Button
    $rtbPerfData = New-Object System.Windows.Forms.RichTextBox
    $lblServicePack = New-Object System.Windows.Forms.Label
    $lblDBName= New-Object System.Windows.Forms.Label
    $lblOS = New-Object System.Windows.Forms.Label
    $statusBar1 = New-Object System.Windows.Forms.StatusBar
    $btnClose = New-Object System.Windows.Forms.Button
    $InitialFormWindowState = New-Object System.Windows.Forms.FormWindowState
    $txtComputerName = New-Object System.Windows.Forms.TextBox
    $dataGrid1 = New-Object System.Windows.Forms.DataGrid

 function Load-Chart
 {
  Param( #$XPoints, $YPoints, $XTitle, $YTitle, $Title, $ChartStyle)
   [Parameter(Position=1,Mandatory=$true)]
     [System.Windows.Forms.DataVisualization.Charting.Chart]$ChartControl
   ,
   [Parameter(Position=2,Mandatory=$true)]
     $XPoints
   ,
   [Parameter(Position=3,Mandatory=$true)]
     $YPoints
   ,
   [Parameter(Position=4,Mandatory=$false)]
     [string]$XTitle
   ,
   [Parameter(Position=5,Mandatory=$false)]
     [string]$YTitle
   ,
   [Parameter(Position=6,Mandatory=$false)]
     [string]$Title
   ,
   [Parameter(Position=7,Mandatory=$false)]
     [System.Windows.Forms.DataVisualization.Charting.SeriesChartType]$ChartType
   ,
   [Parameter(Position=8,Mandatory=$false)]
     $SeriesIndex = 0
   ,
   [Parameter(Position=9,Mandatory=$false)]
     $TitleIndex = 0,
   [switch]$Append)

  $ChartAreaIndex = 0
  if($Append)
  {
   $name = "ChartArea " + ($ChartControl.ChartAreas.Count + 1).ToString();
   $ChartArea = $ChartControl.ChartAreas.Add($name)
   $ChartAreaIndex = $ChartControl.ChartAreas.Count - 1

   $name = "Series " + ($ChartControl.Series.Count + 1).ToString();
   $Series = $ChartControl.Series.Add($name)
   $SeriesIndex = $ChartControl.Series.Count - 1

   $Series.ChartArea = $ChartArea.Name

   if($Title)
   {
    $name = "Title " + ($ChartControl.Titles.Count + 1).ToString();
    $TitleObj = $ChartControl.Titles.Add($name)
    $TitleIndex = $ChartControl.Titles.Count - 1
    $TitleObj.DockedToChartArea = $ChartArea.Name
    $TitleObj.IsDockedInsideChartArea = $false
   }
  }
  else
  {
   if($ChartControl.ChartAreas.Count -eq  0)
   {
    $name = "ChartArea " + ($ChartControl.ChartAreas.Count + 1).ToString();
    [void]$ChartControl.ChartAreas.Add($name)
    $ChartAreaIndex = $ChartControl.ChartAreas.Count - 1
   }

   if($ChartControl.Series.Count -eq 0)
   {
    $name = "Series " + ($ChartControl.Series.Count + 1).ToString();
    $Series = $ChartControl.Series.Add($name)
    $SeriesIndex = $ChartControl.Series.Count - 1
    $Series.ChartArea = $ChartControl.ChartAreas[0].Name
   }
  }

  $Series = $ChartControl.Series[$SeriesIndex]
  $ChartArea = $ChartControl.ChartAreas[$Series.ChartArea]

  $Series.Points.Clear()

  if($Title)
  {
   if($ChartControl.Titles.Count -eq 0)
   {
    $name = "Title " + ($ChartControl.Titles.Count + 1).ToString();
    [void]$ChartControl.Titles.Add($name)
    $TitleIndex = $ChartControl.Titles.Count - 1
    $TitleObj.DockedToChartArea = $ChartArea.Name
    $TitleObj.IsDockedInsideChartArea = $false
   }

   $ChartControl.Titles[$TitleIndex].Text = $Title
  }

  if($ChartType)
  {
   $Series.ChartType = $ChartType
  }

  if($XTitle)
  {
   $ChartArea.AxisX.Title = $XTitle
  }

  if($YTitle)
  {
   $ChartArea.AxisY.Title = $YTitle
  }

  if($XPoints -isnot [Array] -or $XPoints -isnot [System.Collections.IEnumerable])
  {
   $array = New-Object System.Collections.ArrayList
   $array.Add($XPoints)
   $XPoints = $array
  }

  if($YPoints -isnot [Array] -or $YPoints -isnot [System.Collections.IEnumerable])
  {
   $array = New-Object System.Collections.ArrayList
   $array.Add($YPoints)
   $YPoints = $array
  }

  $Series.Points.DataBindXY($XPoints, $YPoints)

 }

 function Clear-Chart
 {
  Param (
  [Parameter(Position=1,Mandatory=$true)]
    [System.Windows.Forms.DataVisualization.Charting.Chart]$ChartControl
  ,
  [Parameter(Position=2, Mandatory=$false)]
  [Switch]$LeaveSingleChart
  )

  $count = 0
  if($LeaveSingleChart)
  {
   $count = 1
  }

  while($ChartControl.Series.Count -gt $count)
  {
   $ChartControl.Series.RemoveAt($ChartControl.Series.Count - 1)
  }

  while($ChartControl.ChartAreas.Count -gt $count)
  {
   $ChartControl.ChartAreas.RemoveAt($ChartControl.ChartAreas.Count - 1)
  }

  while($ChartControl.Titles.Count -gt $count)
  {
   $ChartControl.Titles.RemoveAt($ChartControl.Titles.Count - 1)
  }

  if($ChartControl.Series.Count -gt 0)
  {
   $ChartControl.Series[0].Points.Clear()
  }
 }
 #endregion

<#
 $FormEvent_Load={
  #TODO: Initialize Form Controls here
  Load-PieChart
 }
 #>

 Function  Load-PieChart {
 Param([string]$computername)
  $Chart.ChartAreas.Add($ChartArea)

$process = [System.Diagnostics.Process]

$Processes = $process::GetProcesses($computername)|Sort-Object WS -Descending|select Handles,
@{Label="NPM(K)";Expression={[int]($_.NPM/1024)}}, `
@{Label="PM(K)";Expression={[int]($_.PM/1024)}}, `
@{Label="WS";Expression={[int]($_.WS/1024)}}, `
@{Label="VM(M)";Expression={[int]($_.VM/1MB)}}, `
Id, ProcessName, MachineName -first 9

$ProcNames = @(foreach($Proc in $Processes){$Proc.ProcessName+ "_"+$Proc.ID})
$WS = @(foreach($Proc in $Processes){$Proc.WS/1KB})

$Chart.Series.Add("Data")
$Chart.Series["Data"].Points.DataBindXY($ProcNames, $WS)

$ChartArea.AxisX.Title = "Process"
$ChartArea.AxisY.Title = "Working Set (KB)"

# Find point with max/min values and change their colour
$maxValuePoint = $Chart.Series["Data"].Points.FindMaxByValue()
$maxValuePoint.Color = [System.Drawing.Color]::Red

$minValuePoint = $Chart.Series["Data"].Points.FindMinByValue()
$minValuePoint.Color = [System.Drawing.Color]::Green

# make bars into 3d cylinders
#$Chart.Series["Data"]["DrawingStyle"] = "Cylinder"
$chartArea.Area3DStyle = New-Object System.Windows.Forms.DataVisualization.Charting.ChartArea3DStyle  -Property @{Enable3D=$true; IsRightAngleAxes=$false; Rotation=10; Inclination=10;}

# display the chart on a form
$Chart.Anchor = [System.Windows.Forms.AnchorStyles]::Bottom -bor [System.Windows.Forms.AnchorStyles]::Right -bor
                [System.Windows.Forms.AnchorStyles]::Top -bor [System.Windows.Forms.AnchorStyles]::Left

 }

 Function Get-ProcPerf {
    Param([string]$computername)
 $Object =@()
$array = New-Object System.Collections.ArrayList
    # load the appropriate assemblies
# add data to chart
$process = [System.Diagnostics.Process]
#$process::GetProcesses($server)

$prc=$process::GetProcesses($computername)|Sort-Object WS -Descending|select Handles, `
@{Label="NPM";Expression={[int]($_.NPM/1024)}}, `
@{Label="PM";Expression={[int]($_.PM/1MB)}}, `
@{Label="WS";Expression={[int]($_.WS/1MB)}}, `
@{Label="VM";Expression={[int]($_.VM/1MB)}}, `
Id, ProcessName, MachineName -first 9

$Object =@()

foreach ($p in $prc)
{
$Object += New-Object PSObject -Property @{
            Handles = $p.Handles;
            NPM = $P.NPM;
            PM = $P.PM;
            WoringSet = $P.WS;
            VM= $P.VM;
            ID=$P.Id;
            Name=$P.ProcessName;
            SrvName=$P.MachineName

          }
}

$column1 = @{expression="MachineName"; width=20; label="MachineName"; alignment="left"}
$column2 = @{expression="Handles"; width=10; label="Handles"; alignment="left"}
$column3 = @{expression="NPM"; width=10; label="NPM(K)"; alignment="left"}
$column4 = @{expression="PM"; width=10; label="PM(K)"; alignment="left"}
$column5 = @{expression="WS"; width=10; label="WS(K)"; alignment="left"}
$column6 = @{expression="VM"; width=10; label="VM(MB)"; alignment="left"}
$column7 = @{expression="id"; width=10; label="ProcessID"; alignment="left"}
$column8 = @{expression="Name"; width=15; label="ProcessName"; alignment="left"}

"#"*80
"Process Information"
"Generated $(get-date)"
"Generated from $(gc env:computername)"
"#"*80

#$Object
$Object |Format-Table  $column1,$column2,$column3,$column4,$column5,$column6,$column7,$column8

$array.AddRange($Object)
$dataGrid1.DataSource = $array

}

function Clear-Chart
 {
  Param (
  [Parameter(Position=1,Mandatory=$true)]
    [System.Windows.Forms.DataVisualization.Charting.Chart]$ChartControl
  ,
  [Parameter(Position=2, Mandatory=$false)]
  [Switch]$LeaveSingleChart
  )

  $count = 0
  if($LeaveSingleChart)
  {
   $count = 1
  }

  while($ChartControl.Series.Count -gt $count)
  {
   $ChartControl.Series.RemoveAt($ChartControl.Series.Count - 1)
  }

  while($ChartControl.ChartAreas.Count -gt $count)
  {
   $ChartControl.ChartAreas.RemoveAt($ChartControl.ChartAreas.Count - 1)
  }

  while($ChartControl.Titles.Count -gt $count)
  {
   $ChartControl.Titles.RemoveAt($ChartControl.Titles.Count - 1)
  }

  if($ChartControl.Series.Count -gt 0)
  {
   $ChartControl.Series[0].Points.Clear()
  }
 }

$cleardata={
Clear-Chart $chart

}

 $GetData={
      Clear-Chart $chart

        if ($txtComputerName.text -eq '')
        {
        $txtComputerName.text =$env:COMPUTERNAME
        }
        $statusBar1.text="Getting Process information ..please wait"
        if(Test-Connection -ComputerName $txtComputerName.text -Count 1 -ea 0) {
        $data=Get-ProcPerf -ComputerName $txtComputerName.text | Out-String

        Load-PieChart -computername $txtComputerName.text

   }
        else
        {
        [Windows.Forms.MessageBox]::Show(“Not able connect to the server", [Windows.Forms.MessageBoxIcon]::Information)
        }
        #$rtbPerfData.text=$data.Trim()
        $errorActionPreference="Continue"
        $statusBar1.Text="Ready"

    }

    $Close={
        $formProcessPieChart.close()

    }
 # --End User Generated Script--
 #----------------------------------------------
 # Generated Events
 #----------------------------------------------

 $Form_StateCorrection_Load=
 {
  #Correct the initial state of the form to prevent the .Net maximized form issue
  $formProcessPieChart.WindowState = $InitialFormWindowState
 }

 #----------------------------------------------
 #region Generated Form Code
 #----------------------------------------------
 #
 # formProcessPieChart
 #
 $formProcessPieChart.Controls.Add($buttonSave)
 $formProcessPieChart.Controls.Add($chart)
 $formProcessPieChart.ClientSize = New-Object System.Drawing.Size(513,640)
 $formProcessPieChart.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
 $formProcessPieChart.MinimumSize = New-Object System.Drawing.Size(300,300)
 $formProcessPieChart.Name = "formProcessPieChart"
 $formProcessPieChart.Text = "Disk Space Pie Chart"
 $formProcessPieChart.Controls.Add($btnRefresh)
 $formProcessPieChart.Controls.Add($lblServicePack)
 $formProcessPieChart.Controls.Add($lblOS)
 $formProcessPieChart.Controls.Add($lblDBName)
 $formProcessPieChart.Controls.Add($statusBar1)
 $formProcessPieChart.Controls.Add($btnClose)
 $formProcessPieChart.Controls.Add($txtComputerName)
 $formProcessPieChart.ClientSize = New-Object System.Drawing.Size(630,630)
 $formProcessPieChart.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
 $formProcessPieChart.Name = "form1"
 $formProcessPieChart.Text = "Process Information"
 $formProcessPieChart.add_Load($PopulateList)
 $formProcessPieChart.add_Load($FormEvent_Load)

$System_Drawing_Size = New-Object System.Drawing.Size
$System_Drawing_Size.Width = 600
$System_Drawing_Size.Height = 225
$dataGrid1.Size = $System_Drawing_Size
$dataGrid1.DataBindings.DefaultDataSourceUpdateMode = 0
$dataGrid1.HeaderForeColor = [System.Drawing.Color]::FromArgb(255,0,0,0)
$dataGrid1.Name = "dataGrid1"
$dataGrid1.DataMember = ""
$dataGrid1.TabIndex = 0
$System_Drawing_Point = New-Object System.Drawing.Point
$System_Drawing_Point.X =13
$System_Drawing_Point.Y = 62
$dataGrid1.Location = $System_Drawing_Point

$formProcessPieChart.Controls.Add($dataGrid1)
$dataGrid1.CaptionText='Process Details'

    #
    # btnRefresh
    #
    $btnRefresh.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $btnRefresh.Enabled = $TRUE
    $btnRefresh.Location = New-Object System.Drawing.Point(230,35)
    $btnRefresh.Name = "btnRefresh"
    $btnRefresh.Size = New-Object System.Drawing.Size(95,20)
    $btnRefresh.TabIndex = 2
    $btnRefresh.Text = "GetProcess"
    $btnRefresh.UseVisualStyleBackColor = $True
    $btnRefresh.add_Click($GetData)
    #
    #

    $btnClose.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $btngetdata.Enabled = $TRUE
    $btnClose.Location = New-Object System.Drawing.Point(328,35)
    $btnClose.Name = "btnClose"
    $btnClose.Size = New-Object System.Drawing.Size(95,20)
    $btnClose.TabIndex = 3
    $btnClose.Text = "Close"
    $btnClose.UseVisualStyleBackColor = $True
    $btnClose.add_Click($Close)
    #

    # lblDBName
    #
    $lblDBName.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $lblDBName.Font = New-Object System.Drawing.Font("Lucida Console",8.25,1,3,1)
    $lblDBName.Location = New-Object System.Drawing.Point(13,10)
    $lblDBName.Name = "lblDBName"
    $lblDBName.Size = New-Object System.Drawing.Size(178,23)
    $lblDBName.TabIndex = 0
    $lblDBName.Text = "Enter Server Name "
    $lblDBName.Visible = $TRUE
    #

    #$txtComputerName.text
    #txtComputerName
    $txtComputerName.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $txtComputerName.Location = New-Object System.Drawing.Point(13, 35)
    $txtComputerName.Name = "txtComputerName"
    $txtComputerName.TabIndex = 1
    $txtComputerName.Size = New-Object System.Drawing.Size(200,70)
    $txtComputerName.visible=$TRUE
    #
    # lblServicePack
    #
    $lblServicePack.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $lblServicePack.Font = New-Object System.Drawing.Font("Lucida Console",8.25,1,3,1)
    $lblServicePack.Location = New-Object System.Drawing.Point(13,100)
    $lblServicePack.Name = "lblServicePack"
    $lblServicePack.Size = New-Object System.Drawing.Size(278,23)
    $lblServicePack.TabIndex = 0
    $lblServicePack.Text = "ServicePack"
    $lblServicePack.Visible = $False
    #
    # lblOS
    #
    $lblOS.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $lblOS.Font = New-Object System.Drawing.Font("Lucida Console",8.25,1,3,1)
    $lblOS.Location = New-Object System.Drawing.Point(12,77)
    $lblOS.Name = "lblOS"
    $lblOS.Size = New-Object System.Drawing.Size(278,23)
    $lblOS.TabIndex = 2
    $lblOS.Text = "Service Information"
    $lblOS.Visible = $False
    #
    # statusBar1
    #
    $statusBar1.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $statusBar1.Location = New-Object System.Drawing.Point(0,365)
    $statusBar1.Name = "statusBar1"
    $statusBar1.Size = New-Object System.Drawing.Size(390,22)
    $statusBar1.TabIndex = 5
    $statusBar1.Text = "statusBar1"

    $Chart.Width = 600
    $Chart.Height = 300
    $Chart.Left = 10
    $Chart.Top = 300
    $ChartArea = New-Object System.Windows.Forms.DataVisualization.Charting.ChartArea

 #Save the initial state of the form
 $InitialFormWindowState = $formProcessPieChart.WindowState
 #Init the OnLoad event to correct the initial state of the form
 $formProcessPieChart.add_Load($Form_StateCorrection_Load)
 #Show the Form
 return $formProcessPieChart.ShowDialog()

} #End Function

if(OnApplicationLoad -eq $true)
{
    #Create the form
    #Call-SystemInformation_pff | Out-Null
    #Call-Disk_Space_Chart_pff | Out-Null
    Call-SystemInformation_pff | Out-Null
    #Perform cleanup
    OnApplicationExit
}

Posted in PowerShell | Tagged GUI Tool, Memory Consumption, Process, TOP Process | 2 Comments

PowerShell – SQL Inventory – Automatic – Excel File – EMAIL

Posted on February 4, 2014 by Prashanth Jayaram

Inventory is a vital information,whether you’re a consultant or an in-house DBA, you need to have a reliable inventory of the servers you manage.

Download the file and save as SQLInventoryExcel.PS1.

It has Five mandatory parameters

InputFileName – Text File contains a list of SQL Servers -c:\Server.txt(Example)
DirectoryToSave – Folder where you want to store the file
ToID – to email Address
FromID – From Email Address
SMTP – SMTP Adress

Pre-requisites are –

Windows PowerShell 2.0 must be installed
Permission to access all SQL instances
Permission to create a file in the given directory

Download or Save the file as SQLServerInventory.PS1

Call:

PS C:\Blog> .\SQLServerInventory.ps1 -InputFileName C:\server.txt -DirectoryToSaveTo C:\ -To pram@abc.com -From pram@abc.com -SMTP mail.abc.com

You can download :-SQLInventory

Output:-

Code:-

<#=================================
# Generated On: 02/04/2014
# Generated By: Prashanth Jayaram
# Version     : 1.0
# Desc        : SQL Inventory Generation
# EXAMPLE :
PS:\>.\SQLServerInventory.ps1 -InputFileName c:\server.txt -DirectoryToSaveTo C:\  -To pram@app.com -From pram@app.com
-SMTP mail.app.com
#=================================
#>
[CmdletBinding()]
Param(
  [Parameter(Mandatory=$True,Position=1)]
   [string]$InputFileName,

   [Parameter(Mandatory=$True,Position=2)]
   [string]$DirectoryToSaveTo,

   [Parameter(Mandatory=$True,Position=3)]
   [string]$To,

   [Parameter(Mandatory=$True,Position=4)]
   [string]$From,

   [Parameter(Mandatory=$True,Position=5)]
   [string]$SMTP

)

$Filename='SQLInventory'

# before we do anything else, are we likely to be able to save the file?
# if the directory doesn't exist, then create it
if (!(Test-Path -path "$DirectoryToSaveTo")) #create it if not existing
  {
  New-Item "$DirectoryToSaveTo" -type directory | out-null
  }

#Create a new Excel object using COM
$Excel = New-Object -ComObject Excel.Application
$Excel.visible = $True
$Excel = $Excel.Workbooks.Add()
$Sheet = $Excel.Worksheets.Item(1)

#Counter variable for rows
$intRow = 1
$xlOpenXMLWorkbook=[int]51

#Read thru the contents of the SQL_Servers.txt file

$Sheet.Cells.Item($intRow,1)  ="ComputerNamePhysicalNetBIOS"
$Sheet.Cells.Item($intRow,2)  ="NetName"
$Sheet.Cells.Item($intRow,3)  ="OS"
$Sheet.Cells.Item($intRow,4)  ="OSVersion"
$Sheet.Cells.Item($intRow,5)  ="Platform"
$Sheet.Cells.Item($intRow,6)  ="Product"
$Sheet.Cells.Item($intRow,7)  ="edition"
$Sheet.Cells.Item($intRow,8)  ="Version"
$Sheet.Cells.Item($intRow,9)  ="VersionString"
$Sheet.Cells.Item($intRow,10) ="ProductLevel"
$Sheet.Cells.Item($intRow,11) ="DatabaseCount"
$Sheet.Cells.Item($intRow,12) ="HasNullSaPassword"
$Sheet.Cells.Item($intRow,13) ="IsCaseSensitive"
$Sheet.Cells.Item($intRow,14) ="IsFullTextInstalled"
$Sheet.Cells.Item($intRow,15) ="Language"
$Sheet.Cells.Item($intRow,16) ="LoginMode"
$Sheet.Cells.Item($intRow,17) ="Processors"
$Sheet.Cells.Item($intRow,18) ="PhysicalMemory"
$Sheet.Cells.Item($intRow,19) ="MaxMemory"
$Sheet.Cells.Item($intRow,20) ="MinMemory"
$Sheet.Cells.Item($intRow,21) ="IsSingleUser"
$Sheet.Cells.Item($intRow,22) ="IsClustered"
$Sheet.Cells.Item($intRow,23) ="Collation"
$Sheet.Cells.Item($intRow,24) ="MasterDBLogPath"
$Sheet.Cells.Item($intRow,25) ="MasterDBPath"
$Sheet.Cells.Item($intRow,26) ="ErrorLogPath"
$Sheet.Cells.Item($intRow,27) ="BackupDirectory"
$Sheet.Cells.Item($intRow,28) ="DefaultLog"
$Sheet.Cells.Item($intRow,29) ="ResourceLastUpdatetime"
$Sheet.Cells.Item($intRow,30) ="AuditLevel"
$Sheet.Cells.Item($intRow,31) ="DefaultFile"
$Sheet.Cells.Item($intRow,32) ="xp_cmdshell"
$Sheet.Cells.Item($intRow,33) ="Domain"
$Sheet.Cells.Item($intRow,34) ="IPAddress"

  for ($col = 1; $col –le 34; $col++)
     {
          $Sheet.Cells.Item($intRow,$col).Font.Bold = $True
          $Sheet.Cells.Item($intRow,$col).Interior.ColorIndex = 48
          $Sheet.Cells.Item($intRow,$col).Font.ColorIndex = 34
     }

$intRow++

foreach ($instanceName in Get-Content $InputFileName)
{
[System.Reflection.Assembly]::LoadWithPartialName('Microsoft.SqlServer.SMO') | out-null
$server1 = New-Object -Type Microsoft.SqlServer.Management.Smo.Server -ArgumentList $instanceName
$s=$server1.Information.Properties |Select Name, Value
$st=$server1.Settings.Properties |Select Name, Value
$CP=$server1.Configuration.Properties |Select DisplayName, Description, RunValue, ConfigValue
$dbs=$server1.Databases.count
$BuildNumber=$s | where {$_.name -eq "BuildNumber"}|select value
$edition=$s | where {$_.name -eq "edition"}|select value
$ErrorLogPath =$s | where {$_.name -eq "ErrorLogPath"}|select value
$HasNullSaPassword =$s | where {$_.name -eq "HasNullSaPassword"}|select value
$IsCaseSensitive =$s | where {$_.name -eq "IsCaseSensitive"}|select value
$Platform =$s | where {$_.name -eq "Platform"}|select value
$IsFullTextInstalled =$s | where {$_.name -eq "IsFullTextInstalled"}|select value
$Language =$s | where {$_.name -eq "Language"}|select value
$MasterDBLogPath =$s | where {$_.name -eq "MasterDBLogPath"}|select value
$MasterDBPath =$s | where {$_.name -eq "MasterDBPath"}|select value
$NetName =$s | where {$_.name -eq "NetName"}|select value
$OSVersion =$s | where {$_.name -eq "OSVersion"}|select value
$PhysicalMemory =$s | where {$_.name -eq "PhysicalMemory"}|select value
$Processors =$s | where {$_.name -eq "Processors"}|select value
$IsSingleUser =$s | where {$_.name -eq "IsSingleUser"}|select value
$Product =$s | where {$_.name -eq "Product"}|select value
$VersionString =$s | where {$_.name -eq "VersionString"}|select value
$Collation =$s | where {$_.name -eq "Collation"}|select value
$IsClustered =$s | where {$_.name -eq "IsClustered"}|select value
$ProductLevel =$s | where {$_.name -eq "ProductLevel"}|select value
$ComputerNamePhysicalNetBIOS =$s | where {$_.name -eq "ComputerNamePhysicalNetBIOS"}|select value
$ResourceLastUpdateDateTime =$s | where {$_.name -eq "ResourceLastUpdateDateTime"}|select value
$AuditLevel =$st | where {$_.name -eq "AuditLevel"}|select value
$BackupDirectory =$st | where {$_.name -eq "BackupDirectory"}|select value
$DefaultFile =$st | where {$_.name -eq "DefaultFile"}|select value
$DefaultLog =$st | where {$_.name -eq "DefaultLog"}|select value
$LoginMode =$st | where {$_.name -eq "LoginMode"}|select value
$min=$CP | where {$_.Displayname -like "*min server memory*"}|select configValue
$max=$CP | where {$_.Displayname -like "*max server memory*"}|select configValue
$xp_cmdshell=$CP | where {$_.Displayname -like "*xp_cmdshell*"}|select configValue
$FQDN=[System.DirectoryServices.ActiveDirectory.Domain]::GetCurrentDomain().Name
$IPAddress=(Get-WmiObject Win32_NetworkAdapterConfiguration -ComputerName $instanceName | ? {$_.IPEnabled}).ipaddress

if ($HasNullSaPassword.value -eq $NULL)
{
    $HasNullSaPassword.value='No'
}
if($DefaultFile.value -eq '')
{
    $DefaultFile.value='NA'
}
if ($VersionString.value -like '8*')
{
    $SQLServer='SQL SERVER 2000'
}
elseif ($VersionString.value -like '9*')
{
    $SQLServer='SQL SERVER 2005'
}
elseif ($VersionString.value -like '10.0*')
{
    $SQLServer='SQL SERVER 2008'
}
elseif ($VersionString.value -like '10.5*')
{
    $SQLServer='SQL SERVER 2008 R2'
}
elseif ($VersionString.value -like '11*')
{
    $SQLServer='SQL SERVER 2012'
}
else
{
    $SQLServer='Invalid'
}

if ($OSVersion.value -like '5.0*')
{
    $OSVer='Windows 2000'
}
elseif ($OSVersion.value -like '5.1*')
{
    $OSVer='Windows XP'
}
elseif ($OSVersion.value -like '5.2*')
{
    $OSVer='Windows Server 2003'
}
elseif ($OSVersion.value -like '6.0*')
{
    $OSVer='Windows Server 2008'
}
elseif ($OSVersion.value -like '6.1*')
{
    $OSVer='Windows Server 2008 R2'
}
elseif ($OSVersion.value -like '6.2*')
{
    $OSVer='Windows Server 2012'
}
else
{
    $OSVer='NA'
}

        $Sheet.Cells.Item($intRow,1)  =$ComputerNamePhysicalNetBIOS.value
        $Sheet.Cells.Item($intRow,2)  =$NetName.value
        $Sheet.Cells.Item($intRow,3)  =$OSVer
        $Sheet.Cells.Item($intRow,4)  =$OSVersion.value
        $Sheet.Cells.Item($intRow,5)  = $Platform.value
        $Sheet.Cells.Item($intRow,6)  = $Product.value
        $Sheet.Cells.Item($intRow,7)  = $edition.value
        $Sheet.Cells.Item($intRow,8)  = $SQLServer
        $Sheet.Cells.Item($intRow,9)  = $VersionString.value
        $Sheet.Cells.Item($intRow,10) = $ProductLevel.value
        $Sheet.Cells.Item($intRow,11) = $Dbs
        $Sheet.Cells.Item($intRow,12) = $HasNullSaPassword.value
        $Sheet.Cells.Item($intRow,13) = $IsCaseSensitive.value
        $Sheet.Cells.Item($intRow,14) = $IsFullTextInstalled.value
        $Sheet.Cells.Item($intRow,15) = $Language.value
        $Sheet.Cells.Item($intRow,16) = $LoginMode.value
        $Sheet.Cells.Item($intRow,17) = $Processors.value
        $Sheet.Cells.Item($intRow,18) = $PhysicalMemory.value
        $Sheet.Cells.Item($intRow,19) = $Max.Configvalue
        $Sheet.Cells.Item($intRow,20) = $Min.Configvalue
        $Sheet.Cells.Item($intRow,21) = $IsSingleUser.value
        $Sheet.Cells.Item($intRow,22) = $IsClustered.value
        $Sheet.Cells.Item($intRow,23) = $Collation.value
        $Sheet.Cells.Item($intRow,24) = $MasterDBLogPath.value
        $Sheet.Cells.Item($intRow,25) = $MasterDBPath.value
        $Sheet.Cells.Item($intRow,26) = $ErrorLogPath.value
        $Sheet.Cells.Item($intRow,27) = $BackupDirectory.value
        $Sheet.Cells.Item($intRow,28) = $DefaultLog.value
        $Sheet.Cells.Item($intRow,29) = $ResourceLastUpdateDateTime.value
        $Sheet.Cells.Item($intRow,30) = $AuditLevel.value
        $Sheet.Cells.Item($intRow,31)= $DefaultFile.value
        $Sheet.Cells.Item($intRow,32)= $xp_cmdshell.Configvalue
        $Sheet.Cells.Item($intRow,33)= $FQDN
        $Sheet.Cells.Item($intRow,34)= $IPAddress

$intRow ++

}

$filename = "$DirectoryToSaveTo$filename.xlsx"
if (test-path $filename ) { rm $filename } #delete the file if it already exists
$Sheet.UsedRange.EntireColumn.AutoFit()
cls
$Excel.SaveAs($filename, $xlOpenXMLWorkbook) #save as an XML Workbook (xslx)
$Excel.Saved = $True
$Excel.Close()

Function sendEmail([string]$emailFrom, [string]$emailTo, [string]$subject,[string]$body,[string]$smtpServer,[string]$filePath)
{
#initate message
$email = New-Object System.Net.Mail.MailMessage
$email.From = $emailFrom
$email.To.Add($emailTo)
$email.Subject = $subject
$email.Body = $body
# initiate email attachment
$emailAttach = New-Object System.Net.Mail.Attachment $filePath
$email.Attachments.Add($emailAttach)
#initiate sending email
$smtp = new-object Net.Mail.SmtpClient($smtpServer)
$smtp.Send($email)
}

#Call Function
sendEmail -emailFrom $from -emailTo $to "SQL INVENTORY" "SQL INVENTORY DETAILS - COMPLETE DETAILS" -smtpServer $SMTP -filePath $filename

Posted in PowerShell, SQL | Tagged Configuration, Email Output, SMO, SQL Inventory | 7 Comments

PowerShell – Memory Details GUI Tool

Posted on January 27, 2014 by Prashanth Jayaram

This Powershell Memory GUI tool is used to fetch memory information from a computer. In the screen that follows, enter the computer name that you would like to get the memory details for and click on Get Memory Button.
This pulls out the usage of memory of the listed computer. If you don’t make an entry, then by default local machine details will be displayed. If you give a wrong name then message box will be pop up stating its reason for not connecting.
The code is tested in all version of Powershell. You need to have .Net framework 3.0 or 3.5 as its pre-requisites.

you can run the downloaded file from Powershell ISE or directly in Powershell console.

Download MemoryGUITool

CODE

Function Get-MemoryGUI
{
function OnApplicationLoad {

 if([Reflection.Assembly]::LoadWithPartialName("System.Windows.Forms.DataVisualization") -eq $null)
 {
  #Microsoft Chart Controls are not installed
  [void][reflection.assembly]::Load("System.Windows.Forms, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")
  [void][System.Windows.Forms.MessageBox]::Show("Microsoft Chart Controls for Microsoft .NET 3.5 Framework is required","Microsoft Chart Controls Required")
  #Open the URL
  [System.Diagnostics.Process]::Start("http://www.microsoft.com/downloads/en/details.aspx?familyid=130F7986-BF49-4FE5-9CA8-910AE6EA442C&displaylang=en");
  return $false
 }

 return $true #return true for success or false for failure
}

function OnApplicationExit {
 $script:ExitCode = 0 #Set the exit code for the Packager
}

#endregion Application Functions

#----------------------------------------------
# Generated Form Function
#----------------------------------------------
function Call-SystemInformation_pff {

 #----------------------------------------------
 #region Import the Assemblies
 #----------------------------------------------
 [void][reflection.assembly]::Load("System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")
 [void][reflection.assembly]::Load("System.Windows.Forms, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")
 [void][reflection.assembly]::Load("System.Data, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")
 [void][reflection.assembly]::Load("System.Drawing, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a")
 [void][reflection.assembly]::Load("mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089")
 [void][reflection.assembly]::Load("System.Windows.Forms.DataVisualization, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35")
 #endregion Import Assemblies

 #----------------------------------------------
 #region Generated Form Objects
 #----------------------------------------------
[System.Windows.Forms.Application]::EnableVisualStyles()
$formMemoryPieChart = New-Object System.Windows.Forms.Form
$dataGrid1 = New-Object System.Windows.Forms.DataGrid
$chart1 = New-Object System.Windows.Forms.DataVisualization.Charting.Chart
$InitialFormWindowState = New-Object System.Windows.Forms.FormWindowState
$btnRefresh = New-Object System.Windows.Forms.Button
$btngetdata=New-Object System.Windows.Forms.Button
$rtbPerfData = New-Object System.Windows.Forms.RichTextBox
$lblServicePack = New-Object System.Windows.Forms.Label
$lblDBName= New-Object System.Windows.Forms.Label
$lblOS = New-Object System.Windows.Forms.Label
$statusBar1 = New-Object System.Windows.Forms.StatusBar
$btnClose = New-Object System.Windows.Forms.Button
$InitialFormWindowState = New-Object System.Windows.Forms.FormWindowState
$txtComputerName = New-Object System.Windows.Forms.TextBox
$dataGrid1 = New-Object System.Windows.Forms.DataGrid

 function Load-Chart
 {
  Param( #$XPoints, $YPoints, $XTitle, $YTitle, $Title, $ChartStyle)
   [Parameter(Position=1,Mandatory=$true)]
     [System.Windows.Forms.DataVisualization.Charting.Chart]$ChartControl
   ,
   [Parameter(Position=2,Mandatory=$true)]
     $XPoints
   ,
   [Parameter(Position=3,Mandatory=$true)]
     $YPoints
   ,
   [Parameter(Position=4,Mandatory=$false)]
     [string]$XTitle
   ,
   [Parameter(Position=5,Mandatory=$false)]
     [string]$YTitle
   ,
   [Parameter(Position=6,Mandatory=$false)]
     [string]$Title
   ,
   [Parameter(Position=7,Mandatory=$false)]
     [System.Windows.Forms.DataVisualization.Charting.SeriesChartType]$ChartType
   ,
   [Parameter(Position=8,Mandatory=$false)]
     $SeriesIndex = 0
   ,
   [Parameter(Position=9,Mandatory=$false)]
     $TitleIndex = 0,
   [switch]$Append)

  $ChartAreaIndex = 0
  if($Append)
  {
   $name = "ChartArea " + ($ChartControl.ChartAreas.Count + 1).ToString();
   $ChartArea = $ChartControl.ChartAreas.Add($name)
   $ChartAreaIndex = $ChartControl.ChartAreas.Count - 1

   $name = "Series " + ($ChartControl.Series.Count + 1).ToString();
   $Series = $ChartControl.Series.Add($name)
   $SeriesIndex = $ChartControl.Series.Count - 1

   $Series.ChartArea = $ChartArea.Name

   if($Title)
   {
    $name = "Title " + ($ChartControl.Titles.Count + 1).ToString();
    $TitleObj = $ChartControl.Titles.Add($name)
    $TitleIndex = $ChartControl.Titles.Count - 1
    $TitleObj.DockedToChartArea = $ChartArea.Name
    $TitleObj.IsDockedInsideChartArea = $false
   }
  }
  else
  {
   if($ChartControl.ChartAreas.Count -eq  0)
   {
    $name = "ChartArea " + ($ChartControl.ChartAreas.Count + 1).ToString();
    [void]$ChartControl.ChartAreas.Add($name)
    $ChartAreaIndex = $ChartControl.ChartAreas.Count - 1
   }

   if($ChartControl.Series.Count -eq 0)
   {
    $name = "Series " + ($ChartControl.Series.Count + 1).ToString();
    $Series = $ChartControl.Series.Add($name)
    $SeriesIndex = $ChartControl.Series.Count - 1
    $Series.ChartArea = $ChartControl.ChartAreas[0].Name
   }
  }

  $Series = $ChartControl.Series[$SeriesIndex]
  $ChartArea = $ChartControl.ChartAreas[$Series.ChartArea]

  $Series.Points.Clear()

  if($Title)
  {
   if($ChartControl.Titles.Count -eq 0)
   {
    $name = "Title " + ($ChartControl.Titles.Count + 1).ToString();
    [void]$ChartControl.Titles.Add($name)
    $TitleIndex = $ChartControl.Titles.Count - 1
    $TitleObj.DockedToChartArea = $ChartArea.Name
    $TitleObj.IsDockedInsideChartArea = $false
   }

   $ChartControl.Titles[$TitleIndex].Text = $Title
  }

  if($ChartType)
  {
   $Series.ChartType = $ChartType
  }

  if($XTitle)
  {
   $ChartArea.AxisX.Title = $XTitle
  }

  if($YTitle)
  {
   $ChartArea.AxisY.Title = $YTitle
  }

  if($XPoints -isnot [Array] -or $XPoints -isnot [System.Collections.IEnumerable])
  {
   $array = New-Object System.Collections.ArrayList
   $array.Add($XPoints)
   $XPoints = $array
  }

  if($YPoints -isnot [Array] -or $YPoints -isnot [System.Collections.IEnumerable])
  {
   $array = New-Object System.Collections.ArrayList
   $array.Add($YPoints)
   $YPoints = $array
  }

  $Series.Points.DataBindXY($XPoints, $YPoints)

 }

 function Clear-Chart
 {
  Param (
  [Parameter(Position=1,Mandatory=$true)]
    [System.Windows.Forms.DataVisualization.Charting.Chart]$ChartControl
  ,
  [Parameter(Position=2, Mandatory=$false)]
  [Switch]$LeaveSingleChart
  )

  $count = 0
  if($LeaveSingleChart)
  {
   $count = 1
  }

  while($ChartControl.Series.Count -gt $count)
  {
   $ChartControl.Series.RemoveAt($ChartControl.Series.Count - 1)
  }

  while($ChartControl.ChartAreas.Count -gt $count)
  {
   $ChartControl.ChartAreas.RemoveAt($ChartControl.ChartAreas.Count - 1)
  }

  while($ChartControl.Titles.Count -gt $count)
  {
   $ChartControl.Titles.RemoveAt($ChartControl.Titles.Count - 1)
  }

  if($ChartControl.Series.Count -gt 0)
  {
   $ChartControl.Series[0].Points.Clear()
  }
 }
 #endregion

<#
 $FormEvent_Load={
  #TODO: Initialize Form Controls here
  Load-PieChart
 }
 #>

 function Load-PieChart
 {
param(
[string[]]$servers = "$ENV:COMPUTERNAME"
)
  foreach ($server in $servers) {
  #Get Disk space using WMI and make sure it is an array
  $Memory = @(Get-WmiObject -Class Win32_OperatingSystem -computername $servers | Select-Object Name, TotalVisibleMemorySize, FreePhysicalMemory,TotalVirtualMemorySize,FreeVirtualMemory,FreeSpaceInPagingFiles,NumberofProcesses,NumberOfUsers )

  #Remove all the current charts
  Clear-Chart $chart1

  #Loop through each drive
  foreach($m in $Memory)
  {
    $TotalRAM = $m.TotalVisibleMemorySize/1MB
    $FreeRAM = $m.FreePhysicalMemory/1MB
    $TotalVirtualMemorySize=[Math]::Round($m.TotalVirtualMemorySize/1MB, 3)
    $FreeVirtualMemory=[Math]::Round($m.FreeVirtualMemory/1MB, 3)

   #Load a Chart for each Drive
   Load-Chart $chart1 -XPoints ("Physical Total RAM ({0:N1} GB)" -f $TotalRAM), ("Physical Free RAM ({0:N1} GB)" -f $FreeRAM) -YPoints $TotalRAM, $FreeRAM -ChartType "Bar" -Title ("Physical Memory Chart") -Append
   Load-Chart $chart1 -XPoints ("Virtual Total RAM ({0:N1} GB)" -f $TotalVirtualMemorySize), ("Virtual Free RAM ({0:N1} GB)" -f $FreeVirtualMemory) -YPoints $TotalVirtualMemorySize, $FreeVirtualMemory -ChartType "Bar" -Title (" Virtual Memory Chart") -Append

  }

  #Set Custom Style
  foreach ($Series in $chart1.Series)
  {
   $Series.CustomProperties = "PieDrawingStyle=Concave"
  }
 }
 }

function Get-OSMemory
{
param(
[string]$Computer = "$ENV:COMPUTERNAME"
)
$script:Object =@()
$script:array = New-Object System.Collections.ArrayList
$Object =@()

if(Test-Connection -ComputerName $Computer -Count 1 -ea 0) {
$SystemInfo = Get-WmiObject -Class Win32_OperatingSystem -computername $Computer | Select-Object Name, TotalVisibleMemorySize, FreePhysicalMemory,TotalVirtualMemorySize,FreeVirtualMemory,FreeSpaceInPagingFiles,NumberofProcesses,NumberOfUsers
$TotalRAM = $SystemInfo.TotalVisibleMemorySize/1MB
$FreeRAM = $SystemInfo.FreePhysicalMemory/1MB
$UsedRAM = $TotalRAM - $FreeRAM
$RAMPercentFree = ($FreeRAM / $TotalRAM) * 100
$TotalRAM = [Math]::Round($TotalRAM, 2)
$FreeRAM = [Math]::Round($FreeRAM, 2)
$UsedRAM = [Math]::Round($UsedRAM, 2)
$RAMPercentFree = [Math]::Round($RAMPercentFree, 2)
$TotalVirtualMemorySize=[Math]::Round($SystemInfo.TotalVirtualMemorySize/1MB, 3)
$FreeVirtualMemory=[Math]::Round($SystemInfo.FreeVirtualMemory/1MB, 3)
$FreeSpaceInPagingFiles=[Math]::Round($SystemInfo.FreeSpaceInPagingFiles/1MB, 3)
$NP=$SystemInfo.NumberofProcesses
$NU=$SystemInfo.NumberOfUsers

$Object += New-Object PSObject -Property @{
ComputerName = $Computer.ToUpper();
#Architecture = $architecture;
#OperatingSystem = $OS;
TotalRAMGB = $TotalRAM;
FreeRAMGB = $FreeRAM;
UsedRAMGB = $UsedRAM;
FreeRAMPercentage =$RAMPercentFree;
TotalVMSizeGB=$TotalVirtualMemorySize;
FreeVMGB=$FreeVirtualMemory;
FreeSpaceInPageFileGB=$FreeSpaceInPagingFiles;
NoOfProcesses=$NP;
NoOfUsers=$NU
}
}

$array.AddRange($Object)
$dataGrid1.DataSource = $array

}

 $GetData={
        $statusBar1.text="Getting Memory Details Data..please wait"
        if ($txtComputerName.text -eq '')
        {
        $txtComputerName.text=$ENV:COMPUTERNAME
        }
        if(Test-Connection -ComputerName $txtComputerName.text -Count 1 -ea 0) {
        $data=Get-OSMemory -Computer $txtComputerName.text | Out-String
        Load-PieChart -servers $txtComputerName.text
        }
        else
        {
        [Windows.Forms.MessageBox]::Show(“Unable to connect to the server!!")
        }

        $errorActionPreference="Continue"
        $statusBar1.Text="Ready"

    }

    $Close={
        $formMemoryPieChart.close()

    }
 # --End User Generated Script--
 #----------------------------------------------
 # Generated Events
 #----------------------------------------------

 $Form_StateCorrection_Load=
 {
  #Correct the initial state of the form to prevent the .Net maximized form issue
  $formMemoryPieChart.WindowState = $InitialFormWindowState
 }

 #----------------------------------------------
 #region Generated Form Code
 #----------------------------------------------
 #
 # formMemoryPieChart
 #
 $formMemoryPieChart.Controls.Add($buttonSave)
 $formMemoryPieChart.Controls.Add($chart1)
 $formMemoryPieChart.ClientSize = New-Object System.Drawing.Size(575,575)
 $formMemoryPieChart.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
 $formMemoryPieChart.MinimumSize = New-Object System.Drawing.Size(300,300)
 $formMemoryPieChart.Name = "formMemoryPieChart"
 $formMemoryPieChart.Text = "Disk Space Pie Chart"
 $formMemoryPieChart.Controls.Add($btnRefresh)
 $formMemoryPieChart.Controls.Add($lblServicePack)
 $formMemoryPieChart.Controls.Add($lblOS)
 $formMemoryPieChart.Controls.Add($lblDBName)
 $formMemoryPieChart.Controls.Add($statusBar1)
 $formMemoryPieChart.Controls.Add($btnClose)
 $formMemoryPieChart.Controls.Add($txtComputerName)
 $formMemoryPieChart.ClientSize = New-Object System.Drawing.Size(850,600)
 $formMemoryPieChart.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
 $formMemoryPieChart.Name = "form1"
 $formMemoryPieChart.Text = "Physical and Virtual Memory Usage Information"
 $formMemoryPieChart.add_Load($PopulateList)
 $formMemoryPieChart.add_Load($FormEvent_Load)

$System_Drawing_Size = New-Object System.Drawing.Size
$System_Drawing_Size.Width = 825
$System_Drawing_Size.Height = 100
$dataGrid1.Size = $System_Drawing_Size
$dataGrid1.DataBindings.DefaultDataSourceUpdateMode = 0
$dataGrid1.HeaderForeColor = [System.Drawing.Color]::FromArgb(255,0,0,0)
$dataGrid1.Name = "dataGrid1"
$dataGrid1.DataMember = ""
$dataGrid1.TabIndex = 0
$System_Drawing_Point = New-Object System.Drawing.Point
$System_Drawing_Point.X =13
$System_Drawing_Point.Y = 62
$dataGrid1.Location = $System_Drawing_Point

$formMemoryPieChart.Controls.Add($dataGrid1)
$dataGrid1.CaptionText='Physical and Virtual Memory Usage Information'

    #
    # btnRefresh
    #
    $btnRefresh.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $btnRefresh.Enabled = $TRUE
    $btnRefresh.Location = New-Object System.Drawing.Point(230,35)
    $btnRefresh.Name = "btnRefresh"
    $btnRefresh.Size = New-Object System.Drawing.Size(95,20)
    $btnRefresh.TabIndex = 2
    $btnRefresh.Text = "GetMemory"
    $btnRefresh.UseVisualStyleBackColor = $True
    $btnRefresh.add_Click($GetData)
    #
    #

    # btnClose
    #

    $btnClose.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $btngetdata.Enabled = $TRUE
    $btnClose.Location = New-Object System.Drawing.Point(373,35)
    $btnClose.Name = "btnClose"
    $btnClose.Size = New-Object System.Drawing.Size(95,20)
    $btnClose.TabIndex = 3
    $btnClose.Text = "Close"
    $btnClose.UseVisualStyleBackColor = $True
    $btnClose.add_Click($Close)
    #

    # lblDBName
    #
    $lblDBName.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $lblDBName.Font = New-Object System.Drawing.Font("Lucida Console",8.25,1,3,1)
    $lblDBName.Location = New-Object System.Drawing.Point(13,10)
    $lblDBName.Name = "lblDBName"
    $lblDBName.Size = New-Object System.Drawing.Size(178,23)
    $lblDBName.TabIndex = 0
    $lblDBName.Text = "Enter Server Name "
    $lblDBName.Visible = $TRUE
    #

    #$txtComputerName.text
    #txtComputerName
    $txtComputerName.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $txtComputerName.Location = New-Object System.Drawing.Point(13, 35)
    $txtComputerName.Name = "txtComputerName"
    $txtComputerName.TabIndex = 1
    $txtComputerName.Size = New-Object System.Drawing.Size(200,70)
    $txtComputerName.visible=$TRUE
    #
    # lblServicePack
    #
    $lblServicePack.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $lblServicePack.Font = New-Object System.Drawing.Font("Lucida Console",8.25,1,3,1)
    $lblServicePack.Location = New-Object System.Drawing.Point(13,100)
    $lblServicePack.Name = "lblServicePack"
    $lblServicePack.Size = New-Object System.Drawing.Size(278,23)
#    $lblServicePack.TabIndex = 0
    $lblServicePack.Text = "ServicePack"
    $lblServicePack.Visible = $False
    #
    # lblOS
    #
    $lblOS.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $lblOS.Font = New-Object System.Drawing.Font("Lucida Console",8.25,1,3,1)
    $lblOS.Location = New-Object System.Drawing.Point(12,77)
    $lblOS.Name = "lblOS"
    $lblOS.Size = New-Object System.Drawing.Size(278,23)
#    $lblOS.TabIndex = 2
    $lblOS.Text = "Service Information"
    $lblOS.Visible = $False
    #
    # statusBar1
    #
    $statusBar1.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $statusBar1.Location = New-Object System.Drawing.Point(0,365)
    $statusBar1.Name = "statusBar1"
    $statusBar1.Size = New-Object System.Drawing.Size(390,22)
    $statusBar1.TabIndex = 5
    $statusBar1.Text = "statusBar1"

 #
 # chart1
 #
 $chart1.Anchor = [System.Windows.Forms.AnchorStyles]::Top -bor [System.Windows.Forms.AnchorStyles]::Bottom -bor [System.Windows.Forms.AnchorStyles]::Left -bor [System.Windows.Forms.AnchorStyles]::Right
 $chart1.BackGradientStyle = [System.Windows.Forms.DataVisualization.Charting.GradientStyle]::TopBottom
 $System_Windows_Forms_DataVisualization_Charting_ChartArea_1 = New-Object System.Windows.Forms.DataVisualization.Charting.ChartArea
 $System_Windows_Forms_DataVisualization_Charting_ChartArea_1.Area3DStyle.Enable3D = $True
 $System_Windows_Forms_DataVisualization_Charting_ChartArea_1.AxisX.Title = "Disk"
 $System_Windows_Forms_DataVisualization_Charting_ChartArea_1.AxisY.Title = "Disk Space (MB)"
 $System_Windows_Forms_DataVisualization_Charting_ChartArea_1.Name = "ChartArea1"

 [void]$chart1.ChartAreas.Add($System_Windows_Forms_DataVisualization_Charting_ChartArea_1)
 $chart1.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
 $chart1.Location = New-Object System.Drawing.Point(13,200)
 $chart1.Name = "chart1"
 $System_Windows_Forms_DataVisualization_Charting_Series_2 = New-Object System.Windows.Forms.DataVisualization.Charting.Series
 $System_Windows_Forms_DataVisualization_Charting_Series_2.ChartArea = "ChartArea1"
 $System_Windows_Forms_DataVisualization_Charting_Series_2.ChartType = [System.Windows.Forms.DataVisualization.Charting.SeriesChartType]::Pie
 $System_Windows_Forms_DataVisualization_Charting_Series_2.CustomProperties = "DrawingStyle=Cylinder, PieDrawingStyle=Concave"
 $System_Windows_Forms_DataVisualization_Charting_Series_2.IsVisibleInLegend = $False
 $System_Windows_Forms_DataVisualization_Charting_Series_2.Legend = "Legend1"
 $System_Windows_Forms_DataVisualization_Charting_Series_2.Name = "Memory Area"

 [void]$chart1.Series.Add($System_Windows_Forms_DataVisualization_Charting_Series_2)
 $chart1.Size = New-Object System.Drawing.Size(825,350)
 $chart1.TabIndex = 0
 $chart1.Text = "chart1"
 $System_Windows_Forms_DataVisualization_Charting_Title_3 = New-Object System.Windows.Forms.DataVisualization.Charting.Title
 $System_Windows_Forms_DataVisualization_Charting_Title_3.Alignment = [System.Drawing.ContentAlignment]::TopCenter
 $System_Windows_Forms_DataVisualization_Charting_Title_3.DockedToChartArea = "ChartArea1"
 $System_Windows_Forms_DataVisualization_Charting_Title_3.IsDockedInsideChartArea = $False
 $System_Windows_Forms_DataVisualization_Charting_Title_3.Name = "Title1"
 $System_Windows_Forms_DataVisualization_Charting_Title_3.Text = "Memory Area"

 [void]$chart1.Titles.Add($System_Windows_Forms_DataVisualization_Charting_Title_3)
 #

 #Save the initial state of the form
 $InitialFormWindowState = $formMemoryPieChart.WindowState
 #Init the OnLoad event to correct the initial state of the form
 $formMemoryPieChart.add_Load($Form_StateCorrection_Load)
 #Show the Form
 return $formMemoryPieChart.ShowDialog()

} #End Function

#Call OnApplicationLoad to initialize
if(OnApplicationLoad -eq $true)
{
    #Create the form
    Call-SystemInformation_pff | Out-Null
    #Perform cleanup
    OnApplicationExit
}
}

Get-MemoryGUI

Posted in Uncategorized | Tagged Forms, Graph example, Memory, PowerShell GUI tool, Win Forms Powershell Example | 1 Comment

PowerShell – Program List – 32/64 Bit – Local/Remote Machies

Posted on January 20, 2014 by Prashanth Jayaram

This Powershell script list all the installed application on both 32 and 64 bit applications, particularly useful for people managing both 32-bit and 64-bit applications. This code also contains an exclusion array where you can exclude list of program that you don’t want to show.

The function allows -ComputerName parameter so you can connect to any machines
Application architecture detection (32-bit or 64-bit) using Win32_processor
Output is Powershell console and GridView

Function call:- The computer name is mandatory to retrive the software list.

Get-InstalledApplication -Computername <Computername>

Code:

Function Get-InstalledApplication
{
Param(
[Parameter(Mandatory=$true)]
[string[]]$Computername)

#Registry Hives

$Object =@()

$excludeArray = ("Security Update for Windows",
"Update for Windows",
"Update for Microsoft .NET",
"Security Update for Microsoft",
"Hotfix for Windows",
"Hotfix for Microsoft .NET Framework",
"Hotfix for Microsoft Visual Studio 2007 Tools",
"Hotfix")

[long]$HIVE_HKROOT = 2147483648
[long]$HIVE_HKCU = 2147483649
[long]$HIVE_HKLM = 2147483650
[long]$HIVE_HKU = 2147483651
[long]$HIVE_HKCC = 2147483653
[long]$HIVE_HKDD = 2147483654

Foreach($EachServer in $Computername){
$Query = Get-WmiObject -ComputerName $Computername -query "Select AddressWidth, DataWidth,Architecture from Win32_Processor"
foreach ($i in $Query)
{
 If($i.AddressWidth -eq 64){
 $OSArch='64-bit'
 }
Else{
$OSArch='32-bit'
}
}

Switch ($OSArch)
{

 "64-bit"{
$RegProv = GWMI -Namespace "root\Default" -list -computername $EachServer| where{$_.Name -eq "StdRegProv"}
$Hive = $HIVE_HKLM
$RegKey_64BitApps_64BitOS = "Software\Microsoft\Windows\CurrentVersion\Uninstall"
$RegKey_32BitApps_64BitOS = "Software\Wow6432Node\Microsoft\Windows\CurrentVersion\Uninstall"
$RegKey_32BitApps_32BitOS = "Software\Microsoft\Windows\CurrentVersion\Uninstall"

#############################################################################

# Get SubKey names

$SubKeys = $RegProv.EnumKey($HIVE, $RegKey_64BitApps_64BitOS)

# Make Sure No Error when Reading Registry

if ($SubKeys.ReturnValue -eq 0)
{  # Loop Trhough All Returned SubKEys
ForEach ($Name in $SubKeys.sNames)
 {
$SubKey = "$RegKey_64BitApps_64BitOS\$Name"
$ValueName = "DisplayName"
$ValuesReturned = $RegProv.GetStringValue($Hive, $SubKey, $ValueName)
$AppName = $ValuesReturned.sValue
$Version = ($RegProv.GetStringValue($Hive, $SubKey, "DisplayVersion")).sValue
$Publisher = ($RegProv.GetStringValue($Hive, $SubKey, "Publisher")).sValue
$donotwrite = $false

if($AppName.length -gt "0"){

 Foreach($exclude in $excludeArray)
                        {
                        if($AppName.StartsWith($exclude) -eq $TRUE)
                            {
                            $donotwrite = $true
                            break
                            }
                        }
            if ($donotwrite -eq $false)
                        {
            $Object += New-Object PSObject -Property @{
            Appication = $AppName;
            Architecture  = "64-BIT";
            ServerName = $EachServer;
            Version = $Version;
            Publisher= $Publisher;
           }
                        }

}

  }}

#############################################################################

$SubKeys = $RegProv.EnumKey($HIVE, $RegKey_32BitApps_64BitOS)

# Make Sure No Error when Reading Registry

if ($SubKeys.ReturnValue -eq 0)

{

  # Loop Through All Returned SubKEys

  ForEach ($Name in $SubKeys.sNames)

  {

    $SubKey = "$RegKey_32BitApps_64BitOS\$Name"

$ValueName = "DisplayName"
$ValuesReturned = $RegProv.GetStringValue($Hive, $SubKey, $ValueName)
$AppName = $ValuesReturned.sValue
$Version = ($RegProv.GetStringValue($Hive, $SubKey, "DisplayVersion")).sValue
$Publisher = ($RegProv.GetStringValue($Hive, $SubKey, "Publisher")).sValue
 $donotwrite = $false

if($AppName.length -gt "0"){
 Foreach($exclude in $excludeArray)
                        {
                        if($AppName.StartsWith($exclude) -eq $TRUE)
                            {
                            $donotwrite = $true
                            break
                            }
                        }
            if ($donotwrite -eq $false)
                        {
            $Object += New-Object PSObject -Property @{
            Appication = $AppName;
            Architecture  = "32-BIT";
            ServerName = $EachServer;
            Version = $Version;
            Publisher= $Publisher;
           }
                        }
           }

    }

}

} #End of 64 Bit

######################################################################################

###########################################################################################

"32-bit"{

$RegProv = GWMI -Namespace "root\Default" -list -computername $EachServer| where{$_.Name -eq "StdRegProv"}

$Hive = $HIVE_HKLM

$RegKey_32BitApps_32BitOS = "Software\Microsoft\Windows\CurrentVersion\Uninstall"

#############################################################################

# Get SubKey names

$SubKeys = $RegProv.EnumKey($HIVE, $RegKey_32BitApps_32BitOS)

# Make Sure No Error when Reading Registry

if ($SubKeys.ReturnValue -eq 0)

{  # Loop Through All Returned SubKEys

  ForEach ($Name in $SubKeys.sNames)

  {
$SubKey = "$RegKey_32BitApps_32BitOS\$Name"
$ValueName = "DisplayName"
$ValuesReturned = $RegProv.GetStringValue($Hive, $SubKey, $ValueName)
$AppName = $ValuesReturned.sValue
$Version = ($RegProv.GetStringValue($Hive, $SubKey, "DisplayVersion")).sValue
$Publisher = ($RegProv.GetStringValue($Hive, $SubKey, "Publisher")).sValue

if($AppName.length -gt "0"){

$Object += New-Object PSObject -Property @{
            Appication = $AppName;
            Architecture  = "32-BIT";
            ServerName = $EachServer;
            Version = $Version;
            Publisher= $Publisher;
           }
           }

  }}

}#End of 32 bit

} # End of Switch

}

#$AppsReport

$column1 = @{expression="ServerName"; width=15; label="Name"; alignment="left"}
$column2 = @{expression="Architecture"; width=10; label="32/64 Bit"; alignment="left"}
$column3 = @{expression="Appication"; width=80; label="Appication"; alignment="left"}
$column4 = @{expression="Version"; width=15; label="Version"; alignment="left"}
$column5 = @{expression="Publisher"; width=30; label="Publisher"; alignment="left"}

"#"*80
"Installed Software Application Report"
"Numner of Installed Application count : $($object.count)"
"Generated $(get-date)"
"Generated from $(gc env:computername)"
"#"*80

$object |Format-Table $column1, $column2, $column3 ,$column4, $column5
$object|Out-GridView

}

Output:-

Happy Learning

Posted in PowerShell | Tagged 32 bit and 64 bit, application listing, program listing, win32_processor | 25 Comments

T-SQL to check Data and Log Files are on same drive or not

Posted on January 13, 2014 by Prashanth Jayaram

The below query help us in finding the physical existence of data and log files are on same drive or not of all the database in a SQL Instance.

;WITH LogCTE AS
(
SELECT DISTINCT LD.Database_Name
FROM
(
SELECT DB_NAME(database_id) AS [Database_Name], LEFT(Physical_Name, 1) AS [Drive_Letter] FROM sys.master_files WHERE type_desc = 'LOG' AND database_id > 4
) AS LD
 INNER JOIN
  sys.master_files mf
   ON LD.Drive_Letter = LEFT(mf.physical_name, 1) and mf.name=LD.Database_Name
WHERE
 mf.database_id > 4
 AND mf.type_desc = 'ROWS'
)
SELECT Database_Name into #FailedDatabase FROM LogCTE

IF ((SELECT COUNT(*) FROM #FailedDatabase) = 0)
 BEGIN
  SELECT 'Data And Log File Seperated'
 END
ELSE
 BEGIN
    SELECT Database_Name 'Data and Log Files are not Seperated' FROM #FAILEDDATABASE
 END

 DROP TABLE #FailedDatabase

Posted in T-SQL, Uncategorized | Tagged CTE, Data file and log file check, sys.master_Files | Leave a comment

T-SQL – Monitoring DiskSpace of Multiple Servers

Posted on January 10, 2014 by Prashanth Jayaram

This post talks about step by step approach to capture the disk space using T-SQL. This is a request from one of SQL enthusiast. The requirement is to do with T-SQL to monitor disk space of remote servers.

Pre-requisites are

Enable XP_CMDShell
Enable Ole automation on all servers

Step by Step procedures to be done on centralized server is as follows

Enable XP_CMDShell
List all SQL Instances in c:\Server.txt
Enable ole automation on listed servers
Table Creation [TLOG_SpaceUsageDetails]
Copy and Paste T-SQL script in C:\SpaceCheck.sql
Execute dynamic sqlcmd from SSMS
select the output by querying TLOG_SpaceUsageDetails

The details are as follows

Enable XP_CMDSHELL on Centralized Server

/*************************
--Enable XP_CMDShell -SSMS
*****************************/

sp_configure 'show advanced options', 1;
GO
RECONFIGURE;
GO
sp_configure 'xp_cmdShell', 1;
GO
RECONFIGURE;
GO

Enable Ole Automation in all the server from where you wanted to collected the data

/*************************
--Enable Ole Automation on all the listed servers –SSMS. In this example ABC,DEF,EFG
*****************************/
sp_configure 'show advanced options', 1;
GO
RECONFIGURE;
GO
sp_configure 'Ole Automation Procedures', 1;
GO
RECONFIGURE;
GO


/*************************
--List all SQL Instances in c:\Server.txt
*****************************/
ABC
DEF
EFG

Centralized Server – Table Creation

/*************************
--Table Creation --SSMS
*****************************/

CREATE TABLE [dbo].[TLOG_SpaceUsageDetails](
    [space_id] [int] IDENTITY(1,1) NOT NULL,
    [servername] [varchar](100) NULL,
    [LogDate] [varchar](10) NULL,
    [drive] [char](1) NULL,
    [FreeSpaceMB] [int] NULL,
    [TotalSizeMB] [int] NULL,
    [percentageOfFreeSpace] [int] NULL
) ON [PRIMARY]

GO

SET ANSI_PADDING OFF
GO

ALTER TABLE [dbo].[TLOG_SpaceUsageDetails] ADD  DEFAULT (CONVERT([varchar](10),getdate(),(112))) FOR [LogDate]

Centralized Server – Create a file spacecheck.sql and copy and paste the below code

DECLARE @hr INT ,
    @fso INT,
    @drive CHAR(1),
    @odrive INT,
    @TotalSize VARCHAR(20),
    @MB NUMERIC ,
    @FreeSpace INT,
    @free INT,
    @RowId_1 INT,
    @LoopStatus_1 SMALLINT,
    @TotalSpace VARCHAR(10),
    @Percentage VARCHAR(3),
    @drive1 varchar(2),
    @TotalSizeMB varchar(10),
    @FreeSpaceMB varchar(10),
    @percentageOfFreeSpace varchar(10),
    @RowId_2 INT,
    @LoopStatus_2 SMALLINT,
    @DML nvarchar(4000)

SET NOCOUNT ON
-----------------------------------------------------------------------------------------------
--Table to Store Drive related information
-----------------------------------------------------------------------------------------------
CREATE TABLE #drives
 (
     id INT IDENTITY(1,1) PRIMARY KEY,
     drive CHAR(1),
     FreeSpaceMB INT ,
     TotalSizeMB INT NULL,
     percentageOfFreeSpace INT
 )


-----------------------------------------------------------------------------------------------
--Inserting the output of xp_fixeddrives to #SpaceSize Table
-----------------------------------------------------------------------------------------------
INSERT #drives(drive,FreeSpaceMB) EXEC master.dbo.xp_fixeddrives

-----------------------------------------------------------------------------------------------
--Using the sp_OACreate, sp_OAMethod and sp_OAGetProperty system stored procedures to create Ole Automation (ActiveX) applications that can do everything an ASP script can do*/
--Creates an instance of the OLE object
-----------------------------------------------------------------------------------------------
EXEC @hr=sp_OACreate 'Scripting.FileSystemObject',@fso OUT

 SET @MB = 1048576
 SET @RowId_1 = 1
 SET @LoopStatus_1 = 1

-----------------------------------------------------------------------------------------------
--To Get Drive total space
-----------------------------------------------------------------------------------------------

WHILE (@LoopStatus_1 <> 0) BEGIN

SELECT
 @drive=drive,
 @FreeSpace=FreeSpaceMB
 FROM
 #drives
 WHERE
 ( ID = @RowId_1 )

 IF ( @@ROWCOUNT = 0 )
 BEGIN
    SET @LoopStatus_1 = 0
 END
 ELSE
BEGIN
     EXEC @hr = sp_OAMethod @fso,'GetDrive', @odrive OUT, @drive
     EXEC @hr =sp_OAGetProperty @odrive,'TotalSize', @TotalSize OUT
 UPDATE #drives SET TotalSizeMB=@TotalSize/@MB
 WHERE
 drive=@drive
 UPDATE #drives SET percentageOfFreeSpace=(@FreeSpace/(TotalSizeMB*1.0))*100.0
 WHERE drive=@drive
END
 SET @RowId_1 = @RowId_1 + 1

END


SELECT  @RowId_2=1,@LoopStatus_2=1

--SELECT @@servername,drive,TotalSizeMB,FreeSpaceMB,percentageOfFreeSpace FROM #drives

WHILE (@LoopStatus_2 <> 0) BEGIN

SET @DML=''
SELECT
 @drive1=drive,
 @FreeSpace=FreeSpaceMB,
 @TotalSizeMB=TotalSizeMB,
 @FreeSpaceMB=FreeSpaceMB,
 @percentageOfFreeSpace=percentageOfFreeSpace
 FROM
 #drives
 WHERE
 ( ID = @RowId_2 )

 IF ( @@ROWCOUNT = 0 )
 BEGIN
    SET @LoopStatus_2 = 0
 END
 ELSE
BEGIN
     SET @DML=@DML+ 'insert into TLOG_SpaceUsageDetails(servername,drive,TotalSizeMB,FreeSpaceMB,percentageOfFreeSpace)values('+''''+@@servername+''''+','+''''+@drive1+''''+','+''''+@TotalSizeMB+''''+','+''''+@FreeSpaceMB+''''+','+''''+@percentageOfFreeSpace+'''' +')'
END
PRINT @DML
 SET @RowId_2 = @RowId_2 + 1

END


drop table #drives

Centralized Server – Execute the below code in SSMS – replace below code to valid centralized server name.

SQL

MASTER..XP_CMDSHELL 'for /f %j in (c:\server.txt ) do sqlcmd -S %j -i c:\SpaceCheck.sql -E > c:\SpaceDetails.sql'
GO
MASTER..XP_CMDSHELL 'sqlcmd -S <CentralizedServerName> -i c:\spacedetails.sql -E'

Ouptut:-

Posted in Uncategorized | Tagged Disk Space using T-SQL, Ole Automation, SQLCMD, Xp_CmdShell | 3 Comments

SSRS – Identify a scheduled SSRS Report

Posted on January 10, 2014 by Prashanth Jayaram

Initiating subscription is a tedious task in SQL Server Reporting Services. Each subscription in Reporting Services is setup as a SQL Server Agent job, but the job names are Unique Identifier its hard to remember and re-call. Have complete information in single query makes one easy to validate and execute the report with ease

You can manually invoke the job using T-SQL

USE [msdb] EXEC sp_start_job @job_name = ‘4008B6C3-D588-4D31-A565-F9527015DE79’

In the below code change the <ReportServer> parameter to corresponding ReportServer database name.

USE <ReportServer>
GO
SELECT
sj.[name] AS [Job Name],
c.[Name] AS [Report Name],
su.SubscriptionID,
su.OwnerID,
c.[Path],
su.Description,
su.EventType,
su.LastStatus,
su.LastRunTime,
sjs.next_run_date,
CASE ss.[enabled]
        WHEN 1 THEN 'Yes'
        WHEN 0 THEN 'No'
      END AS [IsEnabled]
    , CASE
        WHEN [freq_type] = 64 THEN 'Start automatically when SQL Server Agent starts'
        WHEN [freq_type] = 128 THEN 'Start whenever the CPUs become idle'
        WHEN [freq_type] IN (4,8,16,32) THEN 'Recurring'
        WHEN [freq_type] = 1 THEN 'One Time'
      END [ScheduleType]
    , CASE [freq_type]
        WHEN 1 THEN 'One Time'
        WHEN 4 THEN 'Daily'
        WHEN 8 THEN 'Weekly'
        WHEN 16 THEN 'Monthly'
        WHEN 32 THEN 'Monthly - Relative to Frequency Interval'
        WHEN 64 THEN 'Start automatically when SQL Server Agent starts'
        WHEN 128 THEN 'Start whenever the CPUs become idle'
      END [Occurrence]
    , CASE [freq_type]
        WHEN 4 THEN 'Occurs every ' + CAST([freq_interval] AS VARCHAR(3)) + ' day(s)'
        WHEN 8 THEN 'Occurs every ' + CAST([freq_recurrence_factor] AS VARCHAR(3))
                    + ' week(s) on '
                    + CASE WHEN [freq_interval] & 1 = 1 THEN 'Sunday' ELSE '' END
                    + CASE WHEN [freq_interval] & 2 = 2 THEN ', Monday' ELSE '' END
                    + CASE WHEN [freq_interval] & 4 = 4 THEN ', Tuesday' ELSE '' END
                    + CASE WHEN [freq_interval] & 8 = 8 THEN ', Wednesday' ELSE '' END
                    + CASE WHEN [freq_interval] & 16 = 16 THEN ', Thursday' ELSE '' END
                    + CASE WHEN [freq_interval] & 32 = 32 THEN ', Friday' ELSE '' END
                    + CASE WHEN [freq_interval] & 64 = 64 THEN ', Saturday' ELSE '' END
        WHEN 16 THEN 'Occurs on Day ' + CAST([freq_interval] AS VARCHAR(3))
                     + ' of every '
                     + CAST([freq_recurrence_factor] AS VARCHAR(3)) + ' month(s)'
        WHEN 32 THEN 'Occurs on '
                     + CASE [freq_relative_interval]
                        WHEN 1 THEN 'First'
                        WHEN 2 THEN 'Second'
                        WHEN 4 THEN 'Third'
                        WHEN 8 THEN 'Fourth'
                        WHEN 16 THEN 'Last'
                       END
                     + ' '
                     + CASE [freq_interval]
                        WHEN 1 THEN 'Sunday'
                        WHEN 2 THEN 'Monday'
                        WHEN 3 THEN 'Tuesday'
                        WHEN 4 THEN 'Wednesday'
                        WHEN 5 THEN 'Thursday'
                        WHEN 6 THEN 'Friday'
                        WHEN 7 THEN 'Saturday'
                        WHEN 8 THEN 'Day'
                        WHEN 9 THEN 'Weekday'
                        WHEN 10 THEN 'Weekend day'
                       END
                     + ' of every ' + CAST([freq_recurrence_factor] AS VARCHAR(3))
                     + ' month(s)'
      END AS [Recurrence]
    , CASE [freq_subday_type]
        WHEN 1 THEN 'Occurs once at '
                    + STUFF(
                 STUFF(RIGHT('000000' + CAST([active_start_time] AS VARCHAR(6)), 6)
                                , 3, 0, ':')
                            , 6, 0, ':')
        WHEN 2 THEN 'Occurs every '
                    + CAST([freq_subday_interval] AS VARCHAR(3)) + ' Second(s) between '
                    + STUFF(
                   STUFF(RIGHT('000000' + CAST([active_start_time] AS VARCHAR(6)), 6)
                                , 3, 0, ':')
                            , 6, 0, ':')
                    + ' & '
                    + STUFF(
                    STUFF(RIGHT('000000' + CAST([active_end_time] AS VARCHAR(6)), 6)
                                , 3, 0, ':')
                            , 6, 0, ':')
        WHEN 4 THEN 'Occurs every '
                    + CAST([freq_subday_interval] AS VARCHAR(3)) + ' Minute(s) between '
                    + STUFF(
                   STUFF(RIGHT('000000' + CAST([active_start_time] AS VARCHAR(6)), 6)
                                , 3, 0, ':')
                            , 6, 0, ':')
                    + ' & '
                    + STUFF(
                    STUFF(RIGHT('000000' + CAST([active_end_time] AS VARCHAR(6)), 6)
                                , 3, 0, ':')
                            , 6, 0, ':')
        WHEN 8 THEN 'Occurs every '
                    + CAST([freq_subday_interval] AS VARCHAR(3)) + ' Hour(s) between '
                    + STUFF(
                    STUFF(RIGHT('000000' + CAST([active_start_time] AS VARCHAR(6)), 6)
                                , 3, 0, ':')
                            , 6, 0, ':')
                    + ' & '
                    + STUFF(
                    STUFF(RIGHT('000000' + CAST([active_end_time] AS VARCHAR(6)), 6)
                                , 3, 0, ':')
                            , 6, 0, ':')
      END [Frequency]
    , STUFF(
            STUFF(CAST([active_start_date] AS VARCHAR(8)), 5, 0, '-')
                , 8, 0, '-') AS [ScheduleUsageStartDate]
    , STUFF(
            STUFF(CAST([active_end_date] AS VARCHAR(8)), 5, 0, '-')
                , 8, 0, '-') AS [ScheduleUsageEndDate]
    , [ss].[date_created] AS [ScheduleCreatedOn]
    , ss.[date_modified] AS [ScheduleLastModifiedOn]
FROM msdb.dbo.sysjobs AS sj
INNER JOIN dbo.ReportSchedule AS rs
ON sj.[name] = CAST(rs.ScheduleID AS NVARCHAR(128))
INNER JOIN msdb.dbo.sysjobschedules sjs on sj.job_id=sjs.job_id
INNER JOIN msdb.dbo.sysschedules ss on ss.schedule_id=sjs.schedule_id
INNER JOIN dbo.Subscriptions AS su ON rs.SubscriptionID = su.SubscriptionID
INNER JOIN dbo.[Catalog] c ON su.Report_OID = c.ItemID
order by [Report Name]

Posted in SSRS | Tagged job schedule, SSRS Report Schedule, Subscription | 1 Comment

Prashanth Jayaram

PowerShell – SSRS Inventory – Automatic – Excel File – EMAIL

PowerShell – Export SQL Data to Excel with Powershell

PowerShellGUI Tools – Disk,Memory and Process – Modules

Copy and paste the below content in C:\PowerShellGUI.psm1

Top 10 Process Listing By Memory Consumption – GUI Tool

PowerShell – SQL Inventory – Automatic – Excel File – EMAIL

PowerShell – Memory Details GUI Tool

PowerShell – Program List – 32/64 Bit – Local/Remote Machies

T-SQL to check Data and Log Files are on same drive or not

T-SQL – Monitoring DiskSpace of Multiple Servers

SSRS – Identify a scheduled SSRS Report

Blog Stats

Prashanth Jayaram

Verified Services

Top 30 PowerShell bloggers of 2018

My Blog is ranked amongst the Top 50 SQL blogs worldwide

DZone MVB

Microsoft

Subscribe to Blog via Email

Archives

Top Posts & Pages

Categories

Recent Posts

PowershellSQL

Blog Stats

Share this:

Share this:

Copy and paste the below content in C:\PowerShellGUI.psm1

Share this:

Share this:

Share this:

Share this:

Share this:

Share this:

Share this:

Share this:

Blog Stats

Verified Services

Top 30 PowerShell bloggers of 2018

My Blog is ranked amongst the Top 50 SQL blogs worldwide

DZone MVB

Microsoft

Subscribe to Blog via Email

Archives

Top Posts & Pages

Categories

Recent Posts

PowershellSQL
