Capturing Database(s) and Table Usage stats – sp_spaceused simulation using DMVs

Posted on December 26, 2014 by Prashanth Jayaram

For more Information refer Technet Article

Introduction

sp_spaceused is one of the system stored procedure used frequently by many DBA’s that reveals amount of space used by database/tables. This procedure can be executed either by passing parameters or no parameters. The objective of this stored procedure is to measure the amount of space consumed by database or tables.

Objective

This article demonstrates a simple process that saves database usage information in a single result set. This is a simulation of sp_spaceused using DMV’s. It gives db usage information of all dbs in a single result set also the output includes two more extra columns which tells data and log file size. You can also customize the code to capture db usage information for specific databases. The process is useful in monitoring DB growth over time and lets you see what databases are growing rapidly also help in estimating future growth and disk space requirements. The SQL output can be stored in a table which allows us to estimate future growth and helps in forecasting the disk space requirement over time. In some cases the results are not accurate and it requires update system views.

SP_SPACEUSED – DATABASE

The most common usage for sp_spaceused is to measure the amount of spaced used for a database. In order to perform this, execute the procedure with no parameters

USE <DatabaseName>

GO

sp_spaceused

For Example:-

USE EMPLOYEE

GO

sp_spaceused

This output will be displayed two result sets and it returns the following information

First:-

Current database name
Current database size
Unallocated space

Second:-

Reserved space
Space used by data
Space used by indexes
Unused space

First Result set:

database_name: Name of the current database
database_size: Size of the current database in MegaBytes
database_size = data files+log files
unallocated space: Space in the database that has not been reserved for database objects

Second Result set:

reserved: Total amount of space allocated by objects in the database
data: Total amount of space used by data
index_size: Total amount of space used by indexes
unused: Total amount of space reserved for objects in the database, but not yet used

SP_SPACEUSED – TABLE

If procedure is called with valid object, single result set is returned for the specific object and it displays the number of rows, disk space reserved, and disk space used by a table, indexed views.

USE <Database Name>

GO

sp_spaceused [[ @objname = ] 'objname' ]

For Example:-

USE EMPLOYEE

GO

sp_spaceused 'Production.ProductInventory'

It returns the following information

Name of the Table
No of rows of the table
Reserved space
Space used by data
Space used by indexes
Unused space

name : Table name
rows : Number of rows of the given table
reserved : Total amount of reserved space [data + index]
data : Amount of space used by table
index_size : Amount of space used by table indexes
Unused : Total amount of space reserved for table but no yet used

Permission

Permission to execute sp_spaceused is granted to the public role. Only members of the db_owner fixed database role can specify the @updateusage parameter.

SQL

The output gives db usage information of all dbs in a single result set also the output includes two more extra columns which gives data and log file sizes

–Displaying the usage details of all the databases.

DECLARE @allocation_table table

(

dbname sysname,

reservedpages bigint,

usedpages bigint,

pages bigint

)

INSERT INTO @allocation_table

EXEC sp_MSforeachdb N'IF EXISTS

(

SELECT 1 FROM SYS.DATABASES WHERE name = ''?'' AND NAME NOT IN(''master'',''msdb'',''model'',''tempdb'') and STATE=0

--customize to monitor specific databases

--SELECT 1 FROM SYS.DATABASES WHERE name = ''?'' AND NAME IN(''EMPLOYEE'') and STATE=0

)

BEGIN

SELECT

''?'',

SUM(a.total_pages) as reservedpages,

SUM(a.used_pages) as usedpages,

SUM(

CASE

-- XML-Index and FT-Index internal tables are not considered "data", but is part of "index_size"

When it.internal_type IN (202,204,211,212,213,214,215,216) Then 0

When a.type <> 1 Then a.used_pages

When p.index_id < 2 Then a.data_pages

Else 0

END

) as pages

from ?.sys.partitions p join ?.sys.allocation_units a on p.partition_id = a.container_id

left join ?.sys.internal_tables it on p.object_id = it.object_id

END';

SELECT

-- from first result set of 'exec sp_spacedused'

db_name(sf.database_id) as [database_name]

,ltrim(str((convert (dec (15,2),sf.dbsize) + convert (dec (15,2),sf.logsize)) * 8192 / 1048576,15,2) + ' MB')as [database_size]

,ltrim(str((case when sf.dbsize >= pages.reservedpages then

(convert (dec (15,2),sf.dbsize) - convert (dec (15,2),pages.reservedpages))

* 8192 / 1048576 else 0 end),15,2) + ' MB') as [unallocated space]

-- from second result set of 'exec sp_spacedused'

,ltrim(str(pages.reservedpages * 8192 / 1024.,15,0) + ' KB') as [reserved]

,ltrim(str(pages.pages * 8192 / 1024.,15,0) + ' KB') as data

,ltrim(str((pages.usedpages - pages.pages) * 8192 / 1024.,15,0) + ' KB') as index_size

,ltrim(str((pages.reservedpages - pages.usedpages) * 8192 / 1024.,15,0) + ' KB') as unused

-- additional columns data and Log Size

,ltrim(str((convert (dec (15,2),sf.dbsize)) * 8192 / 1048576,15,2) + ' MB') as dbsize

,ltrim(str((convert (dec (15,2),sf.logsize)) * 8192 / 1048576,15,2) + ' MB') as logsize

FROM (

select

database_id,

sum(convert(bigint,case when type = 0 then size else 0 end)) as dbsize,

sum(convert(bigint,case when type <> 0 then size else 0 end)) as logsize

from sys.master_files

group by database_id

) sf,

(

SELECT

dbname,

reservedpages,

usedpages,

pages

FROM @ALLOCATION_TABLE

) pages

WHERE DB_NAME(sf.database_id)=pages.dbname

Customized code for specific database

Change the below shown line from an above given code for any customization. For example, the code below ran against EMPLOYEE database also the below screen show comparison of outputs from DMV’s v/s sp_spaceused

Capturing details in a permanent table of databases using DMV’s

The database usage information that we gather contains guidelines to help you plan and configure the storage and SQL Server database

This process defined in three steps

Create permanent table
Execute the SQL
Display the result

/******************************************************************************************************
The table tb_SpaceUsed is created to gather the details periodically
******************************************************************************************************/

CREATE TABLE tb_SpaceUsed

(

Database_Name sysname,

database_sizeMB decimal(7,2),

Unallocated_SpaceMB decimal(7,2),

reservedKB bigint,

dataKB bigint,

Index_SizeKB bigint,

unusedKB bigint,

dbSizeMB decimal(7,2),

logSizeMB decimal(7,2),

logdate int default(CONVERT(varchar(10), getdate(),112))

)

/******************************************************************************************************

--@allocation_table variable is used to gather allocation units details of all the databases

******************************************************************************************************/

DECLARE @allocation_table table

(

dbname sysname,

reservedpages bigint,

usedpages bigint,

pages bigint

)

INSERT INTO @allocation_table

EXEC sp_MSforeachdb N'IF EXISTS

(

SELECT 1 FROM SYS.DATABASES WHERE name = ''?'' AND NAME NOT IN(''master'',''msdb'',''model'',''tempdb'') and STATE=0

--customize to monitor specific databases

--SELECT 1 FROM SYS.DATABASES WHERE name = ''?'' AND NAME IN(''EMPLOYEE'') and STATE=0

)

BEGIN

SELECT

''?'',

SUM(a.total_pages) as reservedpages,

SUM(a.used_pages) as usedpages,

SUM(

CASE

-- XML-Index and FT-Index internal tables are not considered "data", but is part of "index_size"

When it.internal_type IN (202,204,211,212,213,214,215,216) Then 0

When a.type <> 1 Then a.used_pages

When p.index_id < 2 Then a.data_pages

Else 0

END

) as pages

from ?.sys.partitions p join ?.sys.allocation_units a on p.partition_id = a.container_id

left join ?.sys.internal_tables it on p.object_id = it.object_id

END';

/******************************************************************************************************

--Inserting the db usage information to tb_SpaceUsed table

******************************************************************************************************/

INSERT INTO

tb_SpaceUsed(Database_Name,database_sizeMB,Unallocated_SpaceMB,reservedKB,dataKB,Index_SizeKB,unusedKB,dbSizeMB,logSizeMB)

SELECT

-- from first result set of 'exec sp_spacedused'

db_name(sf.database_id) as [database_name]

,ltrim(str((convert (dec (15,2),sf.dbsize) + convert (dec (15,2),sf.logsize)) * 8192 / 1048576,15,2) ) as[database_size]

,ltrim(str((case when sf.dbsize >= pages.reservedpages then

(convert (dec (15,2),sf.dbsize) - convert (dec (15,2),pages.reservedpages))

* 8192 / 1048576 else 0 end),15,2) ) as [unallocated space]

-- from second result set of 'exec sp_spacedused'

,ltrim(str(pages.reservedpages * 8192 / 1024.,15,0) ) as [reserved]

,ltrim(str(pages.pages * 8192 / 1024.,15,0) ) as data

,ltrim(str((pages.usedpages - pages.pages) * 8192 / 1024.,15,0) ) as index_size

,ltrim(str((pages.reservedpages - pages.usedpages) * 8192 / 1024.,15,0) ) as unused

-- additional columns data and Log Size

,ltrim(str((convert (dec (15,2),sf.dbsize)) * 8192 / 1048576,15,2) ) as dbsize

,ltrim(str((convert (dec (15,2),sf.logsize)) * 8192 / 1048576,15,2)) as logsize

FROM (

select

database_id,

sum(convert(bigint,case when type = 0 then size else 0 end)) as dbsize,

sum(convert(bigint,case when type <> 0 then size else 0 end)) as logsize

from sys.master_files

group by database_id

) sf,

(

SELECT

dbname,

reservedpages,

usedpages,

pages

FROM @ALLOCATION_TABLE

) pages

WHERE DB_NAME(sf.database_id)=pages.dbname

/******************************************************************************************************
— Displaying Output
******************************************************************************************************/

select * from tb_SpaceUsed

OUTPUT:-

SQL 2000

The below code can be used to get sp_spaceused output in single result set for SQL 2000 instances. The code is a written from a clone of sp_spaceused stored procedure with dynamic sql.

/*

Create temp TABLEs before any DML to ensure dynamic

We need to CREATE a temp TABLE to do the calculation.

reserved: sum(reserved) WHERE indid in (0, 1, 255)

DATA: sum(dpages) WHERE indid < 2 + sum(used) WHERE indid = 255 (text)

indexp: sum(used) WHERE indid in (0, 1, 255) - DATA

unused: sum(reserved) - sum(used) WHERE indid in (0, 1, 255)

*/

---------------------------------------------------------------------------------------------------

-- Desc. : created a automated script to log's all space details of different database.

---------------------------------------------------------------------------------------------------

DECLARE @pages INT

DECLARE @dbname sysname

DECLARE @dbsize DEC(15,0)

DECLARE @logsize DEC(15)

DECLARE @bytesperpage DEC(15,0)

DECLARE @pagesperMB DEC(15,0)

DECLARE @DML1 nvarchar(2000)

DECLARE @DML2 nvarchar(200)

DECLARE @DML3 nvarchar(200)

DECLARE @DML4 nvarchar(200)

DECLARE @DML5 nvarchar(200)

DECLARE @DML6 nvarchar(200)

DECLARE @DML7 nvarchar(200)

DECLARE @DML8 nvarchar(200)

DECLARE @DML9 nvarchar(200)

DECLARE @DML10 nvarchar(200)

DECLARE @DML11 nvarchar(200)

DECLARE @DML12 nvarchar(1000)

DECLARE @DML13 nvarchar(4000)

DECLARE @LoopStatus int

DECLARE @RowId int

DECLARE @dbname_1 varchar(100)

DECLARE @DML14 varchar(2000)

SET @DML14='

DECLARE @pages INT,@dbname sysname,@dbsize DEC(15,0),@logsize DEC(15),@bytesperpage DEC(15,0),@pagesperMB DEC(15,0),

@DML1 nvarchar(2000),@DML2 nvarchar(200),@DML3 nvarchar(200),@DML4 nvarchar(200),@DML5 nvarchar(200),@DML6 nvarchar(200),

@DML7 nvarchar(200),@DML8 nvarchar(200),@DML9 nvarchar(200),@DML10 nvarchar(200),@DML11 nvarchar(200),@DML12 nvarchar(800),

@DML13 nvarchar(2000),@LoopStatus int,@RowId int,@dbname_1 varchar(100)'

CREATE TABLE #growthRate

(

SlNo int identity(1,1) primary key,

DatabaseName varchar(25),

Databasesize DECIMAL(10,2),

UnallocatedSpace DECIMAL(10,2),

Reserved INT,

Data INT,

Indexsize INT,

unused INT

)

CREATE TABLE #spt_space

(

rows INT NULL,

reserved DEC(15) NULL,

DATA DEC(15) NULL,

indexp DEC(15) NULL,

unused DEC(15) NULL

)

CREATE TABLE #Database_List

(

id int identity(1,1) PRIMARY KEY,

DatabaseName VARCHAR(200)

)

INSERT INTO #Database_List VALUES('pubs')

INSERT INTO #Database_List VALUES('Load')

INSERT INTO #Database_List VALUES('Hist')

--INSERT INTO #Database_List VALUES('Tempdb')

SET @dbsize=1

SET @logsize=1

SET @bytesperpage=1

SET @pagesperMB=1

SET @pages=1

SET @LoopStatus=1

SET @RowId=1

WHILE( @LoopStatus<>0)

BEGIN

SELECT @dbname_1=DatabaseName FROM #Database_List WHERE id=@RowId

IF @@ROWCOUNT=0

BEGIN

SET @LoopStatus=0

END

ELSE

BEGIN

TRUNCATE TABLE #spt_space

SET @DML2='SELECT @dbsize = sum(convert(DEC(15),size)) FROM dbo.sysfiles WHERE (status & 64 = 0)'+CHAR(13)

SET @DML3='SELECT @logsize = sum(convert(DEC(15),size))FROM dbo.sysfiles WHERE (status & 64 <> 0)'+CHAR(13)

SET @DML4='SELECT @bytesperpage = low

FROM master.dbo.spt_values

WHERE number = 1 and type = ''E'''+CHAR(13)

SET @DML5='SELECT @pagesperMB = 1048576 / @bytesperpage'+char(13)

SET @DML6='INSERT INTO #spt_space (reserved) SELECT sum(convert(DEC(15),reserved)) FROM sysindexes WHERE indidin (0, 1, 255)'+CHAR(13)

SET @DML7='SELECT @pages = sum(convert(DEC(15),dpages)) FROM sysindexes WHERE indid < 2'+CHAR(13)

SET @DML8='SELECT @pages = @pages + ISNULL(sum(convert(DEC(15),used)), 0) FROM sysindexes WHERE indid = 255'+CHAR(13)

SET @DML9='

UPDATE #spt_space

SET DATA =@pages'+CHAR(13)

SET @DML10='

UPDATE #spt_space

SET indexp = (SELECT sum(convert(DEC(15),used)) FROM sysindexes WHERE indid in (0, 1, 255)) - DATA'+CHAR(13)

SET @DML11='

UPDATE #spt_space

SET unused = reserved - (SELECT sum(convert(DEC(15),used))

FROM sysindexes WHERE indid in (0, 1, 255))'+CHAR(13)

SET @DML12='

INSERT INTO #growthRate(DatabaseName,Databasesize ,UnallocatedSpace,Reserved,Data,Indexsize,unused)

SELECT

DatabaseName = db_name(),

DatabaseSize = ltrim(str((@dbsize + @logsize) / @pagesperMB,15,2)),

unallocatedspace = ltrim(str((@dbsize - (SELECT sum(convert(DEC(15),reserved))FROM sysindexes WHERE indid in(0, 1, 255))) / @pagesperMB,15,2)),

Reserved = ltrim(str(reserved * d.low / 1024,15,0)),

Data = ltrim(str(DATA * d.low / 1024,15,0)),

IndexSize = ltrim(str(indexp * d.low / 1024,15,0)),

Unused = ltrim(str(unused * d.low / 1024,15,0))

FROM

#spt_space, master.dbo.spt_values d

WHERE

d.number = 1 AND d.type = ''E'''

SET @DML1='USE'+' '+@dbname_1+ char(13)+ char(13)+@DML14+char(13)+Char(13)

SET @DML13=@DML1+@DML2+@DML3+@DML4+@DML5+@DML6+@DML7+@DML8+@DML9+@DML10+@DML11+@DML12

EXEC sp_executesql @DML13

END

SET @RowId=@RowId+1

END

SELECT * FROM #growthRate

DROP TABLE #spt_space

DROP TABLE #growthRate

DROP TABLE #Database_List

Displaying all user defined table usage information

This process is useful in monitoring table growth over time and lets you see what tables are growing rapidly also help in estimating future growth and disk space requirements. The SQL output can be stored in a table which allows us to estimate future growth and helps in forecasting the disk space requirement over time.

USE <DBNAME>

GO

DECLARE @PageSize float

select @PageSize=v.low/1024.0 from master.dbo.spt_values v where v.number=1 and v.type='E'

SELECT

object_Name(i.object_id) as [name]

,p.rows

,Convert(varchar(50),@PageSize * SUM(total_pages)) + ' KB' as [reserved]

,Convert(varchar(50),@PageSize * SUM(CASE WHEN a.type <> 1 THEN a.used_pages WHEN p.index_id < 2 THEN a.data_pages ELSE0 END)) + ' KB' as [data]

,Convert(varchar(50),@PageSize * SUM(a.used_pages - CASE WHEN a.type <> 1 THEN a.used_pages WHEN p.index_id < 2 THENa.data_pages ELSE 0 END)) + ' KB' as [index_size]

,Convert(varchar(50),@PageSize * SUM(total_pages-used_pages)) + ' KB' as [unused]

FROM sys.indexes as i

JOIN sys.partitions as p ON p.object_id = i.object_id and p.index_id = i.index_id

JOIN sys.allocation_units as a ON a.container_id = p.partition_id

JOIN sys.tables t ON i.object_id=t.object_id

Where i.type<=1 and a.type=1

and

t.type='U' and is_ms_shipped=0

GROUP BY i.object_id,p.rows

OUTPUT:-

Conclusion

Capture the database and table usage data which ease out to asses on-going demand and leaves out room for future growth
Better understanding of data and file growth at granular level
Easily analyze the growth trend for various pattern such as linear, non-linear and Exponential growth
We can estimate the requirement and do a better forecasting
One place to get sp_spaceused output into single result set for all SQL version

Reference

Posted in SQL | Tagged DMV's, sp_spaceUsed | Leave a comment

SQL – How to Find Missing Sequence in a table

Posted on December 23, 2014 by Prashanth Jayaram

Problem statement:-

A table with identity column have ‘n’ rows in that few rows are deleted. How to find which rows are deleted?

Download code :- MissingRows

Solution:-

create table MissingRowDemo (a int);

insert into MissingRowDemo values (7001);
insert into MissingRowDemo values (7002);
insert into MissingRowDemo values (7004);
insert into MissingRowDemo values (7005);
insert into MissingRowDemo values (7006);
insert into MissingRowDemo values (7010);


WITH Missing (missnum, maxid)
AS
(
 SELECT  (select min(a) missnum from MissingRowDemo) , (select max(a) from MissingRowDemo)
 UNION ALL
 SELECT missnum + 1, maxid FROM Missing
 WHERE missnum < maxid
)
SELECT missnum
FROM Missing
LEFT OUTER JOIN MissingRowDemo tt on tt.a = Missing.missnum
WHERE tt.a is NULL
OPTION (MAXRECURSION 0);

Output:-

Posted in Uncategorized | 5 Comments

Capturing DB Usage stats – sp_spaceused simulation using DMV’s.

Posted on November 24, 2014 by Prashanth Jayaram

SP_SPACEUSED

sp_spaceused is one of the system stored procedure used frequently by many dba’s that reveals amount of space used by database/tables. This procedure can be executed either by passing parameters or no parameters. The objective of this stored proc is to measure the amount of space consumed by database or tables.

OBJECTIVE

The process is useful in monitoring DB growth over time and lets you see what databases are growing rapidly also help in estimating future growth and disk space requirements. The SQL output can be stored in a table which allows us to estimate future growth and helps in forecasting the disk space requirement over time. In some cases the results are not accurate and it requires update system views.

Download the code :-

SQL CODE

Please refer the below link for more information :-

capturing-all-db-s-dbtable-usage-stats-sp-spaceused-simulation-using-dmvs

SQL

--Displaying the usage details of all the databases.
DECLARE @allocation_table table
(
      dbname sysname,
      reservedpages int,
      usedpages int,
      pages int
)

INSERT INTO @allocation_table
EXEC sp_MSforeachdb N'IF EXISTS
(
   SELECT 1 FROM SYS.DATABASES WHERE name = ''?'' AND  NAME NOT IN(''master'',''msdb'',''model'',''tempdb'') and STATE=0
    --customize to monitor specific databases
   -- SELECT 1 FROM SYS.DATABASES WHERE name = ''?'' AND  NAME IN(''EMPLOYEE'') and STATE=0
)
BEGIN
     SELECT
        ''?'',
            SUM(a.total_pages) as reservedpages,
            SUM(a.used_pages) as usedpages,
            SUM(
                CASE
                    -- XML-Index and FT-Index internal tables are not considered "data", but is part of "index_size"
                    When it.internal_type IN (202,204,211,212,213,214,215,216) Then 0
                    When a.type <> 1 Then a.used_pages
                    When p.index_id < 2 Then a.data_pages
                    Else 0
                END
            ) as pages
        from ?.sys.partitions p join ?.sys.allocation_units a on p.partition_id = a.container_id
        left join ?.sys.internal_tables it on p.object_id = it.object_id
END';


SELECT
        -- from first result set of 'exec sp_spacedused'
        db_name(sf.database_id) as [database_name]
        ,ltrim(str((convert (dec (15,2),sf.dbsize) + convert (dec (15,2),sf.logsize)) * 8192 / 1048576,15,2) + ' MB') as [database_size]
        ,ltrim(str((case when sf.dbsize >= pages.reservedpages then
            (convert (dec (15,2),sf.dbsize) - convert (dec (15,2),pages.reservedpages))
            * 8192 / 1048576 else 0 end),15,2) + ' MB') as [unallocated space]
        -- from second result set of 'exec sp_spacedused'
        ,ltrim(str(pages.reservedpages * 8192 / 1024.,15,0) + ' KB') as [reserved]
        ,ltrim(str(pages.pages * 8192 / 1024.,15,0) + ' KB') as data
        ,ltrim(str((pages.usedpages - pages.pages) * 8192 / 1024.,15,0) + ' KB') as index_size
        ,ltrim(str((pages.reservedpages - pages.usedpages) * 8192 / 1024.,15,0) + ' KB') as unused
        -- additional columns data and Log Size
        ,ltrim(str((convert (dec (15,2),sf.dbsize)) * 8192 / 1048576,15,2) + ' MB')  as dbsize
        ,ltrim(str((convert (dec (15,2),sf.logsize)) * 8192 / 1048576,15,2) + ' MB')  as logsize
    FROM (
        select
                  database_id,
            sum(convert(bigint,case when type = 0 then size else 0 end)) as dbsize,
            sum(convert(bigint,case when type <> 0 then size else 0 end)) as logsize
        from sys.master_files
        group by database_id
    ) sf,
    (
    SELECT
            dbname,
            reservedpages,
            usedpages,
            pages
            FROM @ALLOCATION_TABLE
      ) pages
  WHERE DB_NAME(sf.database_id)=pages.dbname

Capturing details in a permanent table of all databases using DMV’s

The information that we gather contains guidelines to help you plan and configure the storage and SQL Server database

SQL


--Storing allocation details of all the databases.

--The table  tb_SpaceUsed is created to gather the details peroidically

CREATE TABLE tb_SpaceUsed
(
Database_Name sysname,
database_sizeMB decimal(7,2),
Unallocated_SpaceMB decimal(7,2),
reservedKB int,
dataKB int,
Index_SizeKB int,
unusedKB int,
dbSizeMB decimal(7,2),
logSizeMB decimal(7,2),
logdate int default(CONVERT(varchar(10), getdate(),112))
)

--@allocation_table variable is used to gather allocation units details of all the databases

DECLARE @allocation_table table
(
    dbname sysname,
    reservedpages int,
    usedpages int,
    pages int
)
INSERT INTO @allocation_table
EXEC sp_MSforeachdb N'IF EXISTS
(
    SELECT 1 FROM SYS.DATABASES WHERE name = ''?'' AND  NAME NOT IN(''master'',''msdb'',''model'',''tempdb'') and STATE=0
    --customize to monitor specific databases
    --SELECT 1 FROM SYS.DATABASES WHERE name = ''?'' AND  NAME IN(''EMPLOYEE'') and STATE=0
)
BEGIN
     SELECT
        ''?'',
            SUM(a.total_pages) as reservedpages,
            SUM(a.used_pages) as usedpages,
            SUM(
                CASE
                    -- XML-Index and FT-Index internal tables are not considered "data", but is part of "index_size"
                    When it.internal_type IN (202,204,211,212,213,214,215,216) Then 0
                    When a.type <> 1 Then a.used_pages
                    When p.index_id < 2 Then a.data_pages
                    Else 0
                END
            ) as pages
        from ?.sys.partitions p join ?.sys.allocation_units a on p.partition_id = a.container_id
        left join ?.sys.internal_tables it on p.object_id = it.object_id
END';

--Inserting the db usage information to tb_SpaceUsed table

SELECT
        -- from first result set of 'exec sp_spacedused'
        db_name(sf.database_id) as [database_name]
        ,ltrim(str((convert (dec (15,2),sf.dbsize) + convert (dec (15,2),sf.logsize)) * 8192 / 1048576,15,2) ) as [database_size]
        ,ltrim(str((case when sf.dbsize >= pages.reservedpages then
            (convert (dec (15,2),sf.dbsize) - convert (dec (15,2),pages.reservedpages))
            * 8192 / 1048576 else 0 end),15,2) ) as [unallocated space]

        -- from second result set of 'exec sp_spacedused'
        ,ltrim(str(pages.reservedpages * 8192 / 1024.,15,0) ) as [reserved]
        ,ltrim(str(pages.pages * 8192 / 1024.,15,0) ) as data
        ,ltrim(str((pages.usedpages - pages.pages) * 8192 / 1024.,15,0) ) as index_size
        ,ltrim(str((pages.reservedpages - pages.usedpages) * 8192 / 1024.,15,0) ) as unused

        -- additional columns data and Log Size
        ,ltrim(str((convert (dec (15,2),sf.dbsize)) * 8192 / 1048576,15,2) )  as dbsize
        ,ltrim(str((convert (dec (15,2),sf.logsize)) * 8192 / 1048576,15,2))  as logsize
    FROM (
        select
            database_id,
            sum(convert(bigint,case when type = 0 then size else 0 end)) as dbsize,
            sum(convert(bigint,case when type <> 0 then size else 0 end)) as logsize
        from sys.master_files
        group by database_id
    ) sf,
    (
    SELECT
        dbname,
        reservedpages,
        usedpages,
        pages
        FROM @ALLOCATION_TABLE
      ) pages
  WHERE DB_NAME(sf.database_id)=pages.dbname

 --Displaying the output

 select * from tb_SpaceUsed

Posted in SQL | Tagged sp_space single resultset, sp_spaceused usingDMV's, sys.internal_tables | 2 Comments

Determine size of the file using T-SQL/Powershell/Ole Objects

Posted on November 7, 2014 by Prashanth Jayaram

There are many ways to find the filesize.

This post is all about identifing the filesize using T-SQL,Instantiating OLE Objects and PowerShell. The requirement is to retrieve the size of the specified file.

The return value is going to a floating point value. The details and script are given below

Download the code:- https://gallery.technet.microsoft.com/Determine-size-of-the-file-72f48e3a

T-SQL:

SQL

Edit|Remove

declare @line varchar(255)
declare @path varchar(255)
declare @command varchar(255)

create table #output (line varchar(255))

set @path = 'C:\Appleton Papers - 23 SQL DM - dani 6.28.13.pdf'
set @command = 'dir "' + @path +'"'

insert into #output
exec master.dbo.xp_cmdshell @command

select @line = ltrim(replace(substring(line, charindex(')', line)+1,len(line)), ',', ''))
from #output where line like '%File(s)%bytes'

print cast(replace(@line,'bytes','') as float)/1024
drop table #output

PowerShell:-

PowerShell

Edit|Remove

Function filesize
{
param([String] $path)
try {
if(Test-Path $path)
{
$size=(Get-Item $path).length/1024
write-host "$path size is $size KB"
}
}
catch [System.Exception]
{
write-host "File not found"
}
}
PS P:\> filesize -path "C:\Appleton Papers - 23 SQL DM - dani 6.28.13.pdf"

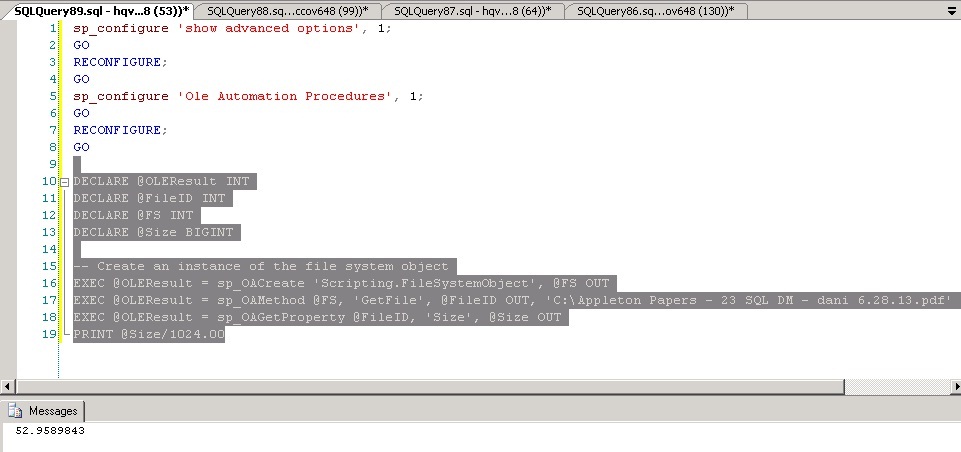

Instantiate OLE Objects

You can refer the below link for more information

http://msdn.microsoft.com/en-us/library/ms175079.aspx

PowerShell

Edit|Remove

sp_configure 'show advanced options', 1;
GO
RECONFIGURE;
GO
sp_configure 'Ole Automation Procedures', 1;
GO
RECONFIGURE;
GO

DECLARE @OLEResult INT
DECLARE @FileID INT
DECLARE @FS INT
DECLARE @Size BIGINT

-- Create an instance of the file system object
EXEC @OLEResult = sp_OACreate 'Scripting.FileSystemObject', @FS OUT
EXEC @OLEResult = sp_OAMethod @FS, 'GetFile', @FileID OUT, 'C:\Appleton Papers - 23 SQL DM - dani 6.28.13.pdf'
EXEC @OLEResult = sp_OAGetProperty @FileID, 'Size', @Size OUT
print @Size/1024.00

Posted in PowerShell, SQL, T-SQL | Tagged find file size, Get-Item, length, sp_OACreate and sp_OAGetProperty, T-SQL ole objects, try and catch | Leave a comment

PowerShell- Monitor Group Of Services on ‘N’ Servers & Notify Stopped Services

Posted on November 6, 2014 by Prashanth Jayaram

This post explains how to monitor multiple services on a list of servers and send an alert when the given service is in a stopped state. This script will allow you to read a list of servers from the input file and establish a connection to all remote servers to pull service status. Notify users Only when the listed services are not running and send an alert to all intended recipients

The function Get- ServiceSQLAlert does the following action

Connect to remote server and loops through each server
Accepts more than one services
Concatenate the output into HTML tags
Sends notification only when there is any given services are stopped

The Function Get- ServiceSQLAlert contains five parameters

ComputerList – List of Servers
ServiceName – Name of Services separated by comma
SMTPMail – SMTP mail address
FromID – Valid Email ID
ToID – Valid Email ID

Download the script :- https://gallery.technet.microsoft.com/PowerShell-Monitor-Notify-a5fe1538

Sample Call:-

PS:\>Get-ServiceSQLAlert
-ComputerList C:\server.txt
-includeService  SQLSERVERAGENT,MSSQLSERVER
-To pjayaram@vion.com
-From pjayaram@vion.com -SMTPMail  app.mail.com

Code:-

Function Get-ServiceSQLAlert
{
param(
[String]$ComputerList,[String[]]$includeService,[String]$To,[String]$From,[string]$SMTPMail
)
$script:list = $ComputerList
#Make sure to check write acess on c:\ drive. if not, change the path
$ServiceFileName= "c:\ServiceFileName.htm"
New-Item -ItemType file $ServiceFilename -Force
# Function to write the HTML Header to the file
Function writeHtmlHeader
{
param($fileName)
$date = ( get-date ).ToString('yyyy/MM/dd')
Add-Content $fileName "<html>"
Add-Content $fileName "<head>"
Add-Content $fileName "<meta http-equiv='Content-Type' content='text/html; charset=iso-8859-1'>"
Add-Content $fileName '<title>Service Status Report </title>'
add-content $fileName '<STYLE TYPE="text/css">'
add-content $fileName  "<!--"
add-content $fileName  "td {"
add-content $fileName  "font-family: Tahoma;"
add-content $fileName  "font-size: 11px;"
add-content $fileName  "border-top: 1px solid #999999;"
add-content $fileName  "border-right: 1px solid #999999;"
add-content $fileName  "border-bottom: 1px solid #999999;"
add-content $fileName  "border-left: 1px solid #999999;"
add-content $fileName  "padding-top: 0px;"
add-content $fileName  "padding-right: 0px;"
add-content $fileName  "padding-bottom: 0px;"
add-content $fileName  "padding-left: 0px;"
add-content $fileName  "}"
add-content $fileName  "body {"
add-content $fileName  "margin-left: 5px;"
add-content $fileName  "margin-top: 5px;"
add-content $fileName  "margin-right: 0px;"
add-content $fileName  "margin-bottom: 10px;"
add-content $fileName  ""
add-content $fileName  "table {"
add-content $fileName  "border: thin solid #000000;"
add-content $fileName  "}"
add-content $fileName  "-->"
add-content $fileName  "</style>"
Add-Content $fileName "</head>"
Add-Content $fileName "<body>"

add-content $fileName  "<table width='100%'>"
add-content $fileName  "<tr bgcolor='#CCCCCC'>"
add-content $fileName  "<td colspan='4' height='25' align='center'>"
add-content $fileName  "<font face='tahoma' color='#003399' size='4'><strong>Service Stauts Alert - $date</strong></font>"
add-content $fileName  "</td>"
add-content $fileName  "</tr>"
add-content $fileName  "</table>"

}

# Function to write the HTML Header to the file
Function writeTableHeader
{
param($fileName)

Add-Content $fileName "<tr bgcolor=#CCCCCC>"
Add-Content $fileName "<td width='10%' align='center'>ServerName</td>"
Add-Content $fileName "<td width='50%' align='center'>Service Name</td>"
Add-Content $fileName "<td width='10%' align='center'>status</td>"
Add-Content $fileName "</tr>"
}

Function writeHtmlFooter
{
param($fileName)

Add-Content $fileName "</body>"
Add-Content $fileName "</html>"
}

Function writeDiskInfo
{
param($filename,$Servername,$name,$Status)
if( $status -eq "Stopped")
{
 increment $global:a
 Add-Content $fileName "<tr>"
 Add-Content $fileName "<td bgcolor='#FF0000' align=left ><b>$servername</td>"
 Add-Content $fileName "<td bgcolor='#FF0000' align=left ><b>$name</td>"
 Add-Content $fileName "<td bgcolor='#FF0000' align=left ><b>$Status</td>"
 Add-Content $fileName "</tr>"
}

}

$global:a=0

function increment {
  $global:a++
}


writeHtmlHeader $ServiceFileName
 Add-Content $ServiceFileName "<table width='100%'><tbody>"
 Add-Content $ServiceFileName "<tr bgcolor='#CCCCCC'>"
 Add-Content $ServiceFileName "<td width='100%' align='center' colSpan=3><font face='tahoma' color='#003399' size='2'><strong> Service Details</strong></font></td>"
 Add-Content $ServiceFileName "</tr>"

 writeTableHeader $ServiceFileName


#Change value of the following parameter as needed

$InlcudeArray=@()


#List of programs to exclude
#$InlcudeArray = $inlcudeService

Foreach($ServerName in (Get-Content $script:list))
{
if(Test-Connection -ComputerName $ServerName -Count 1 -ea 0) {
$service = Get-Service -ComputerName $ServerName
if ($Service -ne $NULL)
{
foreach ($item in $service)
 {
 #$item.DisplayName
 Foreach($include in $includeService)
     {
 write-host $inlcude
 if(($item.serviceName).Contains($include) -eq $TRUE)
    {
    Write-Host  $item.MachineName $item.name $item.Status
    writeDiskInfo $ServiceFileName $item.MachineName $item.name $item.Status
    }
    }
}
 }
}
}


Add-Content $ServiceFileName "</table>"

writeHtmlFooter $ServiceFileName


Function sendEmail
{
param($from,$to,$subject,$smtphost,$htmlFileName)
[string]$receipients="$to"
$body = Get-Content $htmlFileName
$body = New-Object System.Net.Mail.MailMessage $from, $receipients, $subject, $body
$body.isBodyhtml = $true
$smtpServer = $MailServer
$smtp = new-object Net.Mail.SmtpClient($smtphost)
$smtp.Send($body)

}

$date = ( get-date ).ToString('yyyy/MM/dd')


if ($global:a -ge 1)
{
$date = ( get-date ).ToString('yyyy/MM/dd')
sendEmail -from $From -to $to -subject "Service Status - $Date" -smtphost $SMTPMail -htmlfilename $ServiceFilename
}

}

Demo:

Add the Servers in the Server.txt

-ComputerList Parameter – C:\Server.txt consists of one server – HQVD0026.

Stop SQL Server

IncludeService Parameter– In this case searching for SQLServer and Agent Services hence the servicenames are given as its inputSQLSERVERAGENT,MSSQLSERVER

-To Parameter – Valid email Id or Id’s

-From Parameter – Valid email id

-SMTPMail – Valid SMTP Mail Server name

PowerShell

ps:\>Get-ServiceSQLAlert -ComputerList C:\server.txt -includeService  SQLSERVERAGENT,MSSQLSERVER
-To pj@vion.com -From pj@vion.com -SMTPMail ap.com

Output-

Posted in PowerShell | Tagged Email Alert in Powershell, Get-Service., monitor multiple services, Powershell Email | 6 Comments

T-SQL – Scripting Stored Procedure to Create backup copy on same database

Posted on October 14, 2014 by Prashanth Jayaram

This post is one of the request from OP.

Download SQL Backup SP in the same database

The probelm statement 1:-

Create a backup copy of a group of stored procedures on the same database. Using TSQL I need to find all stored procedures that meet a criteria (WHERE pr.name = ‘%_SomeSuffix’) and create that same procedure in the same database with a different name (‘%_SomeSuffix_BAK).

DECLARE @sql nvarchar(max)
DECLARE @Name varchar(100)='AdventureWorks2008'
 DECLARE c CURSOR FOR
  SELECT
        replace(mod.definition,pr.name,pr.name+'_BAK')
FROM sys.procedures pr
INNER JOIN sys.sql_modules mod ON pr.object_id = mod.object_id
WHERE pr.Is_MS_Shipped = 0 AND pr.name LIKE '%PROC_RowCount'

OPEN c

FETCH NEXT FROM c INTO @sql

WHILE @@FETCH_STATUS = 0
BEGIN
   SET @sql = REPLACE(@sql,'''','''''')
   SET @sql = 'USE [' + @Name + ']; EXEC(''' + @sql + ''')'

   EXEC(@sql)

   FETCH NEXT FROM c INTO @sql
END

CLOSE c
DEALLOCATE c

The probelm statement 2:-

Create a backup copy of a group of stored procedures on the same database. Using TSQL I need to find all stored procedures that meet a criteria (WHERE definition = ‘%_SomeSuffix’) and create that same procedure in the same database with a different name (ProcName_BAK).

uspGetBillOfMaterials has the following search pattern in the definition

WITH[BOM_cte]

DECLARE @sql nvarchar(max)
DECLARE @Name varchar(100)='AdventureWorks2008'
 DECLARE c CURSOR FOR
SELECT
        replace(mod.definition,pr.name,pr.name+'_BAK')
FROM sys.procedures pr
INNER JOIN sys.sql_modules mod ON pr.object_id = mod.object_id
WHERE pr.Is_MS_Shipped = 0 AND mod.definition  LIKE '%WITH [BOM_cte]%'

OPEN c

FETCH NEXT FROM c INTO @sql

WHILE @@FETCH_STATUS = 0
BEGIN
   SET @sql = REPLACE(@sql,'''','''''')
   SET @sql = 'USE [' + @Name + ']; EXEC(''' + @sql + ''')'

   EXEC(@sql)

   FETCH NEXT FROM c INTO @sql
END

CLOSE c
DEALLOCATE c

Output

Posted in SQL, T-SQL | Tagged backup stored procedure, mod.definition, sys.procedures, sys.sql_modules | Leave a comment

SQL – List Primary key and Concatenate composite Keys into a single row separed by comma

Posted on September 10, 2014 by Prashanth Jayaram

The following query lists all the Primary keys of all the table.

OP has requested to list all PK and composite PKs and concatenate all it’s composite PK column values into a single row separated by comma hence this post.

SELECT TAB.TABLE_NAME,COL.COLUMN_NAME
FROM
    INFORMATION_SCHEMA.TABLE_CONSTRAINTS TAB,
    INFORMATION_SCHEMA.CONSTRAINT_COLUMN_USAGE COL
WHERE
    COL.CONSTRAINT_NAME = TAB.CONSTRAINT_NAME
    AND COL.TABLE_NAME = TAB.TABLE_NAME
    AND CONSTRAINT_TYPE = 'PRIMARY KEY'

In the above screenshot the invoices and PK_TEST table has composite PK’s. Query to get the Composite PKs in a single row separated by comma

SELECT TABLENAME,
       LEFT(COL,LEN(COL)-1) AS COLUMN_NAME
FROM
(
        SELECT DISTINCT TAB.TABLE_NAME TABLENAME,
            (
            SELECT COL.COLUMN_NAME +','  AS [text()]
            FROM INFORMATION_SCHEMA.CONSTRAINT_COLUMN_USAGE COL
            WHERE
                COL.CONSTRAINT_NAME = TAB.CONSTRAINT_NAME AND COL.TABLE_NAME = TAB.TABLE_NAME AND CONSTRAINT_TYPE = 'PRIMARY KEY'
             FOR XML PATH ('')
            ) COL
FROM INFORMATION_SCHEMA.TABLE_CONSTRAINTS TAB
 )T
 where T.COL is NOT NULL

Posted in SQL | Tagged Concatenate column values into a single row, INFORMATION_SCHEMA.CONSTRAINT_COLUMN_USAGE, INFORMATION_SCHEMA.TABLE_CONSTRAINTS TAB, Primary key | 3 Comments

USING SQL & POWERSHELL – Different Methods to List Databases WITH Recovery Models

Posted on August 15, 2014 by Prashanth Jayaram

USING POWERSHELL TO LIST SQLSERVER USER DATABASES WITH RECOVERY MODELS

One of op requested to list all the user defined databases where it has been configured with simple recovery model across ‘N’ servers.There are many ways to achieve the requirement.

You can query sys.databases with sqlcmd utility to list all the details

SQL

select name,recovery_model_desc from sys.databases where database_id > 4 and recovery_model_desc='SIMPLE'

SQL

Master..xp_cmdshell 'for /f %j in (cservers.txt ) do sqlcmd -S %j
-Q "select name,recovery_model_desc from sys.databases where database_id > 4 and recovery_model_desc=''SIMPLE''"
-E'

Download the code: –

http://gallery.technet.microsoft.com/USING-POWERSHELL-TO-LIST-452d1692

Output:-

Using Powershell

The function Get-RecoveryModel has three input parameters

InputFile – List contains all the servers
Recoverymodel – type of the recovery model that you want to do a search
Database Flag – (TRUE OR FALSE – Include or exclude system databases )

PowerShell Script

<#
.SYNOPSIS
    USING POWERSHELL TO LIST SQLSERVER USER DATABASES WITH SIMPLE RECOVERY
.DESCRIPTION
    The function call requires three parameters Inputfile, RecoveryModel(Full,simple,bulklogged) and Database flag ($TRUE=System Database,$FALSE=User Database)
.EXAMPLE
    1.PS:\>Get-RecoveryModel -InputFile F:\PowerSQL\Server.txt -RecoveryModel "SIMPLE" -DatabaseFlag $FALSE
    2.PS:\>Get-RecoveryModel -InputFile F:\PowerSQL\Server.txt -RecoveryModel "FULL" -DatabaseFlag $TRUE
.NOTES
    Author     : Powershellsql@gmail.com
.LINK
    https://sqlpowershell.wordpress.com/
#>


Function Get-RecoveryModel
{
param(
    $InputFile,
    $RecoveryModel,
    $DatabaseFlag
)

[System.Reflection.Assembly]::LoadWithPartialName("Microsoft.SqlServer.SMO") | Out-Null

 ForEach ($instance in Get-Content $InputFile)
{
       $s = New-Object ('Microsoft.SqlServer.Management.Smo.Server') $instance
       $dbs=$s.Databases| where {$_.RecoveryModel -like "$RecoveryModel" -and  $_.IsSystemObject -eq $DatabaseFlag }
       $dbs | select @{Name="ServerName"; Expression = {$Instance}}, Name, RecoveryModel
}
}

Function call:-

PS:\>Get-RecoveryModel -InputFile F:\PowerSQL\Server.txt -RecoveryModel "SIMPLE" -DatabaseFlag $FALSE
PS:\>Get-RecoveryModel -InputFile F:\PowerSQL\Server.txt -RecoveryModel "FULL" -DatabaseFlag $TRUE

Converting the output to HTML

$OutputFile = "F:\PowerSQL\RecoveryModel.htm"
$ServerList = "F:\PowerSQL\Server.txt"

$a = ""
$a = $a + "BODY{background-color:peachpuff;}"
$a = $a + "TABLE{border-width: 1px;border-style: solid;border-color: black;border-collapse: collapse;}"
$a = $a + "TH{border-width: 1px;padding: 0px;border-style: solid;border-color: black;background-color:thistle}"
$a = $a + "TD{border-width: 1px;padding: 0px;border-style: solid;border-color: black;background-color:palegoldenrod}"
$a = $a + ""

Function Get-RecoveryModel
{
param(
    $InputFile,
    $RecoveryModel,
    $DatabaseFlag
)

[System.Reflection.Assembly]::LoadWithPartialName("Microsoft.SqlServer.SMO") | Out-Null

 ForEach ($instance in Get-Content $InputFile)
{
       $s = New-Object ('Microsoft.SqlServer.Management.Smo.Server') $instance
       $dbs=$s.Databases| where {$_.RecoveryModel -like "$RecoveryModel" -and  $_.IsSystemObject -eq $DatabaseFlag }
       $dbs | select @{Name="ServerName"; Expression = {$Instance}}, Name, RecoveryModel
}
}

Get-RecoveryModel -InputFile $ServerList -RecoveryModel "SIMPLE" -DatabaseFlag $FALSE|ConvertTo-HTML -head $a -body "<H2>Database Recovery Model Information</H2>" | Out-File $OutputFile

Output:-

Posted in Uncategorized | 3 Comments

PowerShell- Monitoring Group Of Services on Group of Servers with Alternate Credential

Posted on July 3, 2014 by Prashanth Jayaram

This post explains how to monitor a multiple services on a group of servers with alternate credentials.

This script will allow you to read a list of servers from the input file and use credentials to connect remote/DMZ servers to pull service status information for a set of specific services and send services status information to all intended recipients

Get-Service cmdlet don’t accept credentials parameter hence I’ve used win32_service win32 class which accepts the credential parameter. You need to comment or uncomment the required portion of code.

Most of the time it’s not good practice to hard code the credentials. In that case you might need encrypt the password and use the secured code in the script. You need to run the below Powershell script to pull the encrypted password to c:\SecurePassword.txt and copy code in the script.

$password = read-host -prompt "Enter your Password"
$secure = ConvertTo-SecureString $password -force -asPlainText
ConvertFrom-SecureString $secure |Out-File c:\SecurePassword.txt

In the below example, Test@2013##) password is encrypted and it’s content is shown below

There are some instance where you are OK to store the password in the script itself.

Refer the below screenshot and change the code according to your requirement

The Get-ServiceStatusReport

Credential to connect to DMZ server
HTML Ouptut
Email Address validation

The Function Get-ServiceStatusReport contains five parameters

ComputerList – List of Servers
ServiceName – Name of Services separated by comma
SMTPMail – SMTP mail address
FromID – Valid Email ID
ToID – Valid Email ID

Download the code

http://gallery.technet.microsoft.com/PowerShell-Group-Of-d0010648

Sample Call:-

Get-ServiceStatusReport -ComputerList C:\servers.txt -includeService “Dfs”,”Dhcp” -To <pjayaram@app.com> -From <pjayaram@app.com> -SMTPMail <SMTPMail>

Output:-

You can also refer the below link if you want to run the script with default account

PowerShell- Monitoring Multiple Services On Multiple Servers Using Win

PowerShell

<#
The Function Get-ServiceStatusReport contains five parameters

ComputerList – List of Servers
ServiceName – Name of Services separated by comma
SMTPMail – SMTP mail address
FromID – Valid Email ID
ToID – Valid Email ID

Sample Call:-

Get-ServiceStatusReport
-ComputerList C:\servers.txt
-includeService  "Dfs","Dhcp"
-To <pjayaram@app.com>
-From <pjayaram@app.com>
-SMTPMail <SMTPMail>
#>

Function Get-ServiceStatusReport
{
param(
[String]$ComputerList,[String[]]$includeService,[String]$To,[String]$From,[string]$SMTPMail
)

$script:list = $ComputerList

$ServiceFileName= "c:\ServiceFileName.htm"

New-Item -ItemType file $ServiceFilename -Force


# Enter the Credentials details
<#
$password = read-host -prompt "Enter your Password"
write-host "$password is password"
$secure = ConvertTo-SecureString $password -force -asPlainText
ConvertFrom-SecureString $secure |Out-File c:\SecurePassword.txt
#>

#Replace the $encrypted value from the contents of c:\SecurePassword.txt

$encrypted = "01000000d08c9ddf0115d1118c7a00c04fc297eb01000000efa85d14f32d8648a2d335e29d3f57f6b"
$user = "testwint"
$password = ConvertTo-SecureString -string $encrypted
$Credentials = new-object -typename System.Management.Automation.PSCredential -argumentlist $user,$password

<# Hard code the the Credentials details

$User = “testcog”
$Pass = ConvertTo-SecureString “testasd#%)” -AsPlainText -Force
#contain the username and password in a variable
$Credentials = New-Object -TypeName System.Management.Automation.PSCredential -ArgumentList $User,$Pass

#>

# Function to write the HTML Header to the file
Function writeHtmlHeader
{
param($fileName)
$date = ( get-date ).ToString('yyyy/MM/dd')
Add-Content $fileName "<html>"
Add-Content $fileName "<head>"
Add-Content $fileName "<meta http-equiv='Content-Type' content='text/html; charset=iso-8859-1'>"
Add-Content $fileName '<title>Service Status Report </title>'
add-content $fileName '<STYLE TYPE="text/css">'
add-content $fileName  "<!--"
add-content $fileName  "td {"
add-content $fileName  "font-family: Tahoma;"
add-content $fileName  "font-size: 11px;"
add-content $fileName  "border-top: 1px solid #999999;"
add-content $fileName  "border-right: 1px solid #999999;"
add-content $fileName  "border-bottom: 1px solid #999999;"
add-content $fileName  "border-left: 1px solid #999999;"
add-content $fileName  "padding-top: 0px;"
add-content $fileName  "padding-right: 0px;"
add-content $fileName  "padding-bottom: 0px;"
add-content $fileName  "padding-left: 0px;"
add-content $fileName  "}"
add-content $fileName  "body {"
add-content $fileName  "margin-left: 5px;"
add-content $fileName  "margin-top: 5px;"
add-content $fileName  "margin-right: 0px;"
add-content $fileName  "margin-bottom: 10px;"
add-content $fileName  ""
add-content $fileName  "table {"
add-content $fileName  "border: thin solid #000000;"
add-content $fileName  "}"
add-content $fileName  "-->"
add-content $fileName  "</style>"
Add-Content $fileName "</head>"
Add-Content $fileName "<body>"

add-content $fileName  "<table width='100%'>"
add-content $fileName  "<tr bgcolor='#CCCCCC'>"
add-content $fileName  "<td colspan='4' height='25' align='center'>"
add-content $fileName  "<font face='tahoma' color='#003399' size='4'><strong>Service Stauts Report - $date</strong></font>"
add-content $fileName  "</td>"
add-content $fileName  "</tr>"
add-content $fileName  "</table>"

}

# Function to write the HTML Header to the file
Function writeTableHeader
{
param($fileName)

Add-Content $fileName "<tr bgcolor=#CCCCCC>"
Add-Content $fileName "<td width='10%' align='center'>ServerName</td>"
Add-Content $fileName "<td width='50%' align='center'>Service Name</td>"
Add-Content $fileName "<td width='10%' align='center'>status</td>"
Add-Content $fileName "</tr>"
}

Function writeHtmlFooter
{
param($fileName)

Add-Content $fileName "</body>"
Add-Content $fileName "</html>"
}

Function writeDiskInfo
{
param($filename,$Servername,$name,$Status)
if( $status -eq "Stopped")
{
 Add-Content $fileName "<tr>"
 Add-Content $fileName "<td bgcolor='#FF0000' align=left ><b>$servername</td>"
 Add-Content $fileName "<td bgcolor='#FF0000' align=left ><b>$name</td>"
 Add-Content $fileName "<td bgcolor='#FF0000' align=left ><b>$Status</td>"
 Add-Content $fileName "</tr>"
}
else
{
Add-Content $fileName "<tr>"
 Add-Content $fileName "<td >$servername</td>"
 Add-Content $fileName "<td >$name</td>"
 Add-Content $fileName "<td >$Status</td>"
Add-Content $fileName "</tr>"
}

}




writeHtmlHeader $ServiceFileName
 Add-Content $ServiceFileName "<table width='100%'><tbody>"
 Add-Content $ServiceFileName "<tr bgcolor='#CCCCCC'>"
 Add-Content $ServiceFileName "<td width='100%' align='center' colSpan=3><font face='tahoma' color='#003399' size='2'><strong> Service Details</strong></font></td>"
 Add-Content $ServiceFileName "</tr>"

 writeTableHeader $ServiceFileName


#Change value of the following parameter as needed

$InlcudeArray=@()


#List of programs to include

#$InlcudeArray = $inlcudeService

Foreach($ServerName in (Get-Content $script:list))
{
$service = Get-WMIObject Win32_Service -computer $ServerName -credential $Credentials
if ($Service -ne $NULL)
{
foreach ($item in $service)
 {
 #$item.DisplayName
 Foreach($include in $includeService)
     {
 write-host $inlcude
 if(($item.Name).Contains($include) -eq $TRUE)
    {
    Write-Host  $item.MachineName $item.name $item.Status
    writeDiskInfo $ServiceFileName $ServerName $item.name $item.Status
    }
    }
 }
}
}


Add-Content $ServiceFileName "</table>"

writeHtmlFooter $ServiceFileName

function Validate-IsEmail ([string]$Email)
{

                return $Email -match "^(?("")("".+?""@)|(([0-9a-zA-Z]((\.(?!\.))|[-!#\$%&'\*\+/=\?\^`\{\}\|~\w])*)(?<=[0-9a-zA-Z])@))(?(\[)(\[(\d{1,3}\.){3}\d{1,3}\])|(([0-9a-zA-Z][-\w]*[0-9a-zA-Z]\.)+[a-zA-Z]{2,6}))$"
}


Function sendEmail
{
param($from,$to,$subject,$smtphost,$htmlFileName)
[string]$receipients="$to"
$body = Get-Content $htmlFileName
$body = New-Object System.Net.Mail.MailMessage $from, $receipients, $subject, $body
$body.isBodyhtml = $true
$smtpServer = $MailServer
$smtp = new-object Net.Mail.SmtpClient($smtphost)
$validfrom= Validate-IsEmail $from
if($validfrom -eq $TRUE)
{
$validTo= Validate-IsEmail $to
if($validTo -eq $TRUE)
{
$smtp.Send($body)
write-output "Email Sent!!"

}
}
else
{
write-output "Invalid entries, Try again!!"
}
}

$date = ( get-date ).ToString('yyyy/MM/dd')

sendEmail -from $From -to $to -subject "Service Status - $Date" -smtphost $SMTPMail -htmlfilename $ServiceFilename

}

Posted in Uncategorized | 1 Comment

PowerShell – Perfmon Counters into CSV File – Multiple remote servers

Posted on June 10, 2014 by Prashanth Jayaram

Introduction

This script can be used for exporting specified performance counter values from multiple remote target servers to CSV file. The challenge is to gather the specific counter information and append it to CSV file with Powershell2.0.

Performance counters

The script will pull the below mentioned counter values

Processor (_total)\% processor time
system\processor queue length
Memory\Available MBytes
Memory\% committed bytes in use
PhysicalDisk (*)\Current Disk Queue Length
PhysicalDisk (*)\Avg. Disk sec/Transfer
PhysicalDisk (*)\% Disk Time
PhysicalDisk (*)\Disk Read Bytes/sec
PhysicalDisk (*)\Disk Write Bytes/sec
Network Interface (*)\Bytes Total/sec

Scenarios

IT Administrators may want to analyze the performance the servers with the help of perfmon counters information’s.

Prerequisites

The source machine should have PowerShell 2.0 installed

Download the code:- http://gallery.technet.microsoft.com/PowerShell-Perfmon-0f013da8

Script

You can use this script in following ways:

1. Download the script.

2. Open the script file with Notepad or any other script editors (preferably Windows PowerShell ISE)

3. Change the Input file path and Output file if required other than the default location as shown in below screenshot.

4. Counters can be selected based on your requirement by changing the below code

5. Save the file then run the script via PowerShell in “Run as administrator” mode.

You can run this script manually or by scheduler task

How to create a scheduler task:

1. Open “Task Scheduler” (Goto START—RUN —Type Tasks and hit enter)

2. Click “Create task”

3. Pick a name, and choose “Run whether user is logged on or not”

Choose “Triggers” Tab, Click “New”

5. Specify option you like, and then click “OK” to create a trigger

Choose “Actions” tab, Click “New”

7. Copy following command to “Program/script” textbox, click C:\Windows\System32\WindowsPowerShell\v1.0\powershell.exe

8. Enter the path of the saved script file in “Add arguments (optionally)” textbox

As per the screenshot I saved the file under C:\Perform_script.ps1 hence I updated the add arguments text box as

C:\Perform_script.ps1; exit”

Code:

<#
# Script: Get-CounterStats
# Author: Prashanth and Praveen
# Comments: This script will collect the specific counters value from the multiple target machines/servers
which will be used to analayze the performance of target servers.
#>



#Define Input and output filepath

$servers=get-content "C:\servers.txt"
$outfile="C:\perfmon.csv"

################################################################################################################


################################################################################################################


#Actual script starts here

function Global:Convert-HString {
[CmdletBinding()]
 Param
   (
    [Parameter(Mandatory=$false,
               ValueFromPipeline=$true,
               ValueFromPipelineByPropertyName=$true)]
    [String]$HString
   )#End Param

Begin
{
    Write-Verbose "Converting Here-String to Array"
}#Begin
Process
{
    $HString -split "`n" | ForEach-Object {

        $ComputerName = $_.trim()
        if ($ComputerName -notmatch "#")
            {
                $ComputerName
            }


        }
}#Process
End
{
    # Nothing to do here.
}#End

}#Convert-HString


#Function to have the customized output in CSV format
function Export-CsvFile {
[CmdletBinding(DefaultParameterSetName='Delimiter',
  SupportsShouldProcess=$true, ConfirmImpact='Medium')]
param(
[Parameter(Mandatory=$true, ValueFromPipeline=$true,
           ValueFromPipelineByPropertyName=$true)]
[System.Management.Automation.PSObject]
${InputObject},

[Parameter(Mandatory=$true, Position=0)]
[Alias('PSPath')]
[System.String]
${Path},

#region -Append
[Switch]
${Append},
#endregion

[Switch]
${Force},

[Switch]
${NoClobber},

[ValidateSet('Unicode','UTF7','UTF8','ASCII','UTF32','BigEndianUnicode','Default','OEM')]
[System.String]
${Encoding},

[Parameter(ParameterSetName='Delimiter', Position=1)]
[ValidateNotNull()]
[System.Char]
${Delimiter},

[Parameter(ParameterSetName='UseCulture')]
[Switch]
${UseCulture},

[Alias('NTI')]
[Switch]
${NoTypeInformation})

begin
{
# This variable will tell us whether we actually need to append
# to existing file
$AppendMode = $false

 try {
  $outBuffer = $null
  if ($PSBoundParameters.TryGetValue('OutBuffer', [ref]$outBuffer))
  {
      $PSBoundParameters['OutBuffer'] = 1
  }
  $wrappedCmd = $ExecutionContext.InvokeCommand.GetCommand('Export-Csv',
    [System.Management.Automation.CommandTypes]::Cmdlet)


                #String variable to become the target command line
                $scriptCmdPipeline = ''

                # Add new parameter handling
                #region Dmitry: Process and remove the Append parameter if it is present
                if ($Append) {

                                $PSBoundParameters.Remove('Append') | Out-Null

  if ($Path) {
   if (Test-Path $Path) {
    # Need to construct new command line
    $AppendMode = $true

    if ($Encoding.Length -eq 0) {
     # ASCII is default encoding for Export-CSV
     $Encoding = 'ASCII'
    }

    # For Append we use ConvertTo-CSV instead of Export
    $scriptCmdPipeline += 'ConvertTo-Csv -NoTypeInformation '

    # Inherit other CSV convertion parameters
    if ( $UseCulture ) {
     $scriptCmdPipeline += ' -UseCulture '
    }
    if ( $Delimiter ) {
     $scriptCmdPipeline += " -Delimiter '$Delimiter' "
    }

    # Skip the first line (the one with the property names)
    $scriptCmdPipeline += ' | Foreach-Object {$start=$true}'
    $scriptCmdPipeline += '{if ($start) {$start=$false} else {$_}} '

    # Add file output
    $scriptCmdPipeline += " | Out-File -FilePath '$Path' -Encoding '$Encoding' -Append "

    if ($Force) {
     $scriptCmdPipeline += ' -Force'
    }

    if ($NoClobber) {
     $scriptCmdPipeline += ' -NoClobber'
    }
   }
  }
}



 $scriptCmd = {& $wrappedCmd @PSBoundParameters }

 if ( $AppendMode ) {
  # redefine command line
  $scriptCmd = $ExecutionContext.InvokeCommand.NewScriptBlock(
      $scriptCmdPipeline
    )
} else {
  # execute Export-CSV as we got it because
  # either -Append is missing or file does not exist
  $scriptCmd = $ExecutionContext.InvokeCommand.NewScriptBlock(
      [string]$scriptCmd
    )
}

# standard pipeline initialization
$steppablePipeline = $scriptCmd.GetSteppablePipeline($myInvocation.CommandOrigin)
$steppablePipeline.Begin($PSCmdlet)

 } catch {
   throw
}

}

process
{
  try {
      $steppablePipeline.Process($_)
  } catch {
      throw
  }
}

end
{
  try {
      $steppablePipeline.End()
  } catch {
      throw
  }
}

}

#Performance counters declaration

function Get-CounterStats {
param
    (
    [String]$ComputerName = $ENV:ComputerName

    )

$Object =@()


$Counter = @"
Processor(_total)\% processor time
system\processor queue length
Memory\Available MBytes
Memory\% committed bytes in use
PhysicalDisk(*)\Current Disk Queue Length
PhysicalDisk(*)\Avg. Disk sec/Transfer
PhysicalDisk(*)\% Disk Time
PhysicalDisk(*)\Disk Read Bytes/sec
PhysicalDisk(*)\Disk Write Bytes/sec
Network Interface(*)\Bytes Total/sec
"@

        (Get-Counter -ComputerName $ComputerName -Counter (Convert-HString -HString $Counter)).counterSamples |
        ForEach-Object {
        $path = $_.path
        New-Object PSObject -Property @{
        computerName=$ComputerName;
        Counter        = ($path  -split "\\")[-2,-1] -join "-" ;
        Item        = $_.InstanceName ;
        Value = [Math]::Round($_.CookedValue,2)
        datetime=(Get-Date -format "yyyy-MM-d hh:mm:ss")
        }

        }


}

#Collecting counter information for target servers

foreach($server in $Servers)
{
$d=Get-CounterStats -ComputerName $server |Select-Object computerName,Counter,Item,Value,datetime
$d |Export-CsvFile $outfile  -Append -NoTypeInformation

}

#End of Script

Output:-

Posted in Uncategorized | 9 Comments

Prashanth Jayaram

Capturing Database(s) and Table Usage stats – sp_spaceused simulation using DMVs

For more Information refer Technet Article

Introduction

Objective

SP_SPACEUSED – DATABASE

SP_SPACEUSED – TABLE

Permission

SQL

Customized code for specific database

Capturing details in a permanent table of databases using DMV’s

SQL 2000

Conclusion

Reference

SQL – How to Find Missing Sequence in a table

Capturing DB Usage stats – sp_spaceused simulation using DMV’s.

SP_SPACEUSED

Capturing details in a permanent table of all databases using DMV’s

Determine size of the file using T-SQL/Powershell/Ole Objects

PowerShell- Monitor Group Of Services on ‘N’ Servers & Notify Stopped Services

T-SQL – Scripting Stored Procedure to Create backup copy on same database

SQL – List Primary key and Concatenate composite Keys into a single row separed by comma

USING SQL & POWERSHELL – Different Methods to List Databases WITH Recovery Models

PowerShell- Monitoring Group Of Services on Group of Servers with Alternate Credential

PowerShell – Perfmon Counters into CSV File – Multiple remote servers

Introduction

Blog Stats

Prashanth Jayaram

Verified Services

Top 30 PowerShell bloggers of 2018

My Blog is ranked amongst the Top 50 SQL blogs worldwide

DZone MVB

Microsoft

Subscribe to Blog via Email

Archives

Top Posts & Pages

Categories

Recent Posts

PowershellSQL

Blog Stats

For more Information refer Technet Article

Introduction

Objective

SP_SPACEUSED – DATABASE

SP_SPACEUSED – TABLE

Permission

SQL

Customized code for specific database

Capturing details in a permanent table of databases using DMV’s

SQL 2000

Conclusion

Reference

Share this:

Share this:

SP_SPACEUSED

Capturing details in a permanent table of all databases using DMV’s

Share this:

Share this:

Share this:

Share this:

Share this:

Share this:

Share this:

Introduction

Share this:

Blog Stats

Verified Services

Top 30 PowerShell bloggers of 2018

My Blog is ranked amongst the Top 50 SQL blogs worldwide

DZone MVB

Microsoft

Subscribe to Blog via Email

Archives

Top Posts & Pages

Categories

Recent Posts

PowershellSQL
